AHRI Number:201851576, 201851575, 201851581
The Daikin MXS Multi-Zone Series provides exceptional home comfort and energy savings. The inverter variable-speed compressor reduces energy usage by 30% or more and minimizes temperature fluctuations where the system is installed, and the system provides energy efficiency levels of up to 18.9 SEER.
This unit is ideal for any project where you want to save space while still providing exceptional comfort as you can connect two, three, or four indoor units to a single outdoor unit. The MXS Series is compatible with Emura, Vista, FTXS, FVXS, FDMQ, and FDXS/CDXS indoor units. It also carries an industry-leading 12 year limited warranty on parts if the unit is registered within 60 days of installation.
With ductless mini-split systems, each room can be controlled separately using wireless or wired remotes. Daikin systems support several types of indoor units, including floor mount, wall mount, recessed ceiling and concealed horizontal air handlers, allowing you to blend them in almost invisibly with your home's existing furnishings.

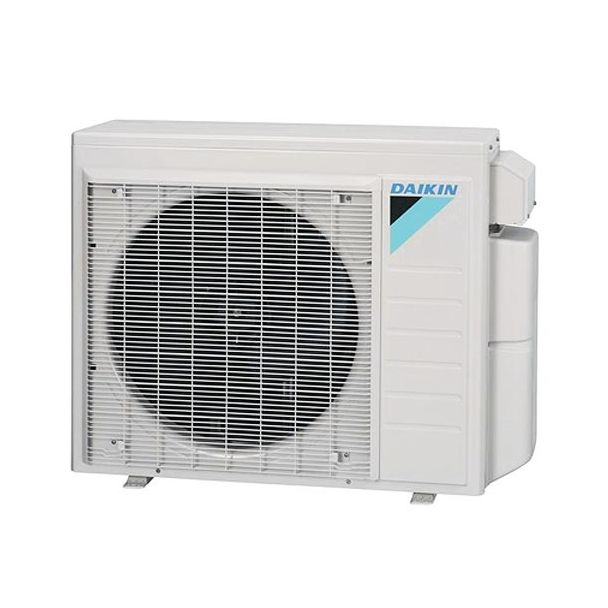

Features24,000 BTU 17.9 SEER Daikin Mini-Split MXS Multi Zone Heat Pump Condenser | |
---|---|
Refrigerant Charge | precharged for: 131' |
Weight (in lbs) | 137.000000 |
AHRI Certificate Number | 201851576, 201851575, 201851581 |
Brand/Manufacturer | Daikin |
Additional Information | Heat Pump |
Additional Information | Precharged for: 131' |
Additional Information | Maximum Line Set Length: 82' |
Additional Information | Maximum System Line Set Length: 230' |
Additional Information | Number of Zones: 2-3 |
HSPF | 12.5 |
Cooling BTU | 24000 |
Heating BTU | 24000 |
Decibel Level (dBA) | 52-54 |
Energy Star | Yes |
Refrigerant | R410A |
EER | 12.7 |
Compressor Type | Swing |
Liquid Line | 1/4" (3) |
Suction Line | 3/8" (1), 1/2" (2) |
Electrical | 208/230v 1 Phase 60 Hz |
Max Breaker Size | 25 Amps |
Min. Breaker Size | 21.9 Amps |
Amperage Requirement | 25 |
Min/Max Outdoor Temp for Heating | 5°F - 60°F |
Min/Max Outdoor Temp for Cooling | 14°F - 115°F |
Zone Compatibility | Multi Zone |
Height | 28-15/16" |
Width | 34-1/4" |
Depth | 12-5/8" |
Warranty | 12 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
