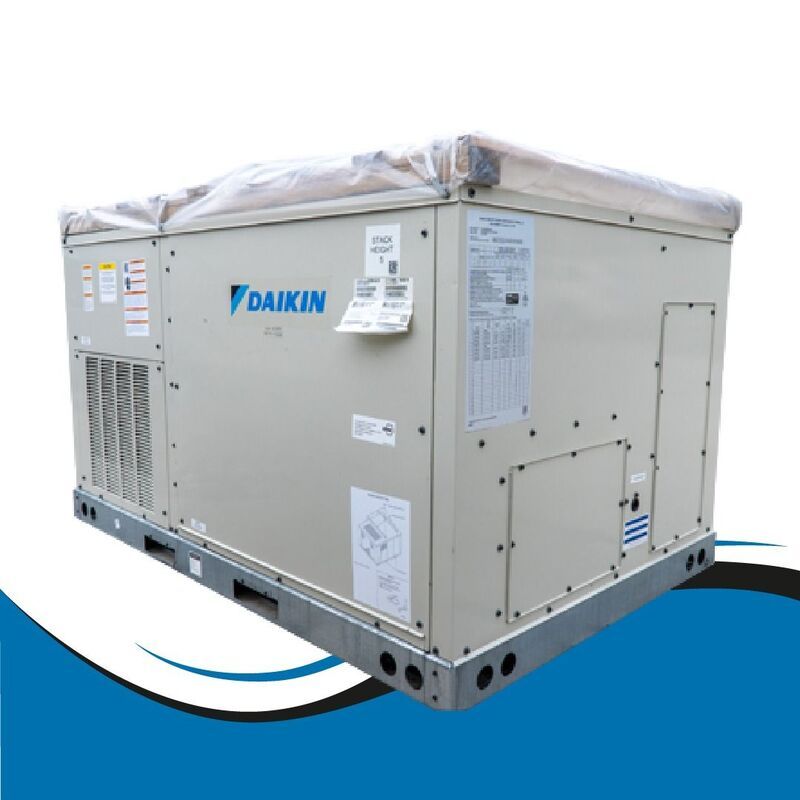

Daikin 3 Ton 14 SEER2 Light Commercial Packaged Air Conditioner | 460V 3 Phase - R32 - Single Stage

Efficient 3-Ton Air Conditioner Rooftop Unit for Light Commercial Applications with Direct-Drive Supply Fan

The Daikin DSC0364D000001S is a 3-ton commercial packaged air conditioner designed to provide reliable, efficient cooling for light commercial applications. Combining 35,000 BTU/h of cooling capacity with a direct-drive supply fan and flexible airflow configuration, this all-in-one rooftop system helps deliver reliable cooling while simplifying installation and preserving valuable indoor space.

Key Benefits

• 14 SEER2 / 12 EER2 Efficiency – Provides efficient cooling performance to help manage energy use during warm-weather operation.
• 35,000 BTU/h Cooling Capacity – Provides nominal cooling capacity for a range of light commercial applications.
• High-Performance Scroll Compressor – Provides reliable single-stage cooling performance for commercial comfort applications.
• Direct-Drive Supply Fan – Provides efficient and quiet air movement across a wide range of static pressure and airflow requirements.
• Packaged Rooftop Configuration – Combines major air conditioning components in one outdoor unit to simplify equipment placement and preserve valuable indoor space.
• Galvanized-Steel Cabinet – Heavy-gauge galvanized-steel construction with a UV-resistant powder-paint finish helps provide durability and weather resistance.
• Convertible Airflow Orientation – Supports downflow or horizontal applications for greater installation flexibility.
• Tool-Less Filter Access – Provides convenient access to the filter section to simplify routine maintenance.

R-32 Refrigerant – Primary Cooling Benefit

The integrated air conditioning system uses R-32 refrigerant and a high-performance scroll compressor to provide 35,000 BTU/h of nominal cooling capacity. The single-stage cooling system is designed to provide dependable comfort cooling for light commercial applications.

35,000 BTU/h Cooling Performance

The DSC0364D000001S provides 35,000 BTU/h of nominal cooling capacity with 14 SEER2 and 12 EER2 efficiency ratings. This helps provide dependable commercial cooling performance while supporting efficient operation during warm-weather conditions.

Efficient Direct-Drive Operation

With 14 SEER2 and 12 EER2 efficiency ratings and a direct-drive supply fan, this system is designed to provide efficient air movement and reliable cooling performance. The airfoil, single-width, single-inlet Class II construction supply fan with aluminum fan blades provides efficient and quiet operation across a wide range of static pressure and airflow requirements. The unit provides 1,160 CFM of nominal indoor airflow.

Packaged Rooftop Installation Design

The packaged rooftop configuration combines the compressor, condenser, evaporator coil, supply fan, controls, and other air distribution components into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. The DSC0364D000001S is designed for new construction and retrofit applications and is built to be a direct replacement for most rooftop units without the need for a curb adapter. The unit provides convertible airflow orientation for downflow or horizontal applications and measures 73.9 inches wide, 48.1 inches deep, and 38.8 inches high.

Controls & Comfort

The DSC0364D000001S includes a 24-volt electromechanical controls package for straightforward commercial system operation. Its single-stage cooling system and direct-drive supply fan provide dependable air distribution for connected ductwork, while the convertible airflow orientation accommodates either downflow or horizontal installation configurations. The unit is configured for 460-volt, three-phase electrical service.

Commercial Applications

The Daikin DSC0364D000001S is designed for comfort cooling applications in light commercial buildings and other commercial environments requiring packaged rooftop air conditioning. Its 35,000 BTU/h cooling capacity, direct-drive supply fan, compact packaged configuration, and flexible airflow orientation make it well suited for applications where reliable cooling, efficient operation, and installation flexibility are important.

Service & Maintenance

The DSC0364D000001S is designed for convenient service access, including tool-less filter access for routine filter maintenance. Screw-on style pressure switches provide ease of replacement, while copper tube/aluminum fin coils and a Micro Channel condenser support efficient heat transfer. The factory-wired and tested electrical system helps simplify installation and start-up.

Warranty

The Daikin DSC0364D000001S includes a 5-Year Parts Limited Warranty. Complete warranty details are available from the local Daikin distributor or manufacturer's representative and are subject to applicable warranty terms and conditions.

Recommended Accessories

• Roof Curb – Compatible Daikin roof curb selected according to the required installation configuration.
• Duct/Transition Accessories – Compatible duct connections and transitions selected according to the required horizontal or downflow installation.
• Ventilation/Economizer Accessories – Compatible options selected according to the application's ventilation requirements.

Reliable Commercial Cooling with the Daikin DSC0364D000001S

Experience reliable, efficient commercial cooling with the Daikin DSC0364D000001S. Combining R-32 refrigerant, high-performance scroll compressor technology, direct-drive air distribution, and flexible downflow or horizontal airflow configuration in one packaged rooftop air conditioning system.
