Daikin 3 Ton 14 SEER2 Light Commercial Packaged Heat Pump | 208/230V 1 Phase - R32 - Single Stage

Efficient 3-Ton Heat Pump for Light Commercial Applications with Direct-Drive Rooftop Design

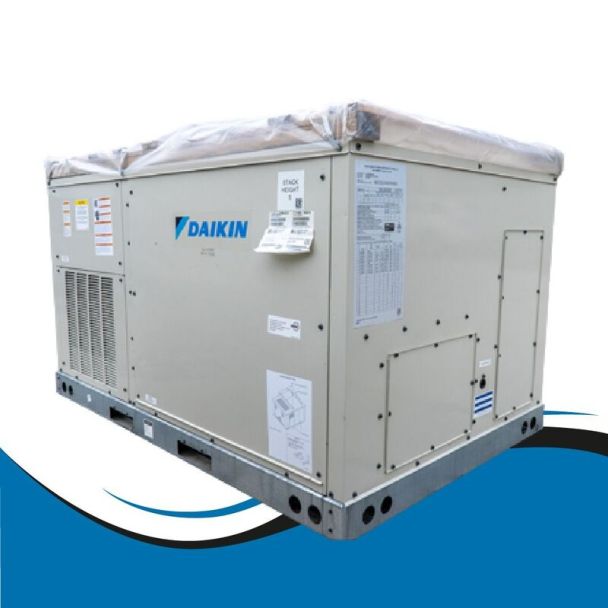

The Daikin DSH0361D000001S is a 3-ton commercial heat pump packaged unit designed to provide efficient heating and cooling for light commercial buildings. Combining 33,600 Btu/h of heating capacity at 47°F with 35,000 Btu/h of cooling capacity, this all-in-one rooftop system helps deliver reliable year-round comfort while simplifying installation and preserving valuable indoor space.

Key Benefits

• Energy-Efficient Operation – Provides 14 SEER2 and 12 EER2 efficiency to support efficient commercial cooling operation.
• Heat Pump Heating – Provides 33,600 Btu/h of heating capacity at 47°F to help maintain comfortable indoor temperatures during heating operation.
• Commercial Cooling Performance – Delivers 35,000 Btu/h of cooling capacity for dependable light commercial comfort.
• Installation Flexibility – Designed for fast and easy installation in both new construction and retrofit projects, with the ability to directly replace most rooftop units with a curb adapter.
• Rooftop/Space-Saving Design – Combines major heating and cooling components in one outdoor packaged unit, helping preserve valuable indoor space.
• Durable Cabinet Construction – Galvanized steel construction with a powder-paint finish provides increased corrosion resistance for outdoor operation.
• Direct-Drive Airflow – The direct-drive supply fan provides efficient and quiet operation with airflow control across a range of static pressure and airflow requirements.
• Service-Friendly Design – A weatherproof internal control box with easy access and a standard draw-through filter section help simplify maintenance and support long-lasting component operation.

Direct-Drive Heat Pump Heating

The integrated heat pump heating system provides 33,600 Btu/h of heating capacity at 47°F to help maintain comfortable indoor temperatures during colder-weather operation. The DSH series also offers a wide range of electric heat selections to effectively handle commercial comfort heating demands, from morning warm-up control to full heat.

Commercial Cooling Performance

The heat pump cooling system provides 35,000 Btu/h of cooling capacity with a rated efficiency of 14 SEER2 and 12 EER2. This helps support efficient cooling operation while maintaining comfortable indoor conditions during warm-weather operation.

R-32 Refrigerant Efficiency

With 14 SEER2 and 12 EER2 efficiency ratings and standard-efficiency R-32 refrigerant, this system is designed to support efficient operation in light commercial applications. The unit uses a high-performance, low-noise scroll compressor and large-face-area outdoor coils constructed with microchannel technology to support efficient heat transfer.

Packaged Rooftop Installation Design

The packaged rooftop configuration combines the heat pump system, compressor, coils, supply fan, controls, and filtration into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. Daikin packaged rooftop units are designed for fast and easy installation in both new construction and retrofit projects and are built to directly replace most rooftop units in the field without the need for a curb adapter. Units are completely wired and tested at the factory to support faster commissioning and startup.

Controls & Comfort

The unit is equipped with a large, well-organized, easy-to-use weatherproof internal control box with convenient access. The direct-drive supply fan provides airflow control for a range of static pressure and airflow requirements, while the DSH series supports compatible light commercial thermostat and control options for packaged equipment.

Light Commercial Applications

The Daikin DSH0361D000001S is designed for light commercial rooftop applications, including offices, retail facilities, restaurants, schools, hotels, and other commercial buildings requiring packaged heating and cooling. Its 3-ton capacity, rooftop configuration, direct-drive supply fan, and flexible installation design make it well suited for both new construction and retrofit applications.

Service & Maintenance

The standard draw-through filter section supports air quality and long-lasting component maintenance. The weatherproof internal control box provides convenient access to controls and wiring, while the direct-drive supply fan eliminates the maintenance associated with traditional belt-driven fan arrangements. The galvanized steel cabinet with powder-paint finish is designed to provide increased corrosion resistance for outdoor use.

Warranty

The Daikin DSH Series includes a 5-year limited parts warranty for light commercial applications. The applicable warranty terms and conditions should be reviewed for complete coverage details and requirements.

Recommended Accessories

• Roof Curb - DC3-6 - Provides a stable, elevated mounting base for commercial rooftop units while helping create a weatherproof roof connection.
• Custom Curb Adapter - Custom-Curb-3-6 - Allows a new rooftop HVAC unit to fit an existing roof curb without modifying the roof opening.
• Vertical Jade Economizer - 0270L01753 - Helps reduce cooling costs by using outdoor air for free cooling when conditions are suitable.
• Manual Air Damper - 0270L01166 - Allows manual control of outdoor air intake for commercial rooftop unit ventilation.

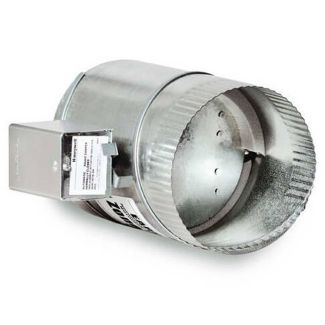

• Motorized Air Damper - 0270L01165 - Automatically controls outdoor air intake to provide ventilation for commercial rooftop units.
• Hail Guard - HAILGD036HE - Protects the outdoor coil from hail damage and impact from airborne debris.
• Heat Kits: EHXD-3S05A, , EHXD-3S10A, , EHXD-3S15A, , & EHXD-3S20A - Provides supplemental electric heating to increase comfort during colder conditions.
• System Smoke Detector - D4120W - Detects smoke in the HVAC system and helps trigger shutdown to limit smoke circulation throughout the building.

Efficient Commercial Comfort with the Daikin DSH0361D000001S

Experience reliable year-round comfort with the Daikin DSH0361D000001S. Combining a 33,600 Btu/h heat pump heating system and 35,000 Btu/h cooling system in one direct-drive packaged rooftop unit, it provides an efficient solution for light commercial heating and cooling while supporting flexible installation, quiet operation, and convenient service.
