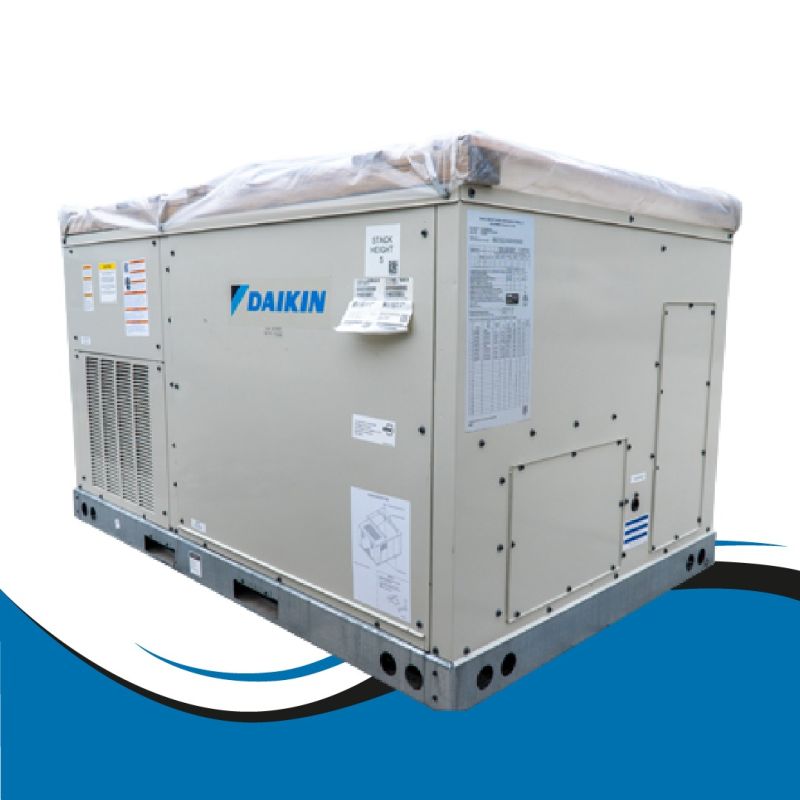

Daikin 3 Ton 14 SEER2 Light Commercial Packaged Heat Pump | 208/230V 3 Phase - R32 - Single Stage

Daikin 3 Ton 14 SEER2 Light Commercial Packaged Heat Pump | 208/230V 3 Phase - R32 - Single Stage
Image Daikin 3 Ton Light Commercial 14 SEER Packaged Heat Pump - 3 Phase Direct Driven 208/230V - DFH0363D000001S Image Image Image Image
Daikin 3 Ton 14 SEER2 Light Commercial Packaged Heat Pump | 208/230V 3 Phase - R32 - Single Stage
Be the first to review this product
ONLY 6 LEFT!
Free Shipping
By

Daikin

In stock
Model

DSH0363D000001S

ID

190732

$4,725.00

Product Features
  • Designed for Easy Retrofit Installs
  • Custom Roof Curbs designed to fit your current adapter!
  • Precharged with R32 Refrigerant
  • Single Stage Condenser
  • 208/230V 3 Phase
  • Up to a 5 Year Limited Warranty with Online Registration

Call 800-397-1392 for Best Prices!

The DSH light commercial heat pump packaged unit offers energy-efficient heating and cooling performance in one self-contained unit. This 14 SEER unit is suitable for ground-level or rooftop installations and horizontal or downflow applications. The heavy-gauge, galvanized steel cabinet with UV-resistant powder-paint finish withstands all weather conditions and time.

Standard Features

  • R32 chlorine-free refrigerant
  • Energy-efficient scroll compressor
  • Factory-Installed Filter Drier
  • Heater kits with single-point entry
  • 24 volt terminal strip
  • Convertible airflow orientation
  • Built in filter rack with standard 2" filters

Packaged Unit Buyers Guide

  • How packaged units work for residential and commercial use
  • The different types of packaged units
  • Figuring out the right size unit for your needs
  • The importance of a custom curb adapter
  • And much more!
More Information
Daikin 3 Ton 14 SEER2 Light Commercial Packaged Heat Pump | 208/230V 3 Phase - R32 - Single Stage
FeatureSpec
SKUDSH0363D000001S
Refrigerant ChargePre-charged
Weight (in lbs)605
Brand/ManufacturerDaikin
ReplacesDFH0363D000001S
UPC633190263575
Cooling BTU36,000 BTU
Heating BTU36,000 BTU
Drive TypeDirect
Maximum CFM1250
Decibel Level (dBA)78 decibels
RefrigerantR32
HSPF8
SEER1 (Efficiency)14
EER12
Condenser StagesSingle Stage
Compressor TypeScroll
Electrical208 / 230 V. 3 Phase 60 Hz
PhaseThree Phase
Max Breaker Size40 amps
Min. Breaker Size24.7 amps
Tonnage3 Ton
Height38.8"
Width73.9"
Depth48.2"
Warranty5 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:Daikin 3 Ton 14 SEER2 Light Commercial Packaged Heat Pump | 208/230V 3 Phase - R32 - Single Stage
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
How to Choose the Right Commercial Packaged Unit for Your Building - Video
Commercial packaged units are all-in-one HVAC systems designed for efficient cooling and heating in offices, retail, and light commercial spaces. Choose from packaged ACs, heat pumps, or gas packs based on your climate, with sizes from 3 to 25 tons and multiple voltage options. Proper sizing ensures comfort, efficiency, and long-term reliability—check your current unit’s ID tag or consult a pro for new installations
