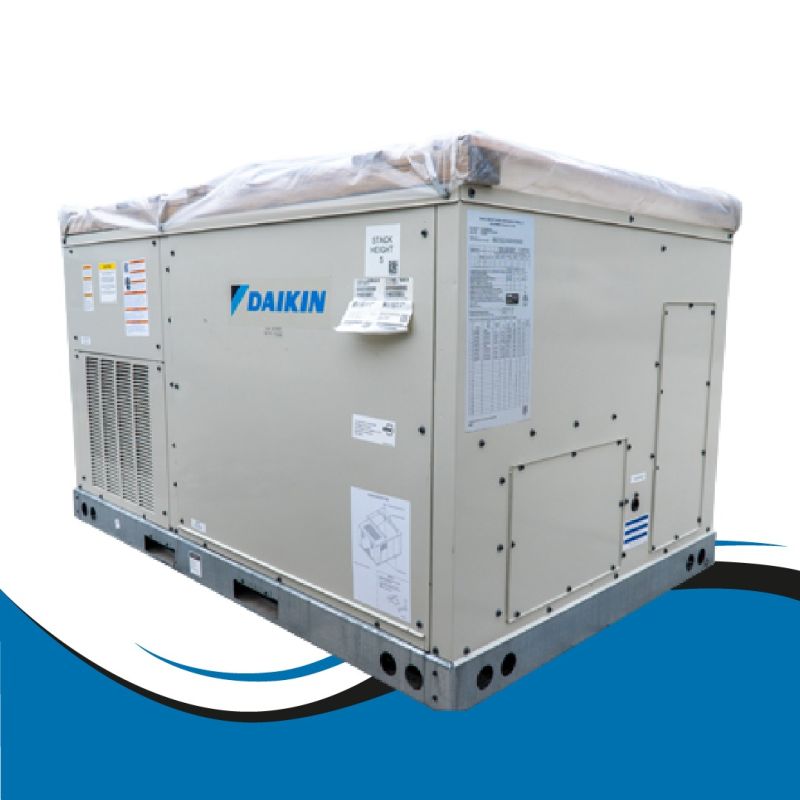

The Daikin DSG0484DH00001S is a 4-ton commercial gas/electric packaged rooftop unit designed to provide reliable year-round heating and cooling for light commercial buildings. Combining 115,000 BTU/h high-stage gas heating input with 46,000 BTU/h of cooling capacity, this all-in-one rooftop system helps deliver dependable comfort while simplifying installation and preserving valuable indoor space.
The integrated gas furnace provides 115,000 BTU/h of high-stage heating input and 92,000 BTU/h of high-stage heating output, with 86,300 BTU/h low-stage input and 69,000 BTU/h low-stage output. Two-stage heating operation helps the unit adjust heating output to changing comfort requirements. The heating section uses five burners and a tubular heat exchanger, with a high-stage temperature-rise range of 30–60°F and a low-stage temperature-rise range of 25–55°F.
The single-stage scroll compressor provides 46,000 BTU/h of nominal cooling capacity with 13.7 SEER2 and 11.8 EER2 efficiency ratings. The system uses R-32 refrigerant and a microchannel condenser heat exchanger to support efficient cooling operation. This combination helps provide dependable cooling performance for light commercial spaces during warm-weather operation.
With a 13.7 SEER2 and 11.8 EER2 cooling efficiency rating, the DSG0484DH00001S is designed to provide dependable commercial cooling performance while supporting efficient operation. The direct-drive indoor blower provides a nominal 1,600 CFM airflow capacity, uses a 1.2 HP motor, and is rated for up to 1,500 RPM. The single-stage scroll compressor provides reliable cooling operation.
The packaged rooftop configuration combines the gas furnace, compressor, coils, indoor blower, and controls into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. Daikin packaged units are designed with fast and easy installation in mind and are suitable for both new construction and retrofit projects. The DSG0484DH00001S uses a 460-3-60 electrical configuration and measures 74 inches wide by 48 5/8 inches deep by 39 7/8 inches high, with an overall height of 76 inches. The unit has an operating weight of 552 pounds and a shipping weight of 622 pounds.
The DSG0484DH00001S uses a two-stage gas valve and direct-drive indoor blower to provide controlled heating and airflow operation. The unit includes factory-installed electrical controls and is completely wired and tested at the factory to help support reliable commissioning and start-up. Its rooftop packaged configuration provides heating and cooling from a single outdoor system.
The Daikin DSG0484DH00001S is designed for light commercial rooftop applications where dependable gas heating and electric cooling are required from a single packaged system. Its packaged rooftop configuration, two-stage gas heating, direct-drive indoor blower, and retrofit-friendly design make it well suited for applications such as retail spaces, offices, restaurants, schools, warehouses, and other light commercial buildings.
The DSG0484DH00001S is designed with service accessibility in mind, including an accessible filter section using two standard 20 x 25 x 2-inch filters. The direct-drive indoor blower eliminates belt and pulley maintenance associated with belt-driven systems. Factory wiring and testing help support commissioning and start-up, while high- and low-pressure switches provide protection for the refrigeration system.
The Daikin DSG0484DH00001S includes a 20-year heat exchanger limited warranty and a 5-year parts limited warranty. Complete warranty terms and conditions are subject to the applicable Daikin warranty documentation.
Experience reliable year-round commercial comfort with the Daikin DSG0484DH00001S. Combining two-stage gas heating and efficient 46,000 BTU/h electric cooling in one direct-drive packaged rooftop system, this 4-ton unit provides a practical, space-saving solution for light commercial applications.
