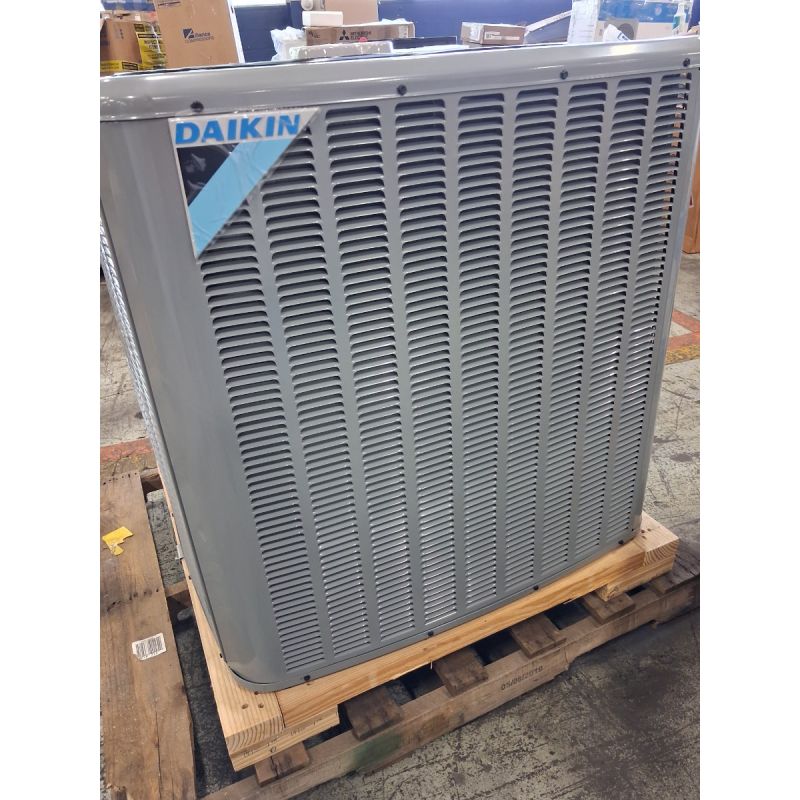

Daikin 4 Ton 14.3 SEER2 Commercial Heat Pump Condenser - 208/230V 3 Phase - R32 - Scratch & Dent – Minimal Damage

Efficient 4-Ton Commercial Split Heat Pump for Light Commercial Applications with R-32 Refrigerant

The Daikin DH4SEA4830 is a 4-ton commercial split heat pump system designed to provide reliable year-round heating and cooling for light commercial applications. Combining the 48,000 BTU/h DH4SEA4830 outdoor heat pump unit with a compatible indoor coil or air handler, this split system helps deliver dependable comfort while providing flexible equipment placement and ducted installation options.

Key Benefits

• 14.3 SEER2 Efficiency – Provides efficient seasonal cooling performance to help manage energy use during commercial operation.
• 7.8 HSPF2 Heating Efficiency – Provides efficient heat pump heating performance during the heating season.
• 48,000 BTU/h Cooling Capacity – Provides nominal 4-ton cooling capacity for commercial comfort applications.
• Single-Stage Copeland Scroll Compressor – Provides reliable compressor operation for consistent heating and cooling performance.
• R-32 Refrigerant – Uses R-32 refrigerant in a purpose-designed commercial heat pump platform.
• Flexible Split System Installation – Separates the outdoor heat pump from the indoor coil or air handler, providing flexibility for equipment placement and ducted applications.
• Durable Outdoor Cabinet – Features a Nickel Gray powder-paint finish and a steel louvered coil guard for added protection in outdoor commercial environments.
• Advanced Compressor Protection – Copeland CoreSense technology, high- and low-pressure switches, a factory-installed suction line accumulator, and compressor crankcase heater help support dependable operation.
• Service-Friendly Design – Service valves with easy-access gauge ports, top and side maintenance access, and single-panel access to controls simplify service and maintenance.

Reliable Heat Pump Heating Performance

The DH4SEA4830 provides a rated heating capacity of 48,000 BTU/h at 47°F outdoor ambient temperature and is designed to operate in heating mode from -20°F to 70°F outdoor ambient temperature. The system uses a single-stage Copeland scroll compressor with advanced CoreSense technology. Time-delay technology helps provide quiet, reliable defrost operation, while the factory-installed compressor crankcase heater and suction line accumulator support dependable heat pump operation.

48,000 BTU/h Cooling Performance

The DH4SEA4830 provides a nominal cooling capacity of 48,000 BTU/h. The AHRI-rated high sales volume tested combination provides a rated cooling capacity of 46,090 BTU/h with a 12.50 EER2 and 14.30 SEER2. The outdoor unit is designed for a cooling operating range of 55°F to 125°F outdoor ambient temperature, supporting dependable cooling operation across a broad range of commercial conditions.

14.3 SEER2 & 7.8 HSPF2 Efficiency

With up to 14.3 SEER2 cooling efficiency and 7.8 HSPF2 heating efficiency, the DH4SEA4830 is designed to provide efficient seasonal heating and cooling performance. The system combines a high-efficiency Copeland scroll compressor with an enhanced aluminum fin coil using 7mm diameter copper tubes, a factory-installed bi-flow liquid line filter drier, a factory-installed suction line accumulator, and a high-capacity muffler. The unit is AHRI Certified and ETL Listed.

Split System Installation Design

The split system configuration separates the DH4SEA4830 outdoor heat pump from the compatible indoor coil or air handler, providing flexibility for equipment placement and ducted commercial installation. The outdoor unit operates on 208/230V, 60 Hz, three-phase power with a minimum circuit ampacity of 16.5 amps and maximum overcurrent protection of 25 amps. It uses a 3/8-inch liquid line and 1-1/8-inch suction line, is factory charged for 15 feet of 3/8-inch liquid tubing, and supports a maximum total piping length of 200 feet and maximum vertical piping length of 79 feet. The outdoor unit measures 36.6 inches high by 35.5 inches wide by 35.5 inches deep and weighs 263 pounds net.

Controls & Comfort

The DH4SEA4830 is designed for conventional heat pump control with a compatible indoor coil or air handler and thermostat. Its single-stage compressor provides straightforward heating and cooling operation, while time-delay technology supports quiet and reliable defrost operation. The system's conventional control configuration allows the outdoor heat pump to operate with compatible indoor equipment and field-installed controls.

Commercial Applications

The Daikin DH4SEA4830 is designed for 4-ton, three-phase commercial split heat pump applications requiring 208/230V electrical service and ducted indoor air distribution. Its flexible split configuration, wide heating operating range, durable outdoor cabinet, and service-access features make it suitable for light commercial comfort applications where dependable heating and cooling performance are required.

Service & Maintenance

The DH4SEA4830 features top and side maintenance access and single-panel access to the controls with space provided for field-installed accessories. Brass service valves with sweat connections provide easy access to gauge ports. The refrigeration system includes a factory-installed bi-flow liquid line filter drier, suction line accumulator, compressor crankcase heater, and high-capacity muffler. High- and low-pressure switches provide additional system protection, while extended-life capacitors and a fully enclosed contactor with lug connections support reliable operation.

Warranty

The Daikin DH4SEA4830 includes a 5-Year Parts Limited Warranty. To receive the 5-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. The duration of warranty coverage may depend on the state or province where the product is installed. Some states and provinces do not allow warranty coverage to be conditioned on registration. Other limitations and exclusions apply; refer to the complete Daikin warranty documentation for applicable terms and conditions.

Recommended Accessories

• Anchor Bracket Kit – Provides brackets for anchoring the outdoor unit to a mounting pad; the kit contains 20 brackets, with four brackets required to anchor the unit to the pad.
• Anti-Short Cycle Kit – Provides an accessory option for applications requiring anti-short-cycle protection.
• Hard-Start Kit – Provides a hard-start accessory option compatible with the DH4SEA4830.
• Freeze Protection Kit – Provides freeze protection for applicable indoor coil installations.
• Liquid Line Solenoid Kit – Provides a liquid line solenoid accessory option for compatible system installations.
• Low-Ambient Kit – Provides a low-ambient accessory option for applications requiring extended cooling operation.
• Outdoor Thermostat with Lockout Stat – Required for heat pump applications where ambient temperatures fall below 0°F with 50% or higher relative humidity.

Efficient Commercial Heating & Cooling with the Daikin DH4SEA4830

Experience reliable year-round commercial comfort with the Daikin DH4SEA4830. Combining 48,000 BTU/h nominal heat pump capacity, up to 14.3 SEER2 cooling efficiency, 7.8 HSPF2 heating efficiency, and durable R-32 system construction in one 4-ton commercial split heat pump system.
