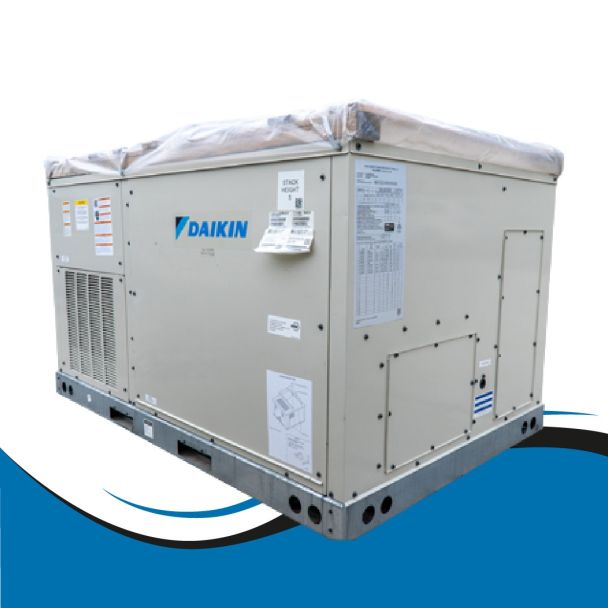

The Daikin DSG0481DL00001S is a 4-ton commercial gas/electric packaged rooftop unit designed to provide reliable year-round heating and cooling for light commercial buildings. Combining 90,000 BTU/h gas heating input with 46,000 BTU/h of cooling capacity, this all-in-one rooftop system helps deliver dependable comfort while simplifying installation and preserving valuable indoor space.
The integrated gas furnace provides 90,000 BTU/h of high-stage heating input and 72,900 BTU/h of high-stage heating output to help maintain comfortable indoor temperatures during colder weather. The DSG0481DL00001S uses a tubular heat exchanger and is rated at 81% AFUE. The heating section is designed to provide dependable gas heating performance in a self-contained rooftop configuration.
The single-stage scroll compressor provides 46,000 BTU/h of nominal cooling capacity with 13.7 SEER2 and 11.8 EER2 efficiency ratings. The system uses R-32 refrigerant and a microchannel outdoor condenser coil to support efficient cooling operation. This combination helps provide dependable cooling performance for light commercial spaces during warm-weather operation.
With a 13.7 SEER2 and 11.8 EER2 cooling efficiency rating, the DSG0481DL00001S is designed to provide dependable commercial cooling performance while supporting efficient operation. The direct-drive indoor blower uses a 1.0 HP motor and provides a nominal 1,600 CFM airflow capacity, while the scroll compressor delivers reliable single-stage cooling operation.
The packaged rooftop configuration combines the gas furnace, compressor, coils, indoor blower, and controls into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. Daikin packaged rooftop units are designed for new construction and retrofit projects and can serve as direct replacements for most rooftop units without requiring a curb adapter. The airflow configuration is convertible for downflow or horizontal applications, providing installation flexibility for different building layouts. The DSG0481DL00001S measures approximately 74.1 inches wide by 48.3 inches deep by 38.8 inches high and has an operating weight of 537 pounds and a shipping weight of 607 pounds.
The DSG0481DL00001S uses a 24-volt terminal strip and direct-drive indoor blower for straightforward operation and airflow management. The unit is equipped with an accessible weatherproof internal control box, while its convertible airflow configuration allows the equipment to accommodate different duct and building layouts.
The Daikin DSG0481DL00001S is designed for light commercial rooftop applications where dependable gas heating and electric cooling are required from a single packaged system. Its compact rooftop configuration, convertible airflow orientation, direct-drive indoor blower, and retrofit-friendly design make it well suited for applications such as retail spaces, offices, restaurants, schools, warehouses, and other light commercial buildings.
The DSG0481DL00001S is designed with service accessibility in mind, including a built-in filter rack with standard 2-inch filters and an accessible weatherproof internal control box. The unit also includes a high-capacity steel-cased filter drier, high- and low-pressure switches, and factory wiring and testing to support commissioning and service. The direct-drive blower eliminates belt and pulley maintenance associated with belt-driven fan systems.
The Daikin DSG0481DL00001S includes a 20-year heat exchanger limited warranty and a 5-year parts limited warranty. Complete warranty terms and conditions are subject to the applicable Daikin warranty documentation.
Experience reliable year-round commercial comfort with the Daikin DSG0481DL00001S. Combining 81% AFUE gas heating and 13.7 SEER2 electric cooling in one direct-drive packaged rooftop system, this 4-ton unit provides a practical, space-saving solution for light commercial applications.
