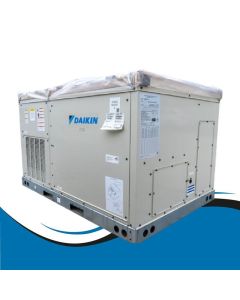

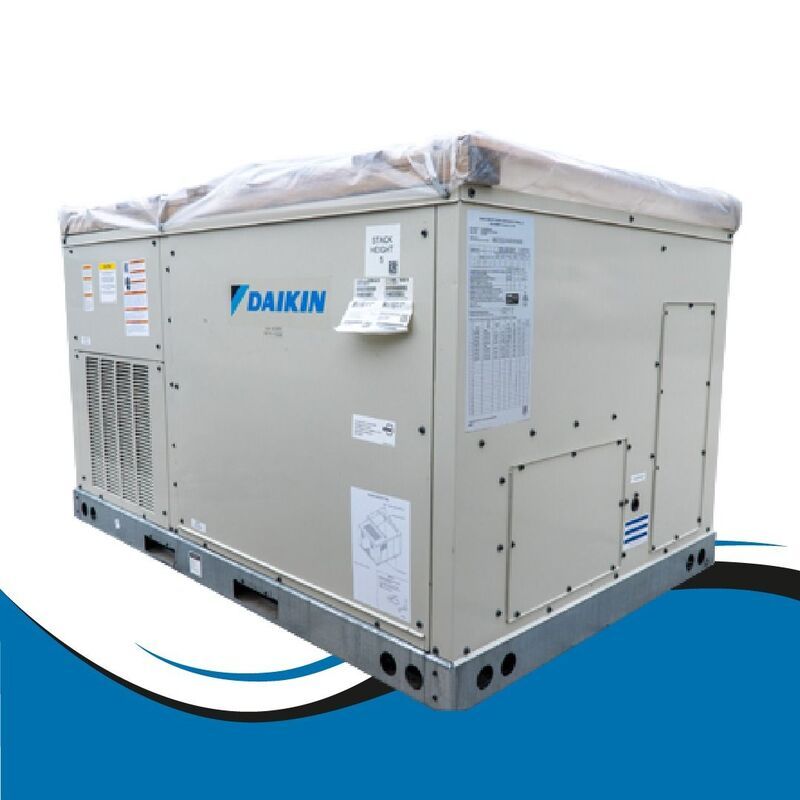

The Daikin DSC0481D000001S is a 4-ton commercial packaged air conditioner designed to provide reliable, efficient cooling for light commercial applications. Combining 46,000 BTU/h of cooling capacity with a direct-drive supply fan, R-32 chlorine-free refrigerant, and flexible airflow configuration, this all-in-one rooftop system helps deliver dependable cooling while simplifying installation and preserving valuable indoor space.
The integrated air conditioning system uses R-32 refrigerant and a high-efficiency scroll compressor to provide 46,000 BTU/h of nominal cooling capacity. The refrigeration system is designed to provide dependable comfort cooling for light commercial applications while using a refrigerant with zero ozone depletion potential.
The DSC0481D000001S provides 46,000 BTU/h of nominal cooling capacity with 13.7 SEER2 and 11.8 EER2 efficiency ratings. This combination helps provide dependable commercial cooling performance while supporting efficient operation during warm-weather conditions.
With 13.7 SEER2 and 11.8 EER2 efficiency ratings and a direct-drive evaporator motor, this system is designed to provide efficient air movement and reliable cooling performance. The direct-drive indoor blower has a 12-inch by 11-inch wheel and provides 1,600 CFM of nominal indoor airflow with a maximum external static pressure of 0.8 in. W.C.
The packaged rooftop configuration combines the compressor, condenser, evaporator coil, supply fan, controls, and other air distribution components into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. The DSC0481D000001S is designed for new construction and retrofit applications and is built to be a direct replacement for most rooftop units without the need for a curb adapter. The convertible airflow orientation allows the unit to serve downflow or horizontal applications. The cabinet measures 74 inches wide by 48 5/16 inches deep by 39 7/8 inches high.
The DSC0481D000001S includes a 24-volt electromechanical controls package for straightforward commercial system operation. Its direct-drive supply fan provides dependable air distribution for connected ductwork, while the convertible airflow orientation accommodates either downflow or horizontal installation configurations. The unit is configured for 208/230-volt, single-phase electrical service.
The Daikin DSC0481D000001S is designed for comfort cooling applications in light commercial buildings and other commercial environments requiring packaged rooftop air conditioning. Its 46,000 BTU/h cooling capacity, direct-drive supply fan, R-32 refrigerant, durable cabinet construction, and flexible airflow orientation make it well suited for applications where reliable cooling, efficient operation, and installation flexibility are important.
The DSC0481D000001S is designed for convenient service access, including tool-less filter access for routine filter maintenance. Screw-on style pressure switches provide ease of replacement, while the factory-wired and tested electrical system helps simplify installation and start-up. The unit uses copper tube/aluminum fin evaporator coils and a Micro Channel condenser for efficient heat transfer.
The Daikin DSC0481D000001S includes a 5-Year Parts Limited Warranty. Complete warranty details are available from the local Daikin distributor or manufacturer's representative and are subject to applicable warranty terms and conditions.
Experience reliable, efficient commercial cooling with the Daikin DSC0481D000001S. Combining R-32 refrigerant, high-efficiency scroll compressor technology, direct-drive air distribution, and flexible downflow or horizontal airflow configuration in one packaged rooftop air conditioning system.
