The Daikin RMXS Series 8-Zone Multi-Split system provides a flexible solution for your HVAC needs. You can connect up to eight indoor units to a single outdoor unit, which will reduce the amount of space you need for installation. The RMXS Series is compatible with three indoor unit types in a wide range of capacities, so you can tailor your system to your needs. The RXMS Series also features up to 18.8 SEER and reduces energy uses by 30% or more, lowering your overall energy bill, and it's backed by a 12 year limited warranty.
With ductless mini-split systems, each room can be controlled separately using wireless or wired remotes. The RMXS Series is compatible with Emura, Vista, FTXS, FVXS, FDMQ, and FDXS/CDXS indoor units, allowing you to blend them in almost invisibly with your home's existing furnishings.

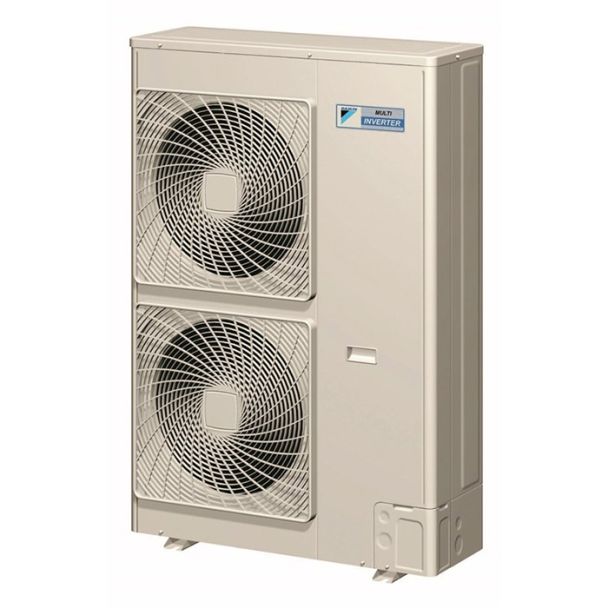

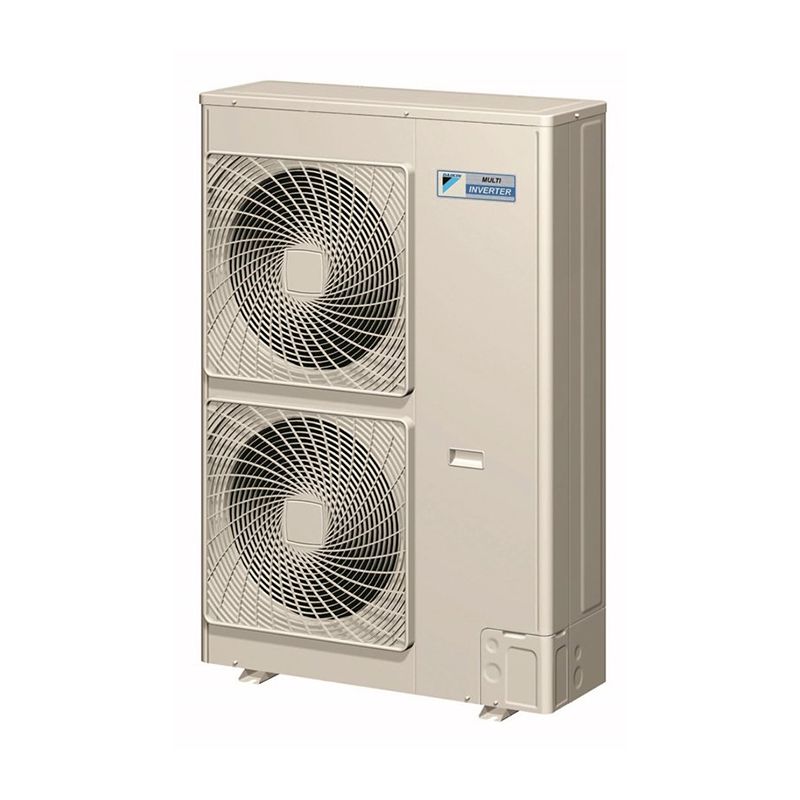

Features48,000 BTU 18.8 SEER Daikin Mini Split RMXS Multi Zone Heat Pump Condenser | |
---|---|
SKU | RMXS48LVJU |
Weight (in lbs) | 283.000000 |
Brand/Manufacturer | Daikin |
Additional Information | Heat Pump |
Additional Information | Charge: 8.8 lbs |
Additional Information | Maximum Line Set Length: 49' |
Additional Information | Maximum System Line Set Length: 442' |
Additional Information | Number of Zones: 2-8 |
HSPF | 11.3 |
Cooling BTU | 48000 |
Heating BTU | 54000 |
Decibel Level (dBA) | 57-58 |
Energy Star | No |
Refrigerant | R410A |
EER | 10.3 |
Compressor Type | Scroll |
Liquid Line | 3/8" (1) |
Suction Line | 3/4" (1) |
Electrical | 208/230v 1 Phase 60 Hz |
Max Breaker Size | 30 Amps |
Min. Breaker Size | 27 Amps |
Amperage Requirement | 30 |
Tonnage | 4 Ton |
BTU/Tonnage | 48,000 BTU/4 Ton |
Min/Max Outdoor Temp for Heating | 5°F - 60°F |
Min/Max Outdoor Temp for Cooling | 23°F - 115°F |
Zone Compatibility | Multi Zone |
Height | 52-15/16" |
Width | 35-7/16" |
Depth | 12-5/8" |
Warranty | 12 Years with Online Registration |
