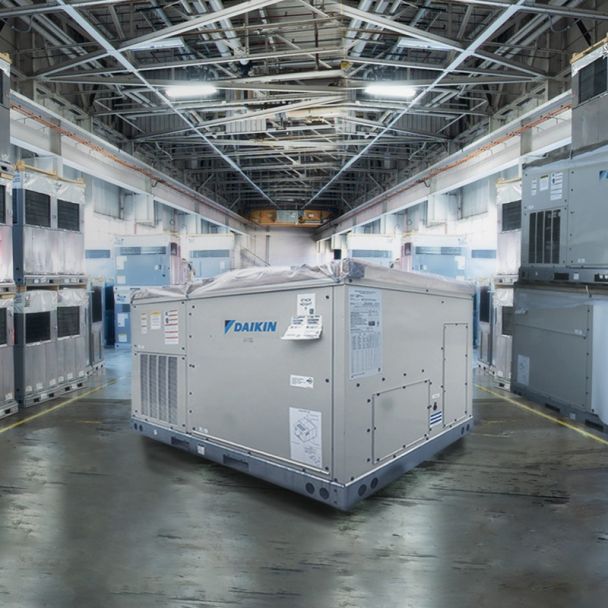

Daikin 5 Ton 140,000 BTU 13.7 SEER2 Commercial Gas Packaged Unit | 208/230V 3 Phase - R32 - Single Stage

Daikin 5 Ton 140,000 BTU 13.7 SEER2 Commercial Gas Packaged Unit | 208/230V 3 Phase - R32 - Single Stage
By

Daikin

In stock
Model

DSG0603DH00001S

ID

135251

Was $6,457.50 Your Low Price Special Price $5,166.00
ONLY 3 LEFT!
Free Shipping

Product Features
  • Designed for Easy Retrofit Installs
  • Custom Roof Curbs designed to fit your current adapter!
  • Precharged with R32 Refrigerant
  • Single Stage Condenser
  • 208/230V 3 Phase
  • Up to 20-Year Limited Warranty with Online Registration

Call 800-397-1392 for Best Prices!

The DSG Packaged Gas/Electric units are built to perform, with features and options that provide lower installation and operating costs, superior indoor air quality, quiet operation and longevity

Standard Features

  • High-efficiency scroll compressor
  • Copper tube/aluminum fin coils
  • High and low pressure switches
  • High-capacity, steel-cased filter drier
  • 24 volt terminal strip
  • Convertible airflow orientation
  • Built in filter rack with standard 2" filters
Please note that this Package Unit cannot be installed in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. In these counties you are required to purchase an Ultra-Low NOx system. If you have any questions, please contact us.

Packaged Unit Buyers Guide

  • How packaged units work for residential and commercial use
  • The different types of packaged units
  • Figuring out the right size unit for your needs
  • The importance of a custom curb adapter
  • And much more!
More Information
Daikin 5 Ton 140,000 BTU 13.7 SEER2 Commercial Gas Packaged Unit | 208/230V 3 Phase - R32 - Single Stage
FeatureSpec
SKUDSG0603DH00001S
Refrigerant ChargePre-charged
Weight (in lbs)554
Brand/ManufacturerDaikin
ReplacesDFG0603DH00001S
UPC634707281952
Additional InformationUses two 20" x 25" x 2"
Cooling BTU57,500 BTU
Heating BTU140,000
Drive TypeDirect
Maximum CFM1860
Decibel Level (dBA)78.3 decibels
Motor RPM1200
HorsepowerIndoor Horsepower: 1.0, Outdoor Horsepower: 1/3
RefrigerantR32
SEER2 (Efficiency)13.7
EER211.8
Condenser StagesSingle Stage
Compressor TypeScroll
Electrical208 / 230 V. 3 Phase 60 Hz
PhaseThree Phase
Max Breaker Size40 amps
Min. Breaker Size28.1 amps
Tonnage5 Ton
Burner StagesModulating
Height48 5/16"
Width73 3/8"
Depth48 5/16"
Warranty20 Years Heat Exchanger, 5 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
Top reviews
  1. Great Product and Service
    Quality
    100%
    Service
    100%
    Price
    100%
    Great customer service, easy ordering and friendly driver for our delivery .

    Review by

    Posted on

Customer Questions
How do I register my Daikin Package Unit for its warranty?
Hello, to register your Daikin Package Rooftop unit for its warranty, please contact the HVAC Technician/Contractor that installed your system or check out the following link for more information about your warranty: Click Here
What is a Commercial Gas Packaged Unit?
A commercial packaged gas/electric unit is an all-in-one HVAC system that contains the air conditioner, gas furnace, evaporator coil, condenser, compressor, and controls inside a single cabinet. Unlike split systems, everything is housed in one outdoor unit, typically installed on a roof or concrete pad. This simplifies installation and frees up indoor space.
What types of buildings use Rooftop Gas Packaged Units?
Commercial Gas Package Units are commonly used for: Retail Stores Restaurants Churches Warehouses Office Buildings Schools Light Industrial Facilities Most Gas Package Units can be used on a rooftop or at ground level
How does a Commercial Gas Packaged Unit work?
Commercial Gas Packaged Unit uses two separate heating and cooling methods: Cooling Mode The electric air conditioning system removes heat from the building. A scroll compressor circulates refrigerant to provide cooling. Heating Mode Natural gas is burned inside the furnace section. Heated air is distributed through the ductwork. Your Commercial Gas Packaged Unit will automatically switch between heating and cooling based on thermostat demand
What is the life expectancy of the typical Commercial Gas Packaged Rooftop Unit?
The typical life expectancy of a Commercial Gas Rooftop Packaged Unit is approximately 15–20 years with proper installation and routine preventative maintenance. Factors such as operating hours, weather exposure, maintenance frequency, and overall operating conditions can affect equipment longevity. Regular filter changes, coil cleaning, inspections, and servicing of burners and heat exchangers can help extend the unit's lifespan.
Can a Commercial Gas Packaged Unit provide suitable year-round operation?
Yes. A commercial gas packaged unit provides year-round heating and cooling by combining a gas furnace for heating with an electric air conditioner for cooling in one self-contained system. During colder months, the gas furnace provides reliable heat, while the cooling components operate during warmer months to maintain comfortable indoor temperatures. This makes gas packaged units a versatile HVAC solution for commercial buildings that require heating and cooling throughout the year.
What does BTU and Tonnage Mean?
BTU (British Thermal Unit) measures the amount of heating or cooling energy a commercial rooftop packaged unit can produce per hour, while tonnage measures the unit's nominal cooling capacity. One ton of cooling equals 12,000 BTU/h, meaning a 10-ton commercial rooftop unit provides approximately 120,000 BTU/h of cooling capacity. Both measurements help contractors and customers determine the appropriate HVAC system size and output for a building's heating and cooling requirements.
What accessories or additional components are needed to install a Commercial Rooftop Units?
Installing a commercial rooftop unit may require several accessories and additional components depending on the building's existing setup and installation requirements. Common components include a roof curb or curb adapter, ductwork transitions, electrical disconnects, thermostats, economizers, dampers, and supplemental heating kits when applicable. Additional accessories, such as hail guards, smoke detectors, and condensate drain components, may also be recommended based on the application. Always verify equipment compatibility and manufacturer installation requirements before purchasing additional components.
Can I replace my existing Commercial Rooftop Unit without replacing the ductwork?
Yes. In many cases, an existing commercial rooftop unit can be replaced without replacing the current ductwork, provided the duct system is in good condition and compatible with the new equipment. Before installation, an HVAC professional should evaluate the ductwork, airflow requirements, unit capacity, and existing connections to ensure proper system performance. Additional modifications may be necessary if the new unit has different dimensions, airflow configurations, or connection requirements.
What is the difference between EER and IEER ratings on Commercial Rooftop Units?
EER (Energy Efficiency Ratio) and IEER (Integrated Energy Efficiency Ratio) are ratings used to measure the cooling efficiency of commercial HVAC equipment. EER measures how efficiently a unit operates under specific full-load outdoor temperature and operating conditions, while IEER evaluates efficiency across multiple operating conditions, including part-load performance. IEER provides a broader picture of how efficiently a commercial rooftop unit operates under varying cooling demands throughout the year. Higher EER and IEER ratings generally indicate greater energy efficiency and potentially lower operating costs.
Can a Commercial Rooftop Unit be installed on the ground instead of the roof?
Yes. Some commercial packaged rooftop units can be installed at ground level when the equipment is designed for horizontal airflow rather than vertical rooftop discharge. These horizontal-flow units require adequate space, a stable mounting surface, proper ductwork connections, and sufficient clearance for airflow and servicing. Always verify the manufacturer's installation requirements and local building codes before selecting a ground-level installation.
Do Commercial Rooftop Units require professional installation?
Yes. Commercial rooftop units should be installed by qualified HVAC professionals to ensure proper equipment placement, electrical connections, ductwork compatibility, refrigerant handling, and system performance. Professional installation helps ensure the unit operates safely and efficiently while meeting applicable building codes, manufacturer requirements, and local regulations.
