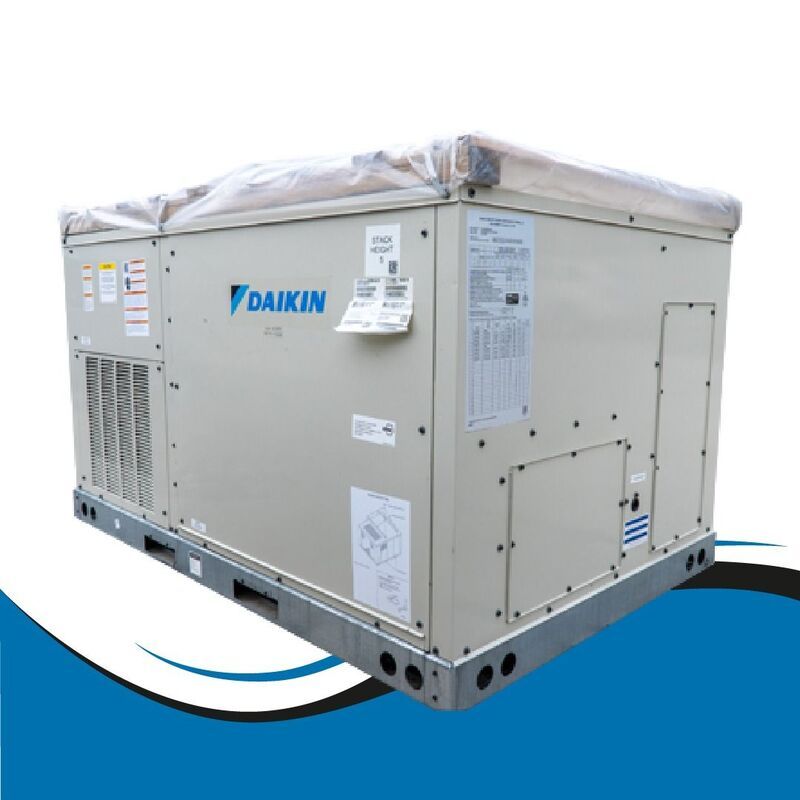

Daikin 5 Ton 130, 000 BTU 13.4 SEER2 Commercial Gas Packaged Unit | 208/230V 1Phase - R32 - Single Stage

Reliable High-Capacity Heating and Cooling Gas/Electric Packaged Rooftop Unit for Light Commercial Applications

The Daikin DSG0601DH00001S is a 5-ton commercial gas/electric packaged rooftop unit designed to provide reliable year-round heating and cooling for light commercial buildings. Combining 140,000 BTU/h high-stage gas heating input with 57,500 BTU/h of cooling capacity, this all-in-one rooftop system helps deliver dependable comfort while simplifying installation and preserving valuable indoor space.

Key Benefits

• 13.7 SEER2 / 11.8 EER2 Cooling Efficiency – Helps provide efficient cooling performance for light commercial comfort applications.
• High-Capacity Gas Heating – Provides 140,000 BTU/h of high-stage heating input and 113,400 BTU/h of heating output for dependable cold-weather comfort.
• High-Performance Scroll Compressor – Provides reliable cooling operation with a single-stage scroll compressor.
• Direct-Drive Indoor Fan – Provides dependable airflow without belt-driven fan maintenance.
• Packaged Rooftop Configuration – Combines heating and cooling components in one outdoor unit to help preserve valuable indoor space.
• Galvanized Steel Cabinet – High-quality galvanized steel with a powder-paint finish provides corrosion resistance for outdoor rooftop installation.
• Factory-Wired and Tested – Complete factory wiring and testing help support faster commissioning and start-up.
• Standard 2-Inch Filtration – The draw-through filter section uses two 20 x 25 x 2-inch filters to help support air quality and long-lasting component maintenance.

High-Capacity 81% AFUE Gas Heating

The integrated gas furnace provides 140,000 BTU/h of high-stage heating input and 113,400 BTU/h of high-stage heating output to help maintain comfortable indoor temperatures during colder weather. The DSG0601DH00001S uses six burners and a tubular heat exchanger and is rated at 81% AFUE. The high-stage temperature-rise range is 35–65°F, providing dependable gas heating performance in a self-contained rooftop configuration.

57,500 BTU/h Cooling Performance

The single-stage scroll compressor provides 57,500 BTU/h of nominal cooling capacity with 13.7 SEER2 and 11.8 EER2 efficiency ratings. The system uses R-32 refrigerant and a microchannel condenser heat exchanger to support efficient cooling operation. This combination helps provide dependable cooling performance for light commercial spaces during warm-weather operation.

Efficient Performance with Direct-Drive Operation

With a 13.7 SEER2 and 11.8 EER2 cooling efficiency rating, the DSG0601DH00001S is designed to provide dependable commercial cooling performance while supporting efficient operation. The direct-drive indoor fan provides a nominal 1,860 CFM airflow capacity, uses a 1.0 HP motor, and operates at up to 1,200 RPM. The single-stage scroll compressor provides reliable cooling operation.

Packaged Rooftop Design for Flexible Installation

The packaged rooftop configuration combines the gas furnace, compressor, coils, indoor fan, and controls into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. Daikin packaged rooftop units are designed with fast and easy installation in mind

Commercial Applications

The Daikin DSG0601DH00001S is designed for light commercial rooftop applications where dependable gas heating and electric cooling are required from a single packaged system. Its packaged rooftop configuration, direct-drive supply fan, factory-tested electrical system, and retrofit-friendly design make it well suited for applications such as retail spaces, offices, restaurants, schools, warehouses, and other light commercial buildings.

Service & Maintenance

The DSG0601DH00001S is designed with service accessibility in mind, including a weatherproof internal control box with convenient access and a draw-through filter section. The unit includes high- and low-pressure switches and factory wiring and testing to help support commissioning and start-up. The direct-drive indoor fan also eliminates belt and pulley maintenance associated with belt-driven blower systems.

Warranty

The Daikin DSG0601DH00001S includes a 20-year heat exchanger limited warranty and a 5-year parts limited warranty. Complete warranty terms and conditions are subject to the applicable Daikin warranty documentation.

Recommended Accessories

• Compatible Daikin Roof Curb – DSG Series 3–6 Ton Accessory
• Outdoor Thermostat with Housing for Gas Models
• Compatible Downflow Square-to-Round Adapter – DSG Series Accessory
• Compatible Horizontal Square-to-Round Adapter – DSG Series Accessory
• Compatible Economizer – DSG Series 3–6 Ton Accessory

Reliable Year-Round Comfort with the Daikin DSG0601DH00001S

Experience reliable year-round commercial comfort with the Daikin DSG0601DH00001S. Combining two-stage gas heating and efficient 57,500 BTU/h electric cooling in one direct-drive packaged rooftop system, this 5-ton unit provides a practical, space-saving solution for light commercial applications.
