Daikin 6 Ton 16.7 IEER Light Commercial Packaged Heat Pump | 460V 3 Phase - R32 - Two Stage

Efficient Heat Pump Comfort for Light Commercial Buildings with R-32 Direct-Drive Performance

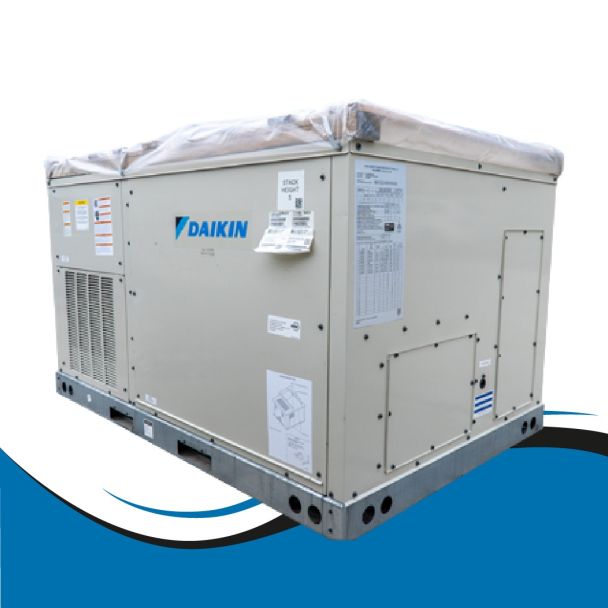

The Daikin DSH0724D000001S is a 6-ton commercial heat pump packaged unit designed to provide reliable year-round heating and cooling for light commercial applications. Combining 67,000 BTU/h of heat pump heating capacity at 47°F with 68,000 BTU/h of cooling capacity, this all-in-one rooftop system helps deliver dependable comfort while simplifying installation and preserving valuable indoor space.

Key Benefits

• 16.7 IEER / 11.3 EER Efficiency – Helps provide efficient cooling performance during both part-load and full-load commercial operation.
• Heat Pump Heating – Provides 67,000 BTU/h of heating capacity at 47°F with a COP of 3.4 at 47°F for dependable year-round comfort.
• 68,000 BTU/h Cooling Capacity – Provides reliable cooling performance for light commercial spaces.
• 460V Three-Phase Electrical Configuration – Provides a 460/3/60 electrical configuration for compatible commercial installations.
• Convertible Airflow Orientation – Supports downflow or horizontal applications for greater installation flexibility.
• R-32 Refrigerant – Uses R-32 refrigerant as part of the unit's standard-efficiency design.
• Direct-Drive Supply Fan – Provides efficient and quiet operation across a wide range of static pressure and airflow requirements.
• Service-Friendly Construction – Accessible controls, a draw-through filter section, and factory-tested wiring help simplify service, maintenance, and commissioning.

R-32 Heat Pump Heating Performance

The integrated heat pump heating system provides 67,000 BTU/h of heating capacity at to help maintain comfortable indoor temperatures during colder-weather operation. The unit uses R-32 refrigerant and supports electric heat selections of 5, 10, 15, 20, and 30 kW for supplemental heating applications.

68,000 BTU/h Cooling Performance

The heat pump cooling system provides 68,000 BTU/h of cooling capacity with a 16.7 IEER and 11.3 EER efficiency rating. The high-performance, low-noise scroll compressor is designed to provide dependable cooling performance while supporting efficient operation during both part-load and full-load conditions.

High-Efficiency R-32 Performance

With a 16.7 IEER rating and 11.3 EER rating, this system is designed to provide efficient commercial cooling performance. The R-32 refrigerant system combines with a direct-drive supply fan and large-face-area outdoor coil using microchannel technology to support efficient, reliable packaged rooftop operation.

Rooftop & Installation Design

The packaged rooftop configuration combines the heat pump, compressor, coils, supply fan, controls, and other major HVAC components into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. Daikin packaged rooftop units are designed with fast and easy installation in mind and are ideal for both new construction and retrofit projects. The units are built to be a direct replacement for most rooftop units in the field without the need for a curb adapter. Convertible airflow orientation allows the unit to serve downflow or horizontal applications. The DSH0724D000001S measures 74 inches wide by 48 5/16 inches deep by 43 1/2 inches high.

Controls & Comfort

The DSH0724D000001S features a well-organized, large, easy-to-use weatherproof internal control box with easy access. The direct-drive supply fan provides efficient airflow control, while the heat pump and available electric heat selections support dependable packaged heating and cooling operation. The unit is completely wired and tested at the factory to help provide faster commissioning and start-up.

Light Commercial Applications

The Daikin DSH0724D000001S is designed for light commercial rooftop applications requiring packaged heating and cooling. Its 6-ton capacity, 460V three-phase electrical configuration, R-32 refrigerant, convertible airflow orientation, and direct-drive supply fan make it well suited for compatible commercial buildings and retrofit installations.

Service & Maintenance

The unit is designed with serviceability in mind, featuring a weatherproof internal control box with easy access and a draw-through filter section as standard for better air quality and long-lasting component maintenance. Factory-wired and tested components help simplify commissioning and start-up, while accessible construction supports routine service and maintenance.

Warranty

The Daikin DSH0724D000001S includes a 5-Year Parts Limited Warranty. Complete warranty details, including applicable terms, conditions, and requirements, are provided in the Daikin warranty documentation.

Recommended Accessories

• Roof Curb - DC3-6 - Provides a stable, elevated mounting base for commercial rooftop units while helping create a weatherproof roof connection.
• Custom Curb Adapter - Custom-Curb-3-6 - Allows a new rooftop HVAC unit to fit an existing roof curb without modifying the roof opening.
• Vertical Jade Economizer - 0270L01753 - Helps reduce cooling costs by using outdoor air for free cooling when conditions are suitable.
• Manual Air Damper - 0270L01166 - Allows manual control of outdoor air intake for commercial rooftop unit ventilation.
• Motorized Air Damper - 0270L01165 - Automatically controls outdoor air intake to provide ventilation for commercial rooftop units.
• Hail Guard - HAILGD036HE - Protects the outdoor coil from hail damage and impact from airborne debris.
• Heat Kits: EHXD-4S05A, , EHXD-4S10A, , EHXD-4S15A, , EHXD-4S20A, , & EHXD-4S30A - Provides supplemental electric heating to increase comfort during colder conditions.
• System Smoke Detector - D4120W - Detects smoke in the HVAC system and helps trigger shutdown to limit smoke circulation throughout the building.

Efficient Year-Round Comfort with the Daikin DSH0724D000001S

Experience reliable commercial heating and cooling with the Daikin DSH0724D000001S. Combining 67,000 BTU/h heat pump heating capacity and 68,000 BTU/h cooling capacity in one R-32 direct-drive packaged rooftop system with 460V three-phase power.
