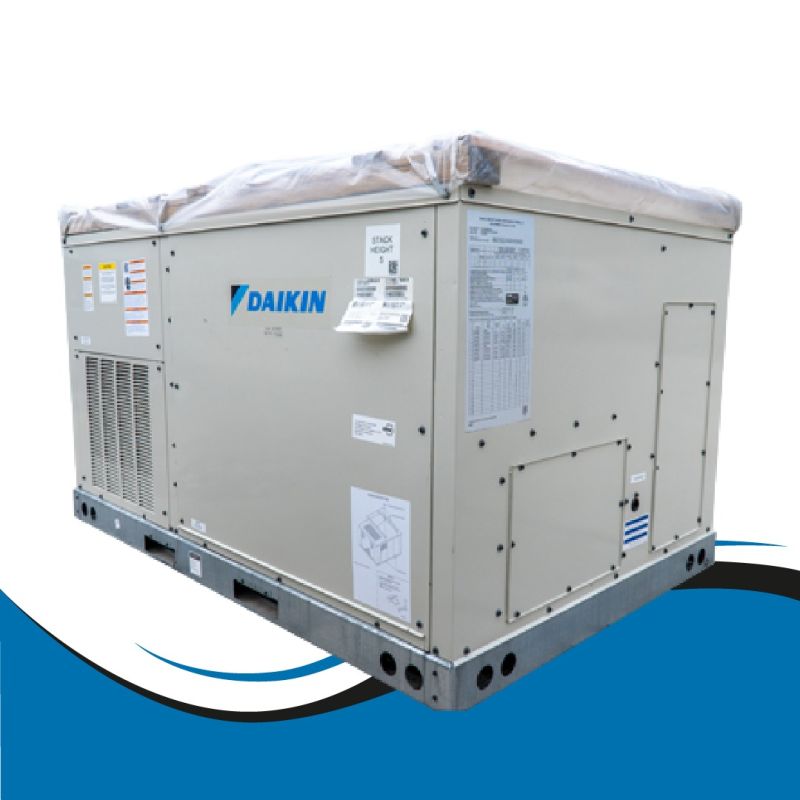

The Daikin DSC0723D000001S is a 6-ton commercial packaged air conditioner designed to provide reliable, efficient cooling for light commercial applications. Combining 69,000 BTU/h of cooling capacity with two-stage scroll compressor technology, an ECM direct-drive supply fan, and R-32 refrigerant, this all-in-one rooftop system helps deliver reliable cooling and efficient part-load operation while simplifying installation and preserving valuable indoor space.
The integrated air conditioning system uses a two-stage scroll compressor to provide 69,000 BTU/h of nominal cooling capacity. Two-stage cooling allows the system to operate at reduced capacity during partial-load conditions, helping improve comfort and efficiency when full cooling capacity is not required. The DSC0723D000001S uses R-32 refrigerant.
The DSC0723D000001S provides 69,000 BTU/h of nominal cooling capacity with an 11.8 EER and 16.7 IEER rating. This combination helps provide dependable commercial cooling performance while supporting efficient operation during both full-load and part-load conditions.
With an 11.8 EER and 16.7 IEER rating and an ECM direct-drive supply fan, this system is designed to provide efficient air movement and reliable cooling performance. The direct-drive configuration eliminates belt-driven components, while the ECM motor supports efficient fan operation across the required airflow range.
The packaged rooftop configuration combines the compressor, condenser, evaporator coil, supply fan, controls, and other air distribution components into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. The DSC0723D000001S is built to be a direct replacement for most rooftop units without the need for a curb adapter. Its convertible airflow orientation allows the unit to serve downflow or horizontal applications. The unit measures 74 inches wide by 48 5/16 inches deep by 43 1/2 inches high and has a listed ship weight of 651 pounds.
The DSC0723D000001S features a 24-volt electromechanical controls package for straightforward commercial system operation. Its two-stage scroll compressor provides staged cooling for partial-load applications, while the ECM direct-drive supply fan provides efficient air distribution. The unit is configured for 208/230-volt, three-phase electrical service.
The Daikin DSC0723D000001S is designed for comfort cooling applications in light commercial buildings and other commercial environments requiring packaged rooftop air conditioning. Its 69,000 BTU/h cooling capacity, two-stage scroll compressor, ECM direct-drive supply fan, and convertible airflow orientation make it well suited for applications where reliable cooling, efficient part-load operation, and installation flexibility are important.
The DSC0723D000001S is designed for convenient service access, including tool-less filter access for routine maintenance. Screw-on style pressure switches are provided for ease of replacement, while the factory-packaged design keeps the major refrigeration, airflow, and control components together in one outdoor unit. The system also incorporates a Micro Channel condenser to support efficient heat transfer.
The Daikin DSC0723D000001S includes a Daikin limited warranty. Complete warranty details are available from your local Daikin distributor or manufacturer's representative or through Daikin Comfort and are subject to applicable warranty terms and conditions.
Experience reliable, efficient commercial cooling with the Daikin DSC0723D000001S. Combining R-32 refrigerant, two-stage scroll compressor technology, 16.7 IEER / 11.8 EER efficiency, ECM direct-drive air distribution, and flexible downflow or horizontal airflow configuration in one packaged rooftop air conditioning system.
