Daikin 7.5 Ton 11.4 EER / 16.4 IEER Commercial Heat Pump Condenser | 208/230V 3 Phase - R32 - Two Stage

Reliable 7.5-Ton Commercial Split Heat Pump for Light Commercial Applications with Two-Stage R-32 Performance

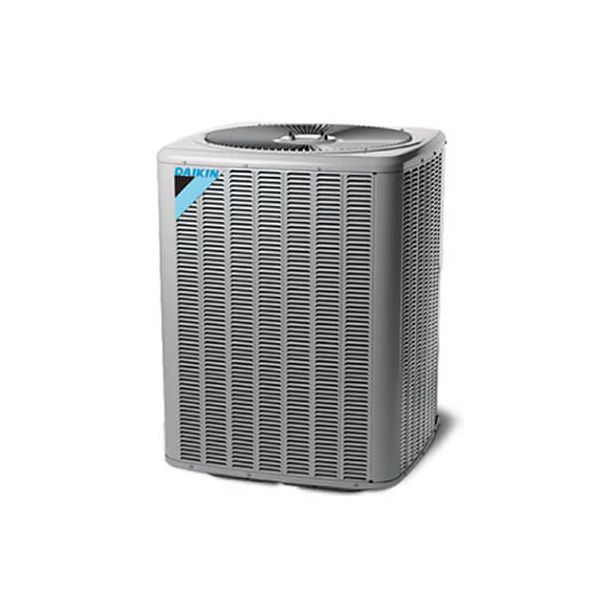

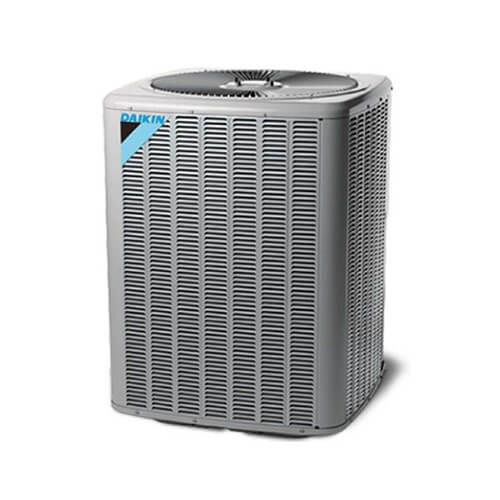

The Daikin DH6TE09030 is a 7.5-ton commercial split heat pump system designed to provide reliable year-round heating and cooling for light commercial applications. Combining the 92,000 BTU/h DH6TE09030 outdoor heat pump unit with a compatible 7.5-ton DAQ0903 indoor air handler, this split system helps deliver dependable comfort while providing flexible equipment placement for commercial installations.

Key Benefits

• 16.0 IEER Efficiency – Provides efficient commercial cooling performance to help manage energy use during warm-weather operation.
• Two-Stage Heating Operation – The two-stage tandem compressor design helps provide dependable heat pump performance across a range of operating conditions.
• 92,000 BTU/h Cooling Capacity – Delivers substantial cooling capacity for 7.5-ton commercial split system applications.
• DAQ0903 Indoor Air Handler Compatibility – The compatible DAQ0903 air handler uses two thermal expansion valves and two 5-speed direct-drive motors for flexible airflow operation.
• Split System Installation – Separates the outdoor heat pump from the indoor air handler, providing flexibility for equipment placement and ducted installation.
• Ground-Level or Rooftop Mounting – The outdoor unit is designed for ground-level or rooftop mounting, while its elevated base pan helps provide drainage and keeps the coil away from debris.
• Durable Cabinet Construction – Heavy-gauge galvanized steel, a Nickel Gray powder-paint finish, and a steel louvered coil guard help protect the outdoor unit in commercial environments.
• Conventional Low-Voltage Controls – The outdoor unit provides low-voltage control connections for standard heat pump operation, including compressor staging and reversing-valve control.
• Accessible Service Components – Brass liquid and suction service valves with service ports, high- and low-pressure switches, and accessible refrigeration components support service and maintenance.

Two-Stage Heat Pump Heating Performance

The Daikin DH6TE09030 provides a rated heating capacity of 85,000 BTU/h at 47°F outdoor ambient temperature and maintains heating operation down to -5°F outdoor ambient temperature under the published operating range. At 17°F, the rated heating capacity is 52,000 BTU/h with a 2.25 COP. The two-stage tandem compressor design includes an internal pressure release valve, while reliable time-initiated, temperature-terminated defrost control helps manage frost accumulation during heat pump operation.

92,000 BTU/h Cooling Performance

The DH6TE09030 provides a rated cooling capacity of 92,000 BTU/h with an EER of 11.4 and an IEER of 16.0 for the specified 208/230V three-phase configuration. The outdoor unit is designed for a cooling operating range of 55°F to 125°F outdoor ambient temperature, helping support dependable cooling performance across a broad range of commercial conditions.

16.0 IEER Efficiency with Two-Stage Operation

With a 16.0 IEER rating and two-stage tandem compressor operation, the DH6TE09030 is designed to provide efficient commercial cooling performance while adapting compressor operation to system demand. The unit uses R-32 refrigerant, a high-efficiency copper tube/aluminum fin coil, and a high-capacity steel-cased bi-flow heat pump filter drier. The system also includes liquid refrigerant return protection and a discharge line muffler.

Split System Installation Design

The split system configuration separates the DH6TE09030 outdoor heat pump unit from the compatible DAQ0903 indoor air handler, providing flexibility for equipment placement and ducted commercial installation. The DH6TE09030 operates on 208/230V, 60 Hz, three-phase power and uses 5/8-inch liquid and 1-1/8-inch suction service valve connections. The outdoor unit includes a 15-foot factory refrigerant charge length and supports a maximum total piping length of 150 feet, with a maximum vertical piping length of 25 feet.

Controls & Comfort

The DH6TE09030 uses conventional low-voltage controls with connections for Y1, Y2, W1, O, R, and C functions. The two-stage compressor configuration supports staged operation, while the O connection controls the heat pump reversing valve. When paired with the DAQ0903 air handler, the system uses a room thermostat; Daikin specifies 24 VAC control circuitry for the DAQ series. The W1 connection can be used to command auxiliary heat when installed.

Commercial Applications

The Daikin DH6TE09030 is designed for 7.5-ton light commercial split system applications requiring three-phase power and ducted indoor air distribution. Its ground-level or rooftop mounting capability, durable galvanized-steel cabinet, elevated base pan, and steel louvered coil guard make it suited for commercial installations where equipment durability and flexible placement are important considerations.

Service & Maintenance

The DH6TE09030 includes brass liquid and suction line service valves mounted at a 90-degree angle with sweat connections and service ports for refrigeration-system service. High- and low-pressure switches provide system protection, while the factory-installed bi-flow heat pump filter drier, liquid refrigerant return protection, discharge line muffler, and time-initiated, temperature-terminated defrost control are integrated into the outdoor unit. The heavy-gauge galvanized-steel cabinet and steel louvered coil guard also provide durable protection for outdoor components.

Warranty

The Daikin DH6TE09030 includes a 5-Year Parts Limited Warranty. Online registration must be completed within 60 days of installation to receive the 5-Year Parts Limited Warranty. Warranty duration may vary by state or province, and additional limitations and exclusions apply; refer to the complete Daikin warranty documentation for applicable terms and conditions.

Recommended Accessories

• Anchor Bracket Kit – Provides anchoring hardware for securing the outdoor unit to its mounting pad; the kit contains 20 brackets, with four brackets required to anchor the unit to the pad.
• Solenoid Kit – Daikin-listed accessory compatible with the DH6TE09030 outdoor unit.
• Low Ambient Kit – Daikin-listed accessory compatible with the DH6TE09030 outdoor unit.
• Outdoor Thermostat – Daikin-listed outdoor thermostat accessory compatible with the DH6TE09030.
• Crankcase Heater – Daikin offers model-specific crankcase heater accessories for the DH6TE series; consult the applicable Daikin accessory documentation for the correct heater selection.

Reliable Commercial Heating & Cooling with the Daikin DH6TE09030

Experience dependable year-round commercial comfort with the Daikin DH6TE09030. Combining two-stage heat pump heating, 92,000 BTU/h cooling capacity, 16.0 IEER efficiency, and durable R-32 outdoor unit construction in one 7.5-ton commercial split heat pump system.
