Daikin 7.5 Ton 11.4 EER / 16 IEER Commercial Heat Pump Condenser | 460V 3 Phase - R32 - Two Stage

Reliable 7.5-Ton Commercial Split Heat Pump for Light Commercial Applications with Two-Stage R-32 Performance

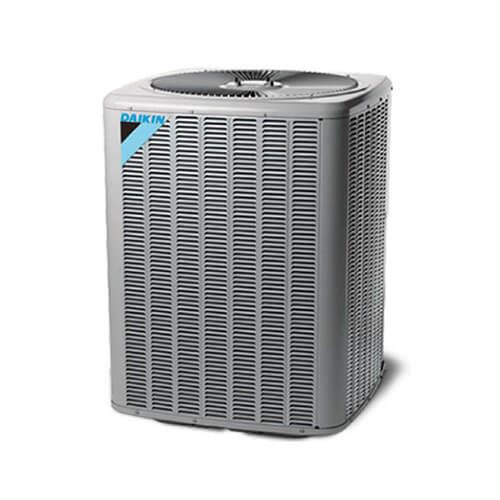

The Daikin DH6TE09040 is a 7.5-ton commercial split heat pump system designed to provide reliable heating and cooling for light commercial applications. Combining the 92,000 BTU/h DH6TE09040 outdoor heat pump unit with a compatible 7.5-ton indoor air handler, this split system helps deliver year-round comfort while providing flexible equipment placement and ducted installation options.

Key Benefits

• 16.0 IEER Efficiency – Provides efficient commercial cooling performance to help manage energy use during warm-weather operation.
• Two-Stage Heating Operation – The two-stage tandem compressor design provides staged heat pump operation for dependable heating performance across a range of outdoor conditions.
• 92,000 BTU/h Cooling Capacity – Provides substantial cooling capacity for 7.5-ton commercial split system applications.
• Compatible Indoor Air Handler – Designed for use with a compatible commercial air handler to provide ducted indoor air distribution for light commercial applications.
• Flexible Split System Installation – Separating the outdoor heat pump unit from the indoor air handler provides flexibility for equipment placement and installation.
• Ground-Level or Rooftop Mounting – The outdoor unit is designed for ground-level or rooftop mounting, while bottom pan rails elevate the unit above the slab to support water drainage and help keep the coil away from debris.
• Durable Cabinet Construction – Heavy-gauge galvanized steel, a Nickel Gray powder-paint finish, and a steel louvered coil guard help protect the outdoor unit and coil in commercial environments.
• Conventional Low-Voltage Controls – Low-voltage control connections support staged compressor operation, reversing-valve control, and auxiliary heat control when applicable.
• Service-Friendly Refrigeration Design – Brass liquid and suction service valves with service ports, high- and low-pressure switches, and a factory-installed bi-flow filter drier support refrigeration-system service and maintenance.

Two-Stage Heat Pump Heating Performance

The DH6TE09040 provides a rated heating capacity of 85,000 BTU/h at 47°F outdoor ambient temperature and 52,000 BTU/h at 17°F, with a rated heating COP of 3.5 at 47°F and 2.25 at 17°F. The heating operating range extends from -5°F to 70°F outdoor ambient temperature. The two-stage tandem compressor design incorporates an internal pressure release valve, while reliable time-initiated, temperature-terminated defrost control helps manage frost accumulation during heat pump operation.

92,000 BTU/h Cooling Performance

The DH6TE09040 outdoor heat pump unit provides a rated cooling capacity of 92,000 BTU/h with an EER of 11.4 and an IEER of 16.0. The cooling operating range is 55°F to 125°F outdoor ambient temperature, helping support dependable cooling performance across a broad range of commercial conditions.

16.0 IEER Efficiency with Two-Stage Operation

With a 16.0 IEER rating and two-stage tandem compressor operation, the DH6TE09040 is designed to provide efficient commercial cooling performance while supporting staged operation. The system uses R-32 refrigerant, a high-efficiency copper tube/aluminum fin coil, a high-capacity steel-cased bi-flow heat pump filter drier, liquid refrigerant return protection, and a discharge line muffler. The unit is AHRI Certified and ETL Listed and complies with ASHRAE 90.1-2016.

Split System Installation Design

The split system configuration separates the DH6TE09040 outdoor heat pump unit from the compatible indoor air handler, providing flexibility for equipment placement and ducted commercial installation. The outdoor unit operates on 460V, 60 Hz, three-phase power and uses 5/8-inch liquid and 1-1/8-inch suction service valve connections. The unit includes a 15-foot pre-charged piping length and supports a maximum total piping length of 150 feet, with a maximum vertical piping length of 25 feet. The outdoor unit measures 35-1/2 inches wide by 35-1/2 inches deep by 41-1/2 inches high.

Controls & Comfort

The DH6TE09040 uses conventional low-voltage controls for heat pump operation. The two-stage compressor configuration supports staged operation, while heat pump reversing-valve control and auxiliary heat control are provided through the system's low-voltage control circuitry when applicable. When paired with the appropriate indoor air handler, the system provides ducted air distribution for commercial comfort applications.

Commercial Applications

The Daikin DH6TE09040 is designed for 7.5-ton light commercial split system applications requiring 460V three-phase power and ducted indoor air distribution. Its ground-level or rooftop mounting capability, heavy-gauge galvanized-steel cabinet, elevated base pan rails, sound control top design, and steel louvered coil guard make it suited for commercial installations where equipment durability, flexible placement, and dependable year-round heating and cooling are important considerations.

Service & Maintenance

The DH6TE09040 includes brass liquid and suction line service valves mounted at a 90-degree angle with sweat connections and service ports for refrigeration-system service. High- and low-pressure switches provide system protection, while the factory-installed bi-flow heat pump filter drier, liquid refrigerant return protection, discharge line muffler, and time-initiated, temperature-terminated defrost control are integrated into the outdoor unit. The heavy-gauge galvanized-steel cabinet and steel louvered coil guard provide additional protection for outdoor components.

Warranty

The Daikin DH6TE09040 includes a 5-Year Parts Limited Warranty. Complete warranty details are available from the Daikin distributor or manufacturer's representative and are subject to applicable warranty terms, conditions, and limitations.

Recommended Accessories

• Compatible Commercial Thermostat or Low-Voltage Control – Select the appropriate control for the matched indoor air handler and installed system configuration.
• Anchor Bracket Kit – Provides an option for securing the outdoor unit to its mounting surface where required by the installation or applicable building requirements.
• Equipment Pad or Approved Mounting Base – Provides a suitable mounting surface for ground-level installations.
• Low Ambient Accessory – Consult Daikin documentation for the appropriate accessory when operation outside the standard cooling ambient range is required.
• Crankcase Heater – Consult the applicable Daikin accessory documentation for compatibility and model-specific selection.

Reliable Commercial Heating & Cooling with the Daikin DH6TE09040

Experience dependable year-round commercial comfort with the Daikin DH6TE09040. Combining two-stage heat pump heating, 92,000 BTU/h cooling capacity, 16.0 IEER efficiency, and durable R-32 outdoor unit construction in one 7.5-ton commercial split heat pump system.
