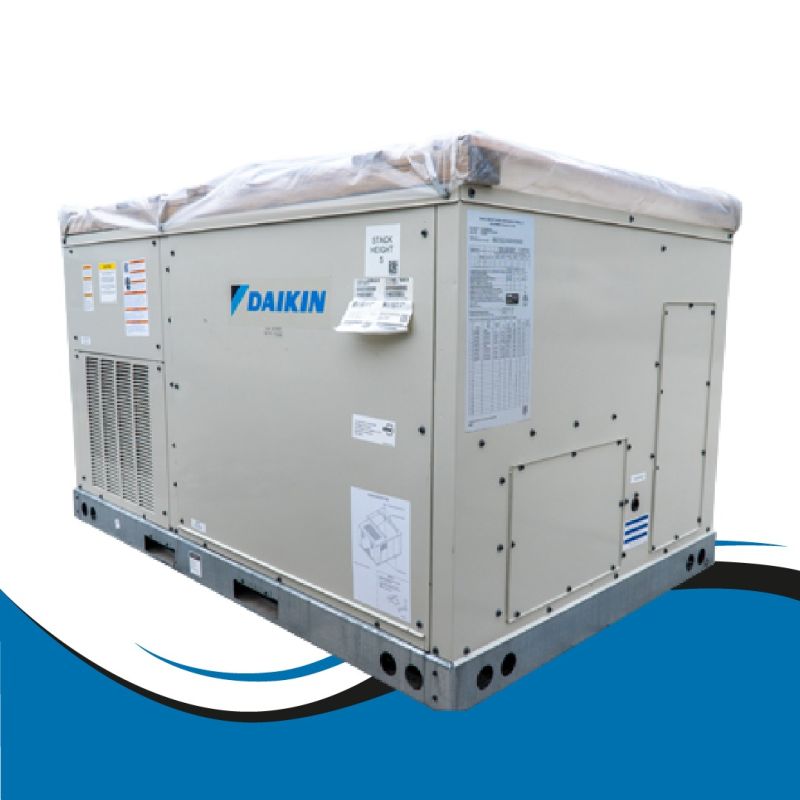

The Daikin DSC0903D000001S is a 7.5-ton commercial packaged air conditioner designed to provide reliable, efficient cooling for light commercial applications. Combining 90,000 BTU/h of cooling capacity with two individually circuited scroll compressors, an ECM direct-drive supply fan, and R-32 refrigerant, this all-in-one rooftop system helps deliver dependable cooling and efficient part-load operation while simplifying installation and preserving valuable indoor space.
The integrated air conditioning system uses two Single-stage scroll compressors that are individually circuited to provide 90,000 BTU/h of nominal cooling capacity. The two refrigeration circuits provide two-stage cooling operation, allowing the system to better match cooling output to the required load. The DSC0903D000001S uses R-32 refrigerant.
The DSC0903D000001S provides 90,000 BTU/h of nominal cooling capacity with a 12.0 EER and 16.0 IEER rating. This helps provide dependable commercial cooling performance while supporting efficient operation across full-load and part-load conditions.
With 12.0 EER and 16.0 IEER efficiency ratings and an ECM direct-drive evaporator motor, this system is designed to provide efficient air movement and reliable cooling performance. The 15-inch by 12-inch direct-drive indoor blower operates across a 300 to 1,600 RPM range and provides 3,020 CFM of nominal indoor airflow. The standard maximum external static pressure is 0.8 in. W.C.
The packaged rooftop configuration combines the compressors, condenser, evaporator coil, supply fan, controls, and other air distribution components into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. The DSC0903D000001S is built to be a direct replacement for most rooftop units without the need of a curb adapter. Its convertible airflow orientation allows the unit to serve downflow or horizontal applications. The unit measures 93 3/4 inches wide by 60 3/8 inches deep by 54 5/8 inches high and has a ship weight of 1,087 pounds.
The DSC0903D000001S features a 24-volt electromechanical controls package for straightforward commercial system operation. Two individually circuited scroll compressors provide two-stage cooling, while the ECM direct-drive supply fan provides efficient air distribution. The unit is configured for 208/230-volt, three-phase, 60 Hz electrical service.
The Daikin DSC0903D000001S is designed for comfort cooling applications in light commercial buildings and other commercial environments requiring packaged rooftop air conditioning. Its 90,000 BTU/h cooling capacity, single-stage cooling system, ECM direct-drive supply fan, and convertible airflow orientation make it well suited for applications where reliable cooling, efficient part-load operation, and installation flexibility are important.
The DSC0903D000001S is designed for convenient service access, including tool-less filter access for routine filter maintenance. The standard filter arrangement consists of two 20-inch by 20-inch by 2-inch filters and two 20-inch by 25-inch by 2-inch filters. Screw-on style pressure switches provide ease of replacement, while the factory-packaged design keeps the major refrigeration, airflow, and control components together in one outdoor unit. The unit uses a Microchannel condenser and a copper tube/aluminum fin evaporator coil for efficient heat transfer.
The Daikin DSC0903D000001S includes a 5-Year Parts Limited Warranty. Complete warranty details are available from your local Daikin distributor or manufacturer's representative or through Daikin Comfort and are subject to applicable warranty terms and conditions.
Experience reliable, efficient commercial cooling with the Daikin DSC0903D000001S. Combining R-32 refrigerant, two individually circuited scroll compressors, 16.0 IEER / 12.0 EER efficiency, ECM direct-drive air distribution, and flexible downflow or horizontal airflow configuration in one packaged rooftop air conditioning system.
The DSC Packaged Air Conditioner provides energy-efficient cooling performance in one self-contained unit. This unit is suitable for ground-level or rooftop installations and horizontal or downflow applications.
