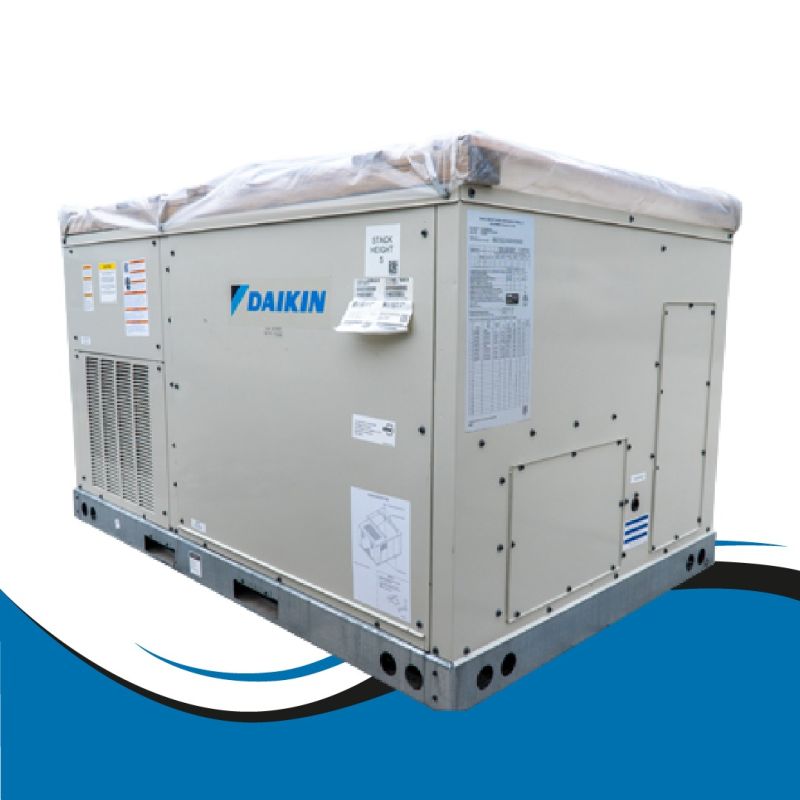

Daikin 7.5 Ton 225,000 BTU 13.4 SEER2 Gas/Electric Light Commercial Packaged Unit - 460V 3 Phase- R410A

Daikin 7.5 Ton 225,000 BTU 13.4 SEER2 Gas/Electric Light Commercial Packaged Unit - 460V 3 Phase- R410A
Image Daikin 7.5 Ton 225,000 BTU Light Commercial 11.2 EER Gas/Electric Packaged Unit - Direct Driven 460V 3 Phase - DFG0904DH00001S Image Image Image
Daikin 7.5 Ton 225,000 BTU 13.4 SEER2 Gas/Electric Light Commercial Packaged Unit - 460V 3 Phase- R410A
By

Daikin

In stock
Model

DFG0904DH00001S

ID

132863

Be the first to review this product
ONLY 1 LEFT!
$7,960.00

Product Features
  • Direct Drive Type
  • Single Stage Condenser
  • Certified for use with R410A refrigerant
  • 20 Years Heat Exchanger, 5 Years Parts Warranty with Online Registration

The DFG0904DH00001S 7.5 Ton G/E 460V 225k btu/h light commercial gas/electric packaged unit offers energy-efficient heating and cooling performance in one self-contained unit. This 13.4 SEER2 unit is suitable for ground-level or rooftop installations and horizontal or downflow applications. The heavy-gauge, galvanized steel cabinet with UV-resistant powder-paint finish withstands all weather conditions and time.

Standard Features

  • High-efficiency scroll compressor
  • Copper tube/aluminum fin coils
  • High and low pressure switches
  • High-capacity, steel-cased filter drier
  • 24 volt terminal strip
  • Convertible airflow orientation
  • Built in filter rack with standard 2" filters

Packaged Unit Buyers Guide

  • How packaged units work for residential and commercial use
  • The different types of packaged units
  • Figuring out the right size unit for your needs
  • The importance of a custom curb adapter
  • And much more!
More Information
Daikin 7.5 Ton 225,000 BTU 13.4 SEER2 Gas/Electric Light Commercial Packaged Unit - 460V 3 Phase- R410A
SKUDFG0904DH00001S
Refrigerant ChargePre-charged
Weight (in lbs)1140.000000
Brand/ManufacturerDaikin
Additional InformationUses two 20" x 20" x 2" and two 20" x 25" x 2" filters
Cooling BTU86,000 BTU
Heating BTU225,000 BTU
Drive TypeDirect
Maximum CFM3020
Decibel Level (dBA)82.6 decibels
Motor RPM300-1600
Horsepower.333 HP
RefrigerantR410A
SEER2 (Efficiency)13.4
EER11.2
IEER14.8
Condenser StagesSingle Stage
Compressor TypeScroll
Electrical460 V. 3 Phase 60 Hz
PhaseThree Phase
Max Breaker Size25 Amps
Min. Breaker Size20.8 Amps
Tonnage7.5 Ton
Burner StagesModulating
Height54 5/8"
Width93 3/4"
Depth60 3/8"
Warranty20 Years Heat Exchanger, 5 Years Parts with Online Registration
