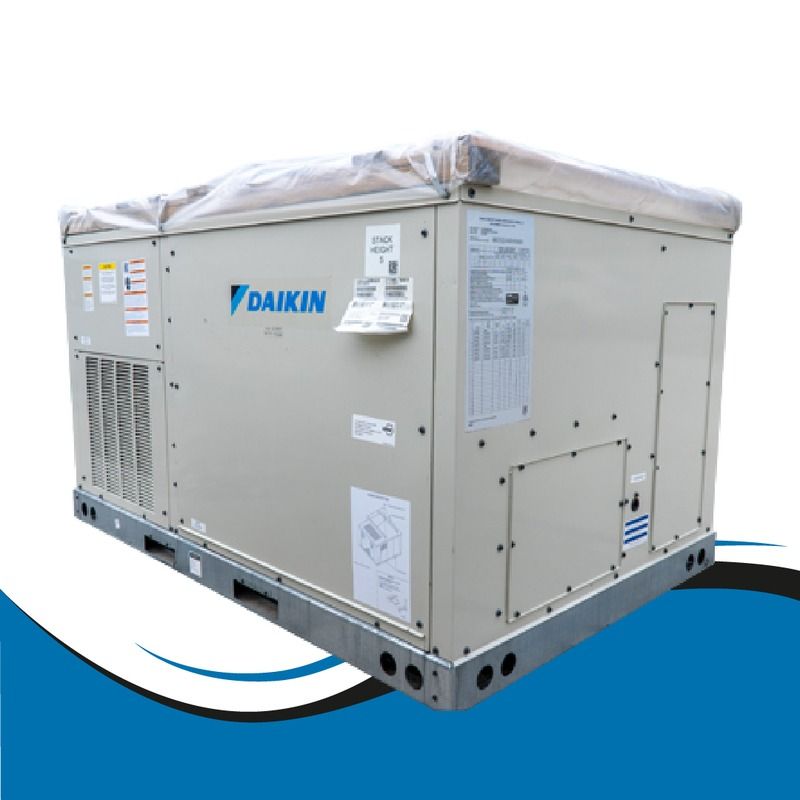

Daikin 8.5 Ton 210,000 BTU 11 EER Gas/Electric Light Commercial Packaged Unit | 208/230V 3 Phase - R32 - Single Stage

OVERVIEW

The DBG1023VH00001S 8.5 Ton G/E 208/230V 210k btu/h light commercial gas/electric packaged unit offers energy-efficient heating and cooling performance in one self-contained unit. This 11 EER unit is suitable for ground-level or rooftop installations and horizontal or downflow applications. The heavy-gauge, galvanized steel cabinet with UV-resistant powder-paint finish withstands all weather conditions and time.

Standard Features

• 8.5 Ton, 12.7 IEER / 11 EER
• 210,000 Heating BTUs, 97,000 Cooling BTUs
• 208/230v 3-Phase 60Hz
• Two-Speed Belt-Drive Standard static motor
• High-efficiency scroll compressor
• Copper tube/aluminum fin coils
• High and low pressure switches
• High-capacity, steel-cased filter drier
• 24 volt terminal strip
• Convertible airflow orientation
• Built in filter rack with standard 2" filters

Cabinet Construction

• Easy accessibility using our tool-less filter access
• The interior surface in the indoor air section is fully insulated to prevent sweating and thermal losses, using our foil face fiberglass insulation which also omits exposed filter fibers into the airstream.
• 1" Raised flanged edges around the supply and return offer easy installation for the duct connections.
• The full perimeter base rail is built using heavy gauge galvanized steel for a stronger structural installation. The base rails are a minimum of 3½" tall and include holes to allow for overhead rigging and lifting with forklifts.
• Electrical lines and gas lines can be brought through the base of the unit or through the horizontal knockout for easy installation and accessibility on the field.

Compressor

• High performance, low noise scroll compressors to match the required total load.
• Resiliently factory-mounted on rubber grommets for vibration isolation.
• Refrigeration circuit includes both low- and high-pressure transducer, high pressure safety switch and temperature sensors for the suction and discharge lines.
• Unit is factory charged with environmentally friendly R-410A refrigerant.
• Compressor location outside the condenser section to avoid air bypass.
• Internal overload protection included with compressor.
• Dual single-stage scroll compressor for partial load applications.
