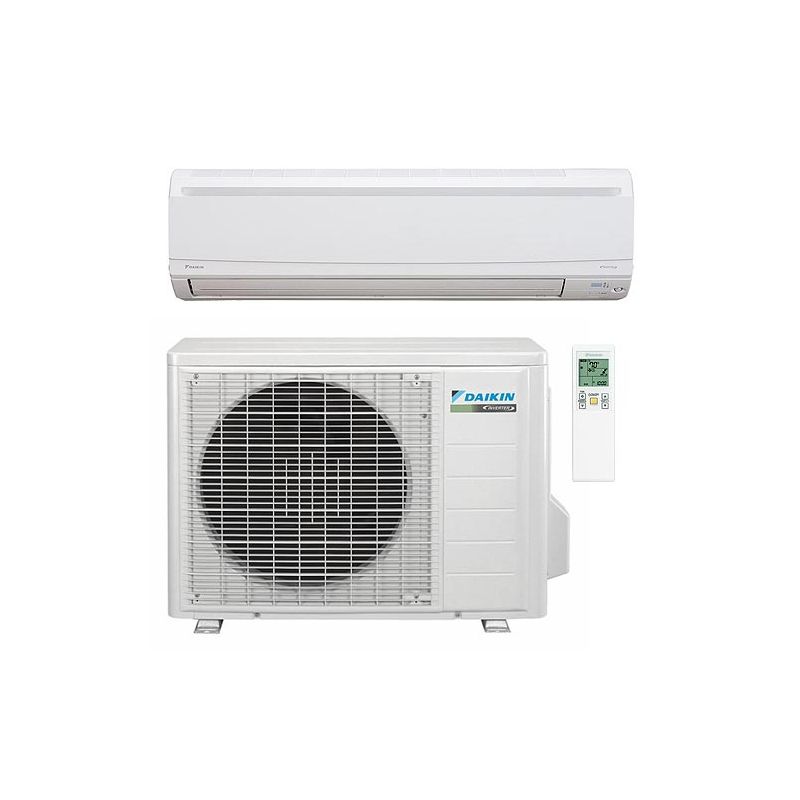

9,000 BTU 24.5 SEER Wall Mounted Daikin Mini-Split LV Series Single Zone Heat Pump - FTXS09RXS
Low Price: $1,305.00

9,000 BTU 24.5 SEER Wall Mounted Daikin Mini-Split LV Series Single Zone Heat Pump - FTXS09RXS

By: Daikin Model: FTXS09LVJU / RXS09LVJU ID: 1484

More Views

Low Price: $1,305.00
Bread Checkout
Authorized Daikin Dealer
Usually Ships Within 5-10 Business Days
AHRI Certified

Low Price: $1,305.00




The Daikin LV Series wall mounted unit provides high efficiency and comfort. This discreet wall unit won't take up floor space and is ideal for installation in buildings where ducted solutions are not possible. It features smart technology such as the intelligent eye sensor, which adjusts temperature conditions depending on if the room is occupied. It comes with a standard remote controller and is also compatible with the Daikin Comfort Control App to make running even easier. The unit provides up to 24.5 SEER and features a variable-speed inverter compressor for energy efficiency. Whether you are renovating a building or simply looking to improve the energy efficiency of your current unit, the Daikin LV wall mount is an idea solution for your home comfort needs.

  • Heat Pump – This system provides heating and cooling.
  • Daikin Comfort App – With this app, your smartphone becomes your comfort system's remote control.
  • 3D Airflow – This feature combines the horizontal and vertical auto-swing, circulating cool or warm air throughout the room, even to corners of large spaces.
  • Intelligent Eye – An infrared sensor detects movement in the room. When the room is occupied, the unit will operate normally. If the room is vacant for more than 20 minutes, the unit automatically switches to an energy-saving mode.
  • Anti-Corrosion – A special coating on the outdoor unit's heat exchanger helps the unit resist salt damage and corrosion from other atmospheric conditions.
  • Quick Warming Function – In heat pump only models, this feature prevents the compressor from pumping liquid refrigerant in low temperature conditions.
  • Automatic Defrosting – In heat pump models, the sensor will automatically defrost the outdoor heat exchanger if necessary. Doing so ensures the best heating performance.
  • Outdoor Unit Quiet Operation – This feature allows you to reduce the outdoor unit's sound levels by 3 dB at times when quieter operation is needed.


Additional Information

Manufacturer Daikin
AHRI Certificate Number 5265753
Additional Information Heat Pump
Additional Information Precharged for: 33'
Additional Information Maximum Line Set Length: 66'
Additional Information Drain: 5/8"
Additional Information Indoor Unit Weight: 31 lbs | Outdoor Unit Weight: 99 lbs
HSPF 12.5
Cooling BTU 9,000
Heating BTU 12,000
Maximum CFM 145-420 CFM
Decibel Level (dBA) Indoor Unit: 22-42 | Outdoor Unit: 47-48
Energy Star Yes
Refrigerant R410A
EER 15.3
Compressor Type Swing
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 15 amps
Min. Breaker Size 8 amps
Tonnage 0.75 Ton
Mini-Split Type Wall Mounted
Min/Max Outdoor Temp for Heating 5°F - 65°F
Min/Max Outdoor Temp for Cooling 50°F - 115°F
Zone Compatibility Single Zone
Height Indoor Unit: 11-5/8" | Outdoor Unit: 21-5/8"
Width Indoor Unit: 31-1/2" | Outdoor Unit: 30-1/8"
Depth Indoor Unit: 8-7/16" | Outdoor Unit: 11-1/4"
Weight (in lbs) 130.0000
Additional Info Indoor Unit Weight: 31 lbs | Outdoor Unit Weight: 99 lbs
Warranty 12 Years with Online Registration
