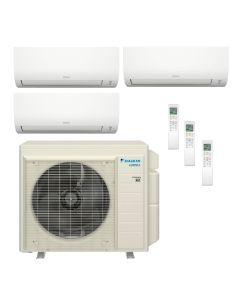

Daikin Tri Zone Mini Split System - Design Your Own

Required Fields *

By

Daikin

In stock

Model

Daikin Tri Zone R32

ID

201744

Rating:
100% of 100
In Stock - Ready to Ship
Was $3,433.10
Your Low Price $3,121.00

Free Shipping
  • Build Your Own Customized Daikin System
  • Heating & Cooling
  • Ductless Solution
  • Tri Zone/Room Compatible
  • Warranty With Online Registration
  • Wi-Fi & Smartphone App Capabilities
Customize Daikin Tri Zone Mini Split System - Design Your Own
12k BTU Wall Mount
12k BTU Wall Mount
12k BTU Wall Mount
18,000 BTU Daikin Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V
Daikin Design Your Own Tri Zone Heat Pump System - Daikin Tri Zone

$3,121.00

The Daikin Tri Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated between 16-20 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

18,000 BTU Daikin Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V
18,000 BTU Daikin Multi-Zone Mini Split Heat Pump Condenser W/Drain Pan Heater - R32 | 230V

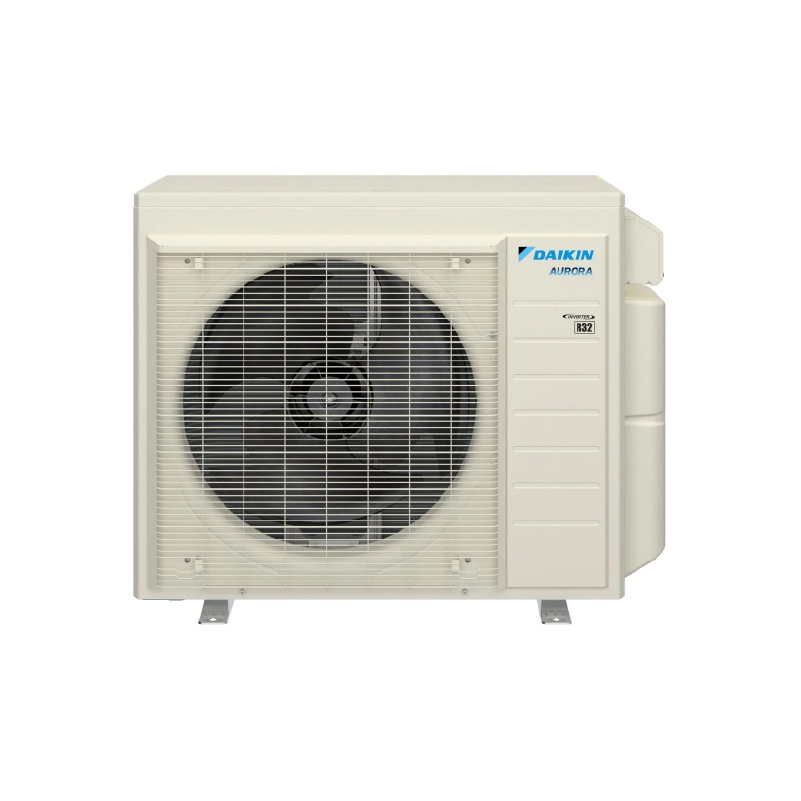

18,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V

18,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V

The 18,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser is a powerful and energy-efficient solution for multi-zone climate control. Designed to support 2, 3, 4, and 5-zone multi-port configurations, this system provides exceptional heating and cooling performance for homes and businesses. Featuring R32 refrigerant and an inverter-driven compressor, this unit maximizes efficiency while maintaining year-round comfort.

Key Features:

High-Performance Heating & Cooling:

  • Supports up to a 4 Ton Heat Pump System for superior climate control
  • Delivers up to 20.6 SEER2, 12 EER2, and 9.7 HSPF2 for outstanding energy efficiency
  • Provides 100% heating capacity at 5°F (MXT Enhanced Capacity ONLY)
  • Ensures 100% cooling capacity at 104°F (MXT Capacity ONLY)
  • Wide operating temperature range:
    • MXM Heating: 5°F to 60°F
    • MXT Heating: -13°F to 60°F
    • Cooling: 14°F to 115°F

Multi-Zone Technology:

  • Designed for 2, 3, 4, and 5-zone multi-port systems to accommodate multiple indoor units
  • Precharged for up to 131 ft of liquid line for faster installation
  • Features Auto Changeover mode for seamless transitions between heating and cooling

Smart & Quiet Operation:

  • Outdoor sound pressure as low as 52 dB(A) for reduced noise levels
  • Indoor sound pressure as low as 24 dB(A) for whisper-quiet operation
  • Includes Self Diagnostics with a digital display for quick troubleshooting
  • Equipped with Auto Restart after power failure for continuous comfort

Durability & Long-Term Reliability:

  • Protected with Anti-Corrosion Treatment on the heat exchanger for longevity

Warranty Coverage:

  • Limited 12-Year Parts Warranty for long-lasting performance
  • Extended 12-Year Labor Warranty for additional protection

The 18,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser is the perfect choice for homeowners and businesses looking for an advanced, energy-efficient multi-zone climate control solution. With smart inverter technology, ultra-quiet operation, and exceptional durability, this unit ensures reliable comfort and efficiency all year round.

24,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V

24,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V

The 24,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser is an advanced and energy-efficient solution for multi-zone climate control. Designed to support 2, 3, 4, and 5-zone multi-port configurations, this unit provides exceptional heating and cooling performance for both residential and commercial applications. With an inverter-driven compressor and R32 refrigerant, it maximizes efficiency, ensures long-term durability, and delivers year-round comfort.

Key Features:

Powerful Heating & Cooling Performance:

  • Supports up to a 4 Ton Heat Pump System for high-performance climate control
  • Delivers up to 20.6 SEER2, 12 EER2, and 9.7 HSPF2 for outstanding energy efficiency
  • Provides 100% heating capacity at 5°F (MXT Enhanced Capacity ONLY)
  • Ensures 100% cooling capacity at 104°F (MXT Capacity ONLY)
  • Operates efficiently in a wide temperature range:
    • MXM Heating: 5°F to 60°F
    • MXT Heating: -13°F to 60°F
    • Cooling: 14°F to 115°F

Multi-Zone Technology:

  • Designed for 2, 3, 4, and 5-zone multi-port systems to support multiple indoor units
  • Precharged for up to 131 ft of liquid line for easier installation
  • Equipped with Auto Changeover mode for seamless transitions between heating and cooling

Quiet & Smart Operation:

  • Outdoor sound pressure as low as 52 dB(A) for reduced noise levels
  • Indoor sound pressure as low as 24 dB(A) for ultra-quiet operation
  • Features Self Diagnostics with a digital display for quick troubleshooting
  • Includes Auto Restart after power failure for continuous comfort

Durability & Long-Term Reliability:

  • Protected with Anti-Corrosion Treatment on the heat exchanger for enhanced longevity

Warranty Coverage:

  • Limited 12-Year Parts Warranty ensures long-lasting performance
  • Extended 12-Year Labor Warranty for added protection

The 24,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser is the ideal choice for homeowners and businesses looking for an advanced, energy-efficient multi-zone climate control solution. With smart inverter technology, ultra-quiet operation, and outstanding durability, this unit ensures reliable comfort and efficiency throughout the year.

36,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V

36,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V

The 36,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser is a powerful and energy-efficient solution for multi-zone climate control. Designed to support 2, 3, 4, and 5-zone multi-port configurations, this unit provides exceptional heating and cooling performance for both residential and commercial applications. Featuring R32 refrigerant and an inverter-driven compressor, it ensures long-term efficiency, reliability, and comfort in any environment.

Key Features:

Exceptional Heating & Cooling Performance:

  • Supports up to a 4 Ton Heat Pump System for high-performance climate control
  • Delivers up to 20.6 SEER2, 12 EER2, and 9.7 HSPF2 for outstanding energy efficiency
  • Provides 100% heating capacity at 5°F (MXT Enhanced Capacity ONLY)
  • Ensures 100% cooling capacity at 104°F (MXT Capacity ONLY)
  • Operates efficiently in a wide temperature range:
    • MXM Heating: 5°F to 60°F
    • MXT Heating: -13°F to 60°F
    • Cooling: 14°F to 115°F

Multi-Zone Technology:

  • Designed for 2, 3, 4, and 5-zone multi-port systems to support multiple indoor units
  • Precharged for up to 131 ft of liquid line for easier installation
  • Equipped with Auto Changeover mode for seamless transitions between heating and cooling

Smart & Quiet Operation:

  • Outdoor sound pressure as low as 52 dB(A) for reduced noise levels
  • Indoor sound pressure as low as 24 dB(A) for ultra-quiet operation
  • Features Self Diagnostics with a digital display for quick troubleshooting
  • Includes Auto Restart after power failure for continuous comfort

Durability & Long-Term Reliability:

  • Protected with Anti-Corrosion Treatment on the heat exchanger for extended durability

Warranty Coverage:

  • Limited 12-Year Parts Warranty ensures long-lasting performance
  • Extended 12-Year Labor Warranty for added protection

The 36,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser is an ideal choice for homeowners and businesses looking for an advanced, energy-efficient multi-zone climate control solution. With smart inverter technology, ultra-quiet operation, and outstanding durability, this unit ensures reliable comfort and efficiency throughout the year.

12,000 BTU Wall Mounted Daikin Mini Split Multi Zone FTXS - Air Handler

The Daikin FTXS/CTXS indoor unit is packed with features. It features an energy-saving intelligent eye feature, which reduces heating or cooling depending on whether a room is occupied or not. A titanium photocatalytic air filter provides a cleaner environment in your home. The dry program reduces humidity in your home without causing the room temperature to fluctuate. With a wireless remote controller and a weekly timer, it's easy to change operating modes or set the unit to run for a certain amount of time. You can also use the Comfort Control App to control the unit from anywhere in the world.

Ductless mini split heat pump systems are perfect for old and new homes or buildings, regardless of whether they have existing ductwork installed. Couple that with Daikin's beautifully designed indoor air handlers and you have elegance and efficiency that will last for years to come, guaranteed.

Features
  • 3D Airflow – This feature combines the horizontal and vertical auto-swing, circulating cool or warm air throughout the room, even to corners of large spaces.
  • Intelligent Eye – An infrared sensor detects movement in the room. When the room is occupied, the unit will operate normally. If the room is vacant for more than 20 minutes, the unit automatically switches to an energy-saving mode.
  • Hot Start – This feature prevents the unit for releasing a cold draft into the room when heating starts or when the unit changes from cooling to heating.
  • Titanium Apatite Photocatalytic Air-Purifying Filter – This feature combines an air-purifying filter and a deodorizing filter. It can last up to three years if it is washed every six months.
  • Auto-Restart – This feature enables unit to memorize operation mode, airflow, and temperature settings. If there is a power failure while the unit is running, it will return to those same operating settings once the power is restored.
  • Powerful Operation – When you push the POWERFUL button on the remote, the unit will get a 20 minute boost in cooling or heating power, even if it is already operating at high capacity.
18,000 BTU Wall Mounted Daikin Mini Split Multi Zone FTXS - Air Handler

The Daikin FVXS/CTXS indoor unit is packed with features. It features an energy-saving intelligent eye feature, which reduces heating or cooling depending on whether a room is occupied or not. A titanium photocatalytic air filter provides a cleaner environment in your home. The dry program reduces humidity in your home without causing the room temperature to fluctuate. With a wireless remote controller and a weekly timer, it's easy to change operating modes or set the unit to run for a certain amount of time. You can also use the Comfort Control App to control the unit from anywhere in the world.

Ductless mini-split heat pump systems are perfect for old and new homes or buildings, regardless of whether they have existing ductwork installed. Couple that with Daikin's beautifully designed indoor air handlers and you have elegance and efficiency that will last for years to come, guaranteed.

Features
  • 3D Airflow – This feature combines the horizontal and vertical auto-swing, circulating cool or warm air throughout the room, even to corners of large spaces.
  • Intelligent Eye – An infrared sensor detects movement in the room. When the room is occupied, the unit will operate normally. If the room is vacant for more than 20 minutes, the unit automatically switches to an energy-saving mode.
  • Hot Start – This feature prevents the unit for releasing a cold draft into the room when heating starts or when the unit changes from cooling to heating.
  • Titanium Apatite Photocatalytic Air-Purifying Filter – This feature combines an air-purifying filter and a deodorizing filter. It can last up to three years if it is washed every six months.
  • Auto-Restart – This feature enables unit to memorize operation mode, airflow, and temperature settings. If there is a power failure while the unit is running, it will return to those same operating settings once the power is restored.
  • Powerful Operation – When you push the POWERFUL button on the remote, the unit will get a 20 minute boost in cooling or heating power, even if it is already operating at high capacity.
More Information
18,000 BTU Daikin Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V
SKU2MXT18AVJU9
Weight139.000000
ManufacturerDaikin
Replaces2MXL18WMVJU9
Product FeaturesNew Refrigerant Compliant
Cooling BTU18000
Decibel Level (dBA)54
RefrigerantR32
SEER221
Compressor TypeSwing
Liquid Valve Size1/4"
Suction Valve Size3/8"
Electrical208/230V 1 Phase 60 Hz
BTU/Tonnage18,000 BTU/1.5 Ton
Zone CompatibilityMulti Zone
Indoor Units15 + 15 + 18
Height29.5
Width34.16
Depth12.58
WarrantyLimited 12-Year Parts Warranty
Safety InformationPROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects"PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
" or other reproductive harm. For more information about Proposition 65 please Click Here.
18,000 BTU Daikin Multi-Zone Mini Split Heat Pump Condenser W/Drain Pan Heater - R32 | 230V
SKU2MXTH18AVJU9
Weight140.000000
ManufacturerDaikin
Product FeaturesNew Refrigerant Compliant
Cooling BTU18000
Decibel Level (dBA)54
RefrigerantR32
SEER221
Compressor TypeSwing
Liquid Valve Size1/4"
Suction Valve Size3/8"
Electrical208/230V 1 Phase 60 Hz
BTU/Tonnage18,000 BTU/1.5 Ton
Zone CompatibilityMulti Zone
Indoor Units15 + 15 + 18
Height29.5
Width34.16
Depth12.58
WarrantyLimited 12-Year Parts Warranty
Safety InformationPROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects"PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
" or other reproductive harm. For more information about Proposition 65 please Click Here.
18,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V
SKU2MXM18AVJU9
Weight127.000000
ManufacturerDaikin
Replaces2MXS18WMVJU9
Cooling BTU18,000
Decibel Level (dBA)54
RefrigerantR32
SEER221
Compressor TypeSwing
Liquid Line1/4" (2)
Suction Line3/8" (1), 1/2" (1)
Electrical208-230 V | 60 Hz |1 Phase
Max Breaker Size20 Amps
Min. Breaker Size15.6 Amps
BTU/Tonnage18,000 BTU/1.5 Ton
Min/Max Outdoor Temp for Heating-13°F to 60°F
Min/Max Outdoor Temp for Cooling14°F to 115°F
Zone CompatibilityMulti Zone
Height29.5"
Width34.16"
Depth12.58"
WarrantyLimited 12-Year Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
24,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V
SKU3MXM24AVJU9
Weight140.000000
ManufacturerDaikin
Replaces3MXS24WMVJU9
Cooling BTU24,000
Decibel Level (dBA)Operates between 24 to 40
RefrigerantR32
SEER221
Compressor TypeSwing
Liquid Line1/4" (3)
Suction Line3/8" (1), 1/2" (2)
Electrical208-230 V | 60 Hz |1 Phase
Max Breaker Size25 Amps
Min. Breaker Size19.9 Amps
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating-13°F to 60°F
Min/Max Outdoor Temp for Cooling14°F to 115°F
Zone CompatibilityMulti Zone
Height29.5"
Width34.16"
Depth12.58"
WarrantyLimited 12-Year Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
36,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V
SKU4MXM36AVJU9
Weight142.000000
ManufacturerDaikin
Replaces4MXS36WMVJU9
Cooling BTU36,000
Decibel Level (dBA)60
RefrigerantR32
SEER220
Compressor TypeSwing
Liquid Line1/4" (4)
Suction Line3/8" (1), 1/2" (2), 5/8" (1)
Electrical208-230 V | 60 Hz |1 Phase
Max Breaker Size25 Amps
Min. Breaker Size24.1 Amps
BTU/Tonnage36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating-13°F to 60°F
Min/Max Outdoor Temp for Cooling14°F to 115°F
Zone CompatibilityMulti Zone
Height29.5"
Width34.16"
Depth12.58"
WarrantyLimited 12-Year Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
7,000 BTU Wall Mounted Daikin Mini Split Multi Zone CTXS - Air Handler
SKUCTXS07WVJU9
Weight29.000000
ManufacturerDaikin
Additional InformationDrain: 5/8"
Cooling BTU7000
Heating BTU7000
Maximum CFM145-350 CFM
Decibel Level (dBA)22-38
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical208/230v 1 Phase 60 Hz
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height11-5/8"
Width31-1/2"
Depth8-7/16"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
9,000 BTU Wall Mounted Daikin Mini Split Multi Zone FTXS - Air Handler
SKUFTXS09WVJU9
Weight20.000000
ManufacturerDaikin
Additional InformationDrain: 5/8"
Cooling BTU9000
Heating BTU9000
Maximum CFM145-420 CFM
Decibel Level (dBA)22-58
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical208/230v 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height11-5/8"
Width31-1/2"
Depth8-7/16"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
12,000 BTU Wall Mounted Daikin Mini Split Multi Zone FTXS - Air Handler
SKUFTXS12WVJU9
Weight22.000000
ManufacturerDaikin
Additional InformationDrain: 5/8"
Cooling BTU12000
Heating BTU12000
Maximum CFM155-438 CFM
Decibel Level (dBA)23-45
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical208/230v 1 Phase 60 Hz
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height11-5/8"
Width31-1/2"
Depth8-7/16"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
15,000 BTU Wall Mounted Daikin Mini Split Multi Zone FTXS - Air Handler
SKUFTXS15WVJU9
Weight31.000000
ManufacturerDaikin
Additional InformationDrain: 5/8"
Cooling BTU15000
Heating BTU15000
Maximum CFM360-593 CFM
Decibel Level (dBA)30-45
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230v 1 Phase 60 Hz
BTU/Tonnage15,000 BTU/1.25 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height13-3/8"
Width41-5/16"
Depth9-3/4"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
18,000 BTU Wall Mounted Daikin Mini Split Multi Zone FTXS - Air Handler
SKUFTXS18WVJU9
Weight31.000000
ManufacturerDaikin
Additional InformationDrain: 5/8"
Cooling BTU18000
Heating BTU18000
Maximum CFM378-417 CFM
Decibel Level (dBA)32-45
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230v 1 Phase 60 Hz
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height23-5/8"
Width27-9/16"
Depth 8-1/4"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
You're reviewing:Daikin Tri Zone Mini Split System - Design Your Own
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
