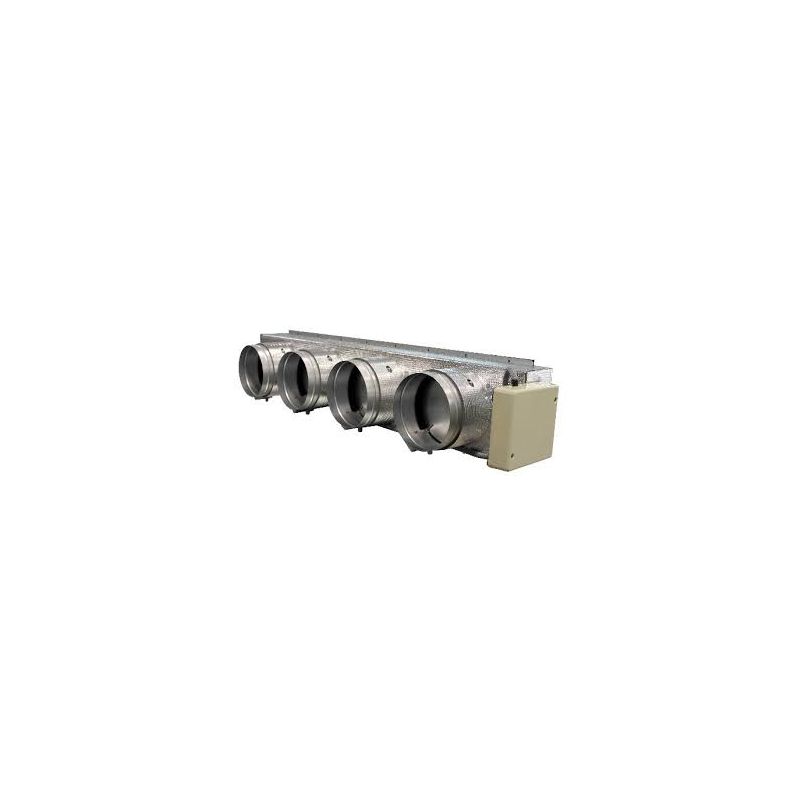

Daikin Zoning Kit - 4 Zone Box with 6" Take-Offs for Small FDMQ Ducted Mini Splits

The DZK increases the flexibility of Daikin FDMQ ducted systems by adding a zoning damper box for independent zone temperature control from a single indoor unit. This DZK has 4 zones with 6" take-offs. Multiple dampers can be wired together to supply a larger zone.

Features

• Each zone is capable of:
• Independent set point control
• Set point range limitation
• 7 day occupancy/usage scheduling
• Local ventilation mode
• Adjustable min/max zone opening position
• Option to link multiple outlets for larger zones
• Option to cap and close unused outlets
• Auto changeover logic including adjustable zone weighting
• Automatic control of fan speed based on each damper's demand
• Direct control integration to the Daikin indoor unit through the P1/P2 protocol
• Pre-assembled plenum box and simple bolt on design saves installation time
• Centralized zone control and monitoring when using DZK-BACNET-3

Compatible Indoor Units:

• FDMQ09RVJU
• FDMQ12RVJU

**Note: At least (1) DZK-MTS-3-W must be used for each 3rd generation DZK accessory.
