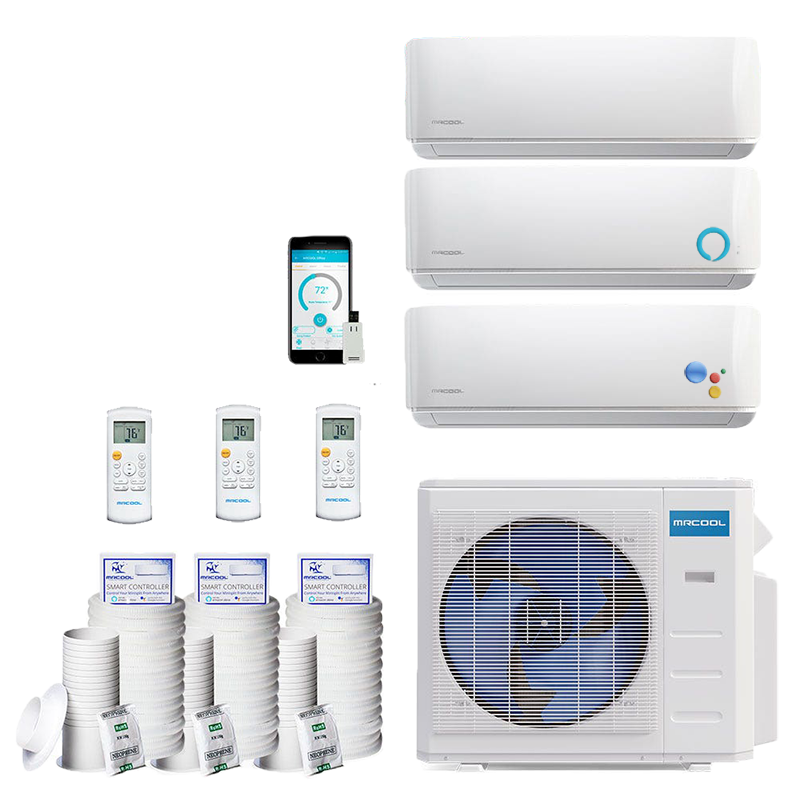

MRCOOL DIY 4th Gen 27,000 BTU 22 SEER Tri Zone Heat Pump System 9+9+9 - Wall Mounted-R410A

SAVE $0.00

Required Fields *

Customer reviews
Rating:
5 out of 5
Out of stock
By

MRCOOL

Out of stock

Model

DIYM327HPW00BK1

ID

83461

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
Equipment Pad and Risers Kit

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

More Information
MRCOOL DIY 4th Gen 27,000 BTU Multi-Zone Heat Pump Condenser-R410A
FeatureSpec
SKUDIY-MULTI3-27HP230
Weight (in lbs)145
AHRI Certificate Number205572571
Brand/ManufacturerMRCOOL
UPC810035931763
Cooling BTU27,000 BTU
Heating BTU27,000 BTU
RefrigerantR410A
SEER2 (Efficiency)22.5
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size35
Min. Breaker Size21
BTU/Tonnage27,000 BTU/2.25 Ton
Mini Split TypeWall Mounted
Height31-9/10"
Width37-1/4"
Depth16-1/5"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 9,000 BTU R410A 4th Gen Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
FeatureSpec
SKUDIY-09-HP-WMAH-230C25
Weight (in lbs)23.8
Brand/ManufacturerMRCOOL
UPC810063869533
Cooling BTU9,000 BTU
Heating BTU9,000 BTU
Decibel Level (dBA)25-40 dBA
RefrigerantR410A
SEER1 (Efficiency)22
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V | 1 Phase | 60Hz
Max Breaker Size15
Min. Breaker Size3
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Height11.69"
Width31.57"
Depth7.44"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 9,000 BTU R410A 4th Gen Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
FeatureSpec
SKUDIY-09-HP-WMAH-230C25
Weight (in lbs)23.8
Brand/ManufacturerMRCOOL
UPC810063869533
Cooling BTU9,000 BTU
Heating BTU9,000 BTU
Decibel Level (dBA)25-40 dBA
RefrigerantR410A
SEER1 (Efficiency)22
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V | 1 Phase | 60Hz
Max Breaker Size15
Min. Breaker Size3
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Height11.69"
Width31.57"
Depth7.44"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 9,000 BTU R410A 4th Gen Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
FeatureSpec
SKUDIY-09-HP-WMAH-230C25
Weight (in lbs)23.8
Brand/ManufacturerMRCOOL
UPC810063869533
Cooling BTU9,000 BTU
Heating BTU9,000 BTU
Decibel Level (dBA)25-40 dBA
RefrigerantR410A
SEER1 (Efficiency)22
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V | 1 Phase | 60Hz
Max Breaker Size15
Min. Breaker Size3
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Height11.69"
Width31.57"
Depth7.44"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
FeatureSpec
SKU87762
Weight (in lbs)5
Brand/ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Working great
    Price
    100%
    Service
    100%
    Quality
    100%
    Have received all the new equipment. It appears everything is there. So we should have no problem installing it. And the equipment already in place, is working great. Thank you so much for your hard work to get all we need.

    Review by

    Posted on

Customer Questions
Looking for system that can function as dehumidifier as well ...for basement install.
Mini splits naturally dehumidify the spaces they are installed. They can also be run on a low setting to help with dehumidification. Mini splits, however, are not a true dehumidifier in the sense that they cannot be set to a humidity level. With that being said, mini splits do naturally dehumidify the space because of the humidity condensation due to the natural cooling process. For more assistance, please give us a call.
What are the dimensions of inside wall unit?
The dimensions are as follows for the air handler: 11.69"H x 31.57"W x 7.44"D.
What is the lowest temperature these are rated for on the heat cycle?
Hello! Thank you for contacting HVACDirect.com! The temperature range for this system in heating mode is -13°F~86°F.
