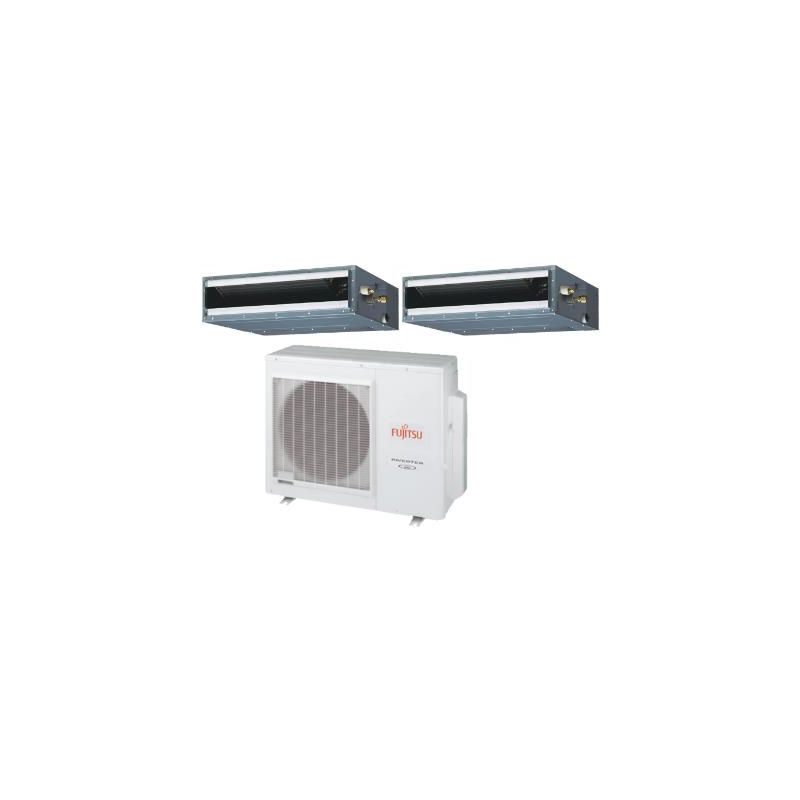

Fujitsu 18,000 BTU 16 SEER Dual Zone Heat Pump System 7+9 - Concealed Duct

Name: Fujitsu 18,000 BTU 16 SEER Dual Zone Heat Pump System 7+9 - Concealed Duct
Brand: Fujitsu
SKU: AOU18RLXFZ / ARU7RLF / ARU9RLF
Availability: OutOfStock

Required Fields *

Customer reviews

Rating:

5 out of 5

5 out of 5 View All 1 Review Add Your Review

Out of stock

Fujitsu

Out of stock

Model

AOU18RLXFZ / ARU7RLF / ARU9RLF

22336

Description

The Fujitsu Dual Zone Mini Split Systems are state of the art mini split heat pump systems, providing both heating and cooling for your home. Rated at 16 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own electronic temperature controller.

Product Specs

More Information
18,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser
Feature	Spec
SKU	AOU18RLXFZ
Weight (in lbs)	100
Brand/Manufacturer	Fujitsu
UPC	689526843379
Cooling BTU	21000
Heating BTU	22000
Refrigerant	R410A
HSPF	9.3
SEER1 (Efficiency)	18-20
Liquid Valve Size	1/4" x2
Suction Valve Size	3/8" x2
Electrical	208/230 V. 1 Phase 60 Hz
Max Breaker Size	15
Min. Breaker Size	13
Amperage Requirement	15
Tonnage	1.5 Ton
Valve Type	Flare
Height	27 9/16"
Width	35 7/16"
Depth	13"
Warranty	Please Note: Fujitsu does not offer warranty for online purchases
Resources	Submittal Installation Manual Design and Technical Manual Service Instruction Service Manual Brochure Additional Information You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Fujitsu Halcyon 7,000 BTU Ducted Concealed Duct Air Handler
Feature	Spec
SKU	ADUH07LUAS1
Weight (in lbs)	25
Brand/Manufacturer	Fujitsu
Cooling BTU	7000
Heating BTU	8100
Maximum CFM	324
Refrigerant	R410A
Liquid Valve Size	1/4"
Suction Valve Size	3/8"
Electrical	208/230 V. 1 Phase 60 Hz
Tonnage	0.5 Ton
Valve Type	Flare
Height	7 13/16"
Width	27 9/16"
Depth	24 7/16"
Warranty	Please Note: Fujitsu does not offer warranty for online purchases
Resources	Submittal Operating Manual Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Fujitsu Halcyon 9,000 BTU Ducted Concealed Duct Air Handler
Feature	Spec
SKU	ADUH09LUAS1
Weight (in lbs)	25
Brand/Manufacturer	Fujitsu
UPC	689526843744
Cooling BTU	9000
Heating BTU	12000
Maximum CFM	353
Refrigerant	R410A
Liquid Valve Size	1/4"
Suction Valve Size	3/8"
Electrical	208/230 V. 1 Phase 60 Hz
Tonnage	0.75 Ton
Valve Type	Flare
Height	7 13/16"
Width	27 9/16"
Depth	24 7/16"
Warranty	Please Note: Fujitsu does not offer warranty for online purchases
Resources	Submittal Operating Manual Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
