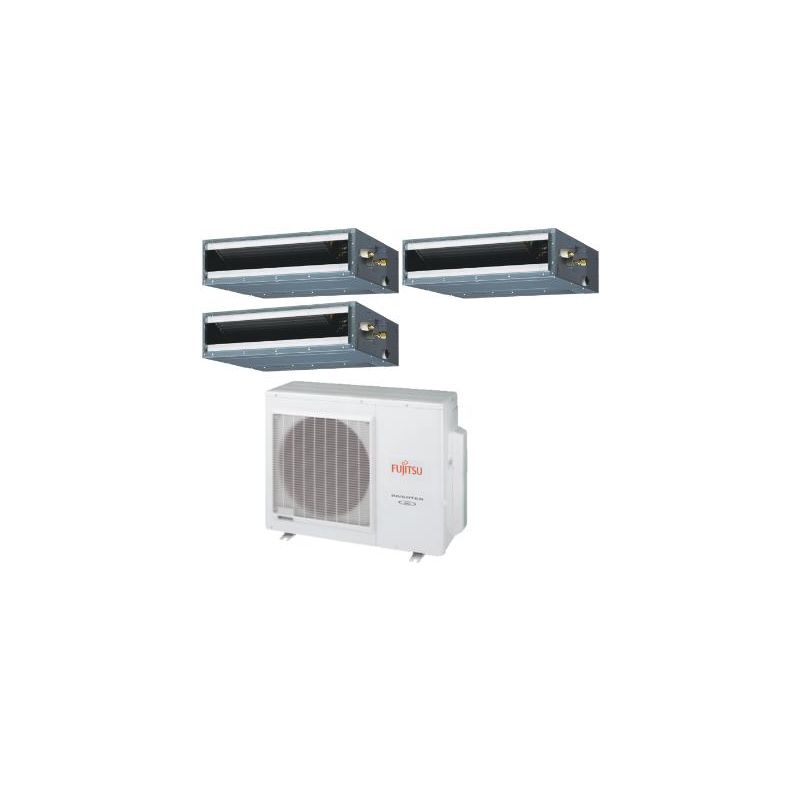

Fujitsu 24,000 BTU 15.5 SEER Tri Zone Heat Pump System 7+7+9 - Concealed Duct

By

Fujitsu

Model

AOU24RLXFZ / 2-ARU7RLF / ARU9RLF

ID

22372

Authorized Fujitsu Dealer

Suggested Retail $4,744.35
Your Low Price $4,507.12


Please enter your room sizes to narrow your results

Room #1

Room #2

Room #3

Free Shipping

Required Fields *

Customize Fujitsu 24,000 BTU 15.5 SEER Tri Zone Heat Pump System 7+7+9 - Concealed Duct
24,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser
24,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser   + $2,019.30
Fujitsu Halcyon 7,000 BTU Ducted Concealed Duct Air Handler
Fujitsu Halcyon 7,000 BTU Ducted Concealed Duct Air Handler   + $819.38
Fujitsu Halcyon 7,000 BTU Ducted Concealed Duct Air Handler
Fujitsu Halcyon 7,000 BTU Ducted Concealed Duct Air Handler   + $819.38
Fujitsu Halcyon 9,000 BTU Ducted Concealed Duct Air Handler
Fujitsu Halcyon 9,000 BTU Ducted Concealed Duct Air Handler   + $849.06
Fujitsu 24,000 BTU 15.5 SEER Tri Zone Heat Pump System 7+7+9 - Concealed Duct

$4,507.12

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

The Fujitsu Tri Zone Mini Split Systems are state of the art mini split heat pump systems, providing both heating and cooling for your home. Rated at 15.5 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own electronic temperature controller.

24,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser

The Fujitsu Ductless Mini Split AOU24RLXFZ Heat Pump Air Conditioner Condenser has an INVERTER-driven compressor pump that cools or warms refrigerant and sends it inside to an air handler through small pipes. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

With the Fujitsu Ductless Mini Split AOU24RLXFZ Heat Pump Air Conditioner Multi zone condenser each room or zone operates independently with its own wireless or wired remote controller so people in different rooms can choose the temperature that makes them most comfortable. This unit will work with a variety of indoor unit combinations; with indoor options such as Wall mounted ductless, Floor mounted ductless, Ceiling recessed cassette ductless, horizontal ducted ductless or even multi position ducted air handlers.

Fujitsu Halcyon 7,000 BTU Ducted Concealed Duct Air Handler

The Fujitsu ADUH07LUAS1 (previous sku ARU7RLF) Air Handler is a perfect fit for your home. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room. The ARU7RLF combines an ion deodorization filter with an enzyme-based filter for managing allergens. With a mini-split, more air changes over the coil in 24 hours than in a central air system, doing a better job filtering out allergens. By adjusting the cooling set point and swinging the horizontal vanes, the unit can improve the efficiency of operation without compromising the comfort provided.

Fujitsu General is using ergonomics to expand the use of user friendly designs such as easy-to-read large LCD displays, easy-to-operate buttons, and displays with easily recognizable colors and icons. They are producing control systems that provide greater convenience for both individual and centralized control with operability suitable for the application. Many systems provide dehumidification, even when cooling isn't needed. Additionally, you can set timers - 24-hour timer and sleep timer - for your convenience.

Fujitsu Halcyon 9,000 BTU Ducted Concealed Duct Air Handler

The Fujitsu ADUH09LUAS1 (previous sku ARU9RLF) Air Handler is a perfect fit for your home. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room. The ARU9RLF combines an ion deodorization filter with an enzyme-based filter for managing allergens. With a mini-split, more air changes over the coil in 24 hours than in a central air system, doing a better job filtering out allergens. By adjusting the cooling set point and swinging the horizontal vanes, the unit can improve the efficiency of operation without compromising the comfort provided.

Fujitsu General is using ergonomics to expand the use of user friendly designs such as easy-to-read large LCD displays, easy-to-operate buttons, and displays with easily recognizable colors and icons. They are producing control systems that provide greater convenience for both individual and centralized control with operability suitable for the application. Many systems provide dehumidification, even when cooling isn't needed. Additionally, you can set timers - 24-hour timer and sleep timer - for your convenience.

Product Specifications

More Information
24,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser
SKUAOU24RLXFZ
Weight (in lbs)100.000000
Brand/ManufacturerFujitsu
HSPF9.5
Cooling BTU22000
Heating BTU24000
RefrigerantR410A
SEER1 (Efficiency)18-20
Liquid Valve Size1/4" x3
Suction Valve Size3/8" x2, 1/2" x1
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size20
Min. Breaker Size17
Amperage Requirement20
Tonnage2 Ton
Valve TypeFlare
Height27 9/16"
Width35 7/16"
Depth13"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Fujitsu Halcyon 7,000 BTU Ducted Concealed Duct Air Handler
SKUADUH07LUAS1
Weight (in lbs)25.000000
Brand/ManufacturerFujitsu
Cooling BTU7000
Heating BTU8100
Maximum CFM324
RefrigerantR410A
Liquid Valve Size1/4"
Suction Valve Size3/8"
Electrical208/230 V. 1 Phase 60 Hz
Tonnage0.5 Ton
Valve TypeFlare
Height7 13/16"
Width27 9/16"
Depth24 7/16"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Fujitsu Halcyon 9,000 BTU Ducted Concealed Duct Air Handler
SKUADUH09LUAS1
Weight (in lbs)25.000000
Brand/ManufacturerFujitsu
Cooling BTU9000
Heating BTU12000
Maximum CFM353
RefrigerantR410A
Liquid Valve Size1/4"
Suction Valve Size3/8"
Electrical208/230 V. 1 Phase 60 Hz
Tonnage0.75 Ton
Valve TypeFlare
Height7 13/16"
Width27 9/16"
Depth24 7/16"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
