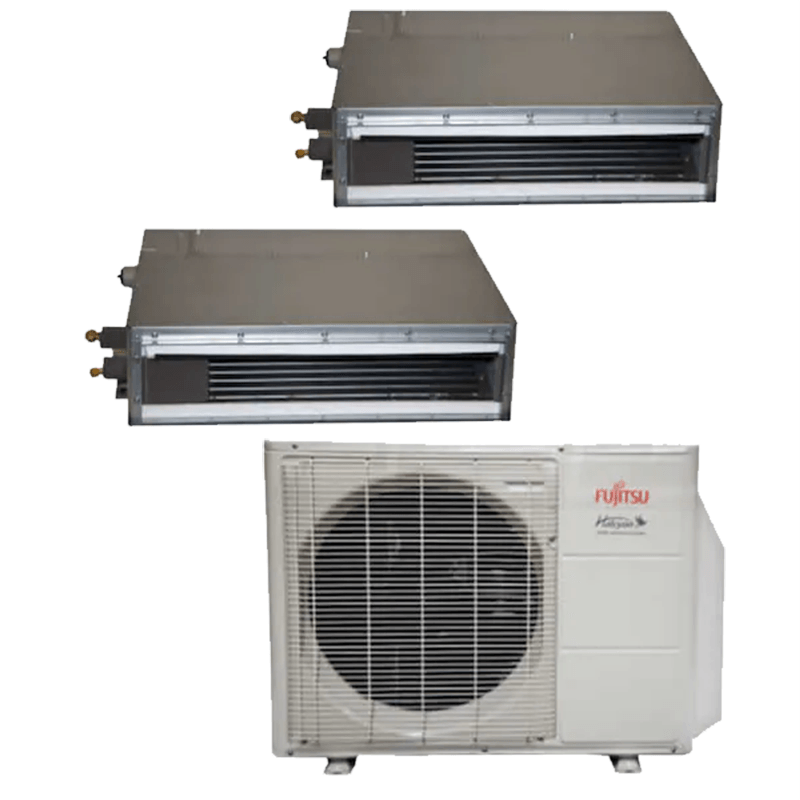

Fujitsu 24,000 BTU 18 SEER Dual Zone Heat Pump System 7+9 - Concealed Duct

Fujitsu 24,000 BTU 18 SEER Dual Zone Heat Pump System 7+9 - Concealed Duct

Required Fields *

Customer reviews
Rating:
4.6 out of 5
Out of stock
By

Fujitsu

Out of stock

Model

AOU24RLXFZH / ARU7RLF / ARU9RLF

ID

22414

The Fujitsu Dual Zone Mini Split Systems are state of the art mini split heat pump systems, providing both heating and cooling for your home. Rated at 18 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own electronic temperature controller.

More Information
24,000 BTU Fujitsu Halcyon Multi-Zone Ductless XLTH Heat Pump Condenser w/ Base Pan Heater
FeatureSpec
SKUAOU24RLXFZH
Weight (in lbs)100
Brand/ManufacturerFujitsu
UPC689526843461
Cooling BTU22000
Heating BTU25000
RefrigerantR410A
HSPF10.3
SEER1 (Efficiency)18-20
Liquid Valve Size1/4" x3
Suction Valve Size3/8" x2, 1/2" x1
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size30
Min. Breaker Size25.1
Amperage Requirement30
Tonnage2 Ton
Valve TypeFlare
Height32 11/16"
Width35 7/16"
Depth13"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Fujitsu Halcyon 7,000 BTU Ducted Concealed Duct Air Handler
FeatureSpec
SKUADUH07LUAS1
Weight (in lbs)25
Brand/ManufacturerFujitsu
Cooling BTU7000
Heating BTU8100
Maximum CFM324
RefrigerantR410A
Liquid Valve Size1/4"
Suction Valve Size3/8"
Electrical208/230 V. 1 Phase 60 Hz
Tonnage0.5 Ton
Valve TypeFlare
Height7 13/16"
Width27 9/16"
Depth24 7/16"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Fujitsu Halcyon 9,000 BTU Ducted Concealed Duct Air Handler
FeatureSpec
SKUADUH09LUAS1
Weight (in lbs)25
Brand/ManufacturerFujitsu
UPC689526843744
Cooling BTU9000
Heating BTU12000
Maximum CFM353
RefrigerantR410A
Liquid Valve Size1/4"
Suction Valve Size3/8"
Electrical208/230 V. 1 Phase 60 Hz
Tonnage0.75 Ton
Valve TypeFlare
Height7 13/16"
Width27 9/16"
Depth24 7/16"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
