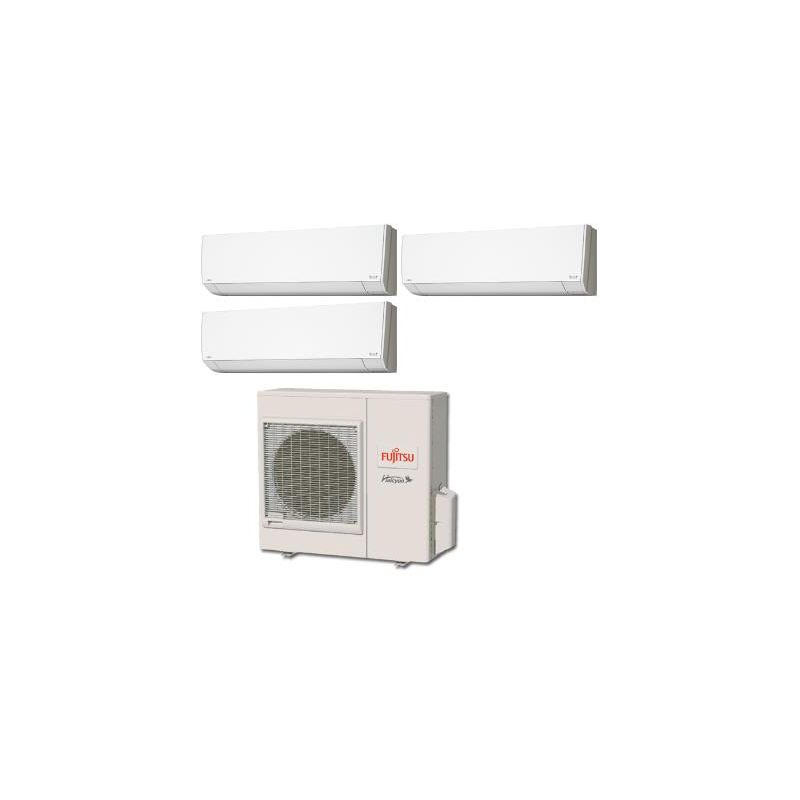

Fujitsu 36,000 BTU 18 SEER Tri Zone Heat Pump System 7+12+12 - Wall Mounted

By

Fujitsu

In stock

Model

AOU36RLXFZ1 / ASU7RLF1 / 2-ASU12RLF1

ID

22512

Rating:
60% of 100
Availability: In Stock - Ready to Ship

Authorized Fujitsu Dealer

Suggested Retail $5,226.36
Your Low Price $4,965.04


Please enter your room sizes to narrow your results

Room #1

Room #2

Room #3

Free Shipping

Required Fields *

Customize Fujitsu 36,000 BTU 18 SEER Tri Zone Heat Pump System 7+12+12 - Wall Mounted
36,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser
36,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser   + $3,133.36
7k BTU Wall Mounted (up to 250 sq ft)
7k BTU Wall Mounted (up to 250 sq ft)   + $532.12
12k BTU Wall Mounted (400 - 550 sq ft)
12k BTU Wall Mounted (400 - 550 sq ft)   + $649.78
12k BTU Wall Mounted (400 - 550 sq ft)
12k BTU Wall Mounted (400 - 550 sq ft)   + $649.78
Fujitsu 36,000 BTU 18 SEER Tri Zone Heat Pump System 7+12+12 - Wall Mounted

$4,965.04

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

The Fujitsu Tri Zone Mini Split Systems are state of the art mini split heat pump systems, providing both heating and cooling for your home. Rated at 18 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own electronic temperature controller.

36,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser

The Fujitsu Ductless Mini Split AOU36RLXFZ1 Heat Pump Air Conditioner Condenser has an INVERTER-driven compressor pump that cools or warms refrigerant and sends it inside to an air handler through small pipes. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

With the Fujitsu Ductless Mini Split AOU36RLXFZ1 Heat Pump Air Conditioner Multi zone condenser each room or zone operates independently with its own wireless or wired remote controller so people in different rooms can choose the temperature that makes them most comfortable. This unit will work with a variety of indoor unit combinations; with indoor options such as Wall mounted ductless, Floor mounted ductless, Ceiling recessed cassette ductless, horizontal ducted ductless or even multi position ducted air handlers.

Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler

The Fujitsu ASU7RLF1 Air Handler is a perfect fit for your home. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room. The ASU7RLF1 combines an ion deodorization filter with an enzyme-based filter for managing allergens. With a mini-split, more air changes over the coil in 24 hours than in a central air system, doing a better job filtering out allergens. By adjusting the cooling set point and swinging the horizontal vanes, the unit can improve the efficiency of operation without compromising the comfort provided.

Fujitsu General is using ergonomics to expand the use of user friendly designs such as easy-to-read large LCD displays, easy-to-operate buttons, and displays with easily recognizable colors and icons. They are producing control systems that provide greater convenience for both individual and centralized control with operability suitable for the application. Many systems provide dehumidification, even when cooling isn't needed. Additionally, you can set timers - 24-hour timer and sleep timer - for your convenience.

Fujitsu Halcyon 12,000 BTU Ductless Wall Mounted Air Handler

The Fujitsu ASU12RLF1 Air Handler is a perfect fit for your home. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room. The ASUH12LPAS combines an ion deodorization filter with an enzyme-based filter for managing allergens. With a mini-split, more air changes over the coil in 24 hours than in a central air system, doing a better job filtering out allergens. By adjusting the cooling set point and swinging the horizontal vanes, the unit can improve the efficiency of operation without compromising the comfort provided.

Fujitsu General is using ergonomics to expand the use of user friendly designs such as easy-to-read large LCD displays, easy-to-operate buttons, and displays with easily recognizable colors and icons. They are producing control systems that provide greater convenience for both individual and centralized control with operability suitable for the application. Many systems provide dehumidification, even when cooling isn't needed. Additionally, you can set timers - 24-hour timer and sleep timer - for your convenience.

Product Specifications

More Information
36,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser
SKUAOU36RLXFZ1
Weight (in lbs)100.000000
Brand/ManufacturerFujitsu
HSPF9.4
Cooling BTU35200
Heating BTU36400
RefrigerantR410A
SEER1 (Efficiency)18-20
Liquid Valve Size1/4" x4
Suction Valve Size3/8" x3, 1/2" x1
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size30
Min. Breaker Size24.6
Amperage Requirement30
Tonnage3 Ton
Valve TypeFlare
Height32 11/16"
Width35 7/16"
Depth13"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler
SKUASU7RLF1
Weight (in lbs)21.000000
Brand/ManufacturerFujitsu
Cooling BTU7000
Heating BTU7000
Maximum CFM330
RefrigerantR410A
Liquid Valve Size1/4"
Suction Valve Size3/8"
Electrical208/230 V. 1 Phase 60 Hz
Tonnage0.5 Ton
Valve TypeFlare
Height10 9/16"
Width33 1/16"
Depth8"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Fujitsu Halcyon 12,000 BTU Ductless Wall Mounted Air Handler
SKUASU12RLF1
Weight (in lbs)25.000000
Brand/ManufacturerFujitsu
Cooling BTU12000
Heating BTU16000
Maximum CFM388
RefrigerantR410A
Liquid Valve Size1/4"
Suction Valve Size3/8"
Electrical208/230 V. 1 Phase 60 Hz
Tonnage1.0 Ton
Valve TypeFlare
Height10 9/16"
Width33 1/16"
Depth8"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.

Reviews 2

Write Your Own Review
You're reviewing:Fujitsu 36,000 BTU 18 SEER Tri Zone Heat Pump System 7+12+12 - Wall Mounted
Your Rating

Questions and Answers

Customer Questions
Is a remote controller included?
Yes, remote controller is included with this unit. If you have any further questions please feel free to give us a call! Thanks.
