AHRI Number:200686008
Save up to 70% off Local HVAC Prices

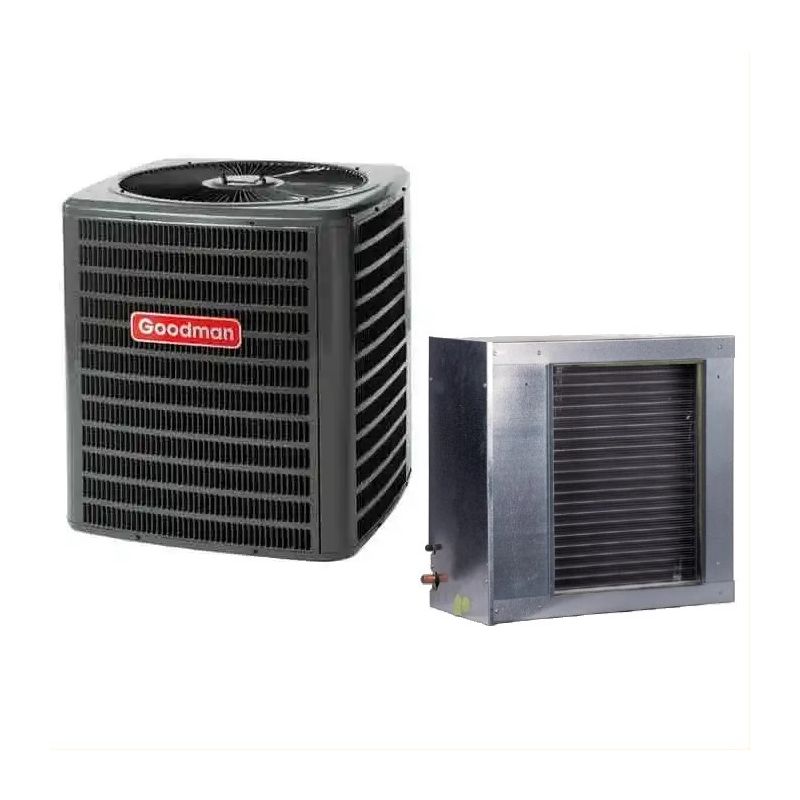

The Goodman GSX130181 is a cooling-only condenser unit. Providing a 13 SEER efficiency with a single stage, reciprocating compressor, the GSX130181 is an inexpensive condenser to cool your home when paired with an AC coil.
The GSX130181 condenser is a 1.5 ton AC only unit. In an ideal climate situation, the GSX130181 can usually cover a smaller house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.
The Goodman GSX130181 AC condenser is designed to be 13 SEER. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.
Due to new efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.
The GSX130181 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
With an enhanced copper tube and aluminum fin coil, the GSX130181 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser's heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.
The Goodman GSX130181 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.
The Goodman brand always has its customer's comfort in mind. The GSX130181 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.
Designed for use in primarily low-airflow resistance installations, the Goodman CSCF1824N6 slab coil has a low profile, allowing it to fit in tight spaces while maintaining an inexpensive cost.
At an output of 1.5 to 2 tons, the Goodman CSCF1824N6 evaporator coil is ready for almost any horizontal application that matches your output needs. In entire system configurations, the coil will be either larger or the same size as the condenser’s tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit’s efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace the coil in a single-piece air handler.
Goodman offers a 10 year parts warranty on the CSCF1824N6 when it is installed following your state and local codes, when a compatible R410A condenser is used, and when the entire system is registered online through the manufacturer.
With its small form factor, the Goodman CSCF1824N6 horizontal slab evaporator coil is designed for tight installation spaces. The copper sweat connections allow for faster installation, saving you money. There is a factory-implemented rust-resistant, high-temperature thermoplastic drain pan with multiple drain connections, making it reliable even with a high amount of water coming off the unit due to humidity. The copper tube and aluminum fin coil is designed to be durable for constant use, giving you the peace of mind that your unit will run when you need it most.
| 1.5 Ton 13 SEER Goodman Air Conditioner Condenser | |
|---|---|
| SKU | GSX130181 |
| Weight (in lbs) | 120.000000 |
| Brand/Manufacturer | Goodman |
| Cooling BTU | 18,000 |
| Decibel Level (dBA) | 74 |
| Energy Star | No |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 13 |
| Condenser Stages | Single Stage |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Liquid Valve Size | 3/8" |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size | 15 amps |
| Min. Breaker Size | 9.1 amps |
| Tonnage | 1.5 Ton |
| Valve Type | Sweat |
| Height | 25.75" |
| Width | 23" |
| Depth | 23" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 1.5 to 2 Ton Horizontal Slab Goodman Evaporator Coil | |
| SKU | CSCF1824N6 |
| Weight (in lbs) | 42.000000 |
| Brand/Manufacturer | Goodman |
| Configuration | Horizontal |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 2 Ton |
| Style | Slab |
| Height | 25" |
| Width | 25.5" |
| Depth | 12" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 1.5 Ton ACIQ Hybrid Upgrade | |
| SKU | ACIQ-2X-EHPB-UPG |
| Weight (in lbs) | 120.000000 |
| Brand/Manufacturer | ACiQ |
| Refrigerant | R410A |
| Safety Information | PROPOSITION 65 WARNING |
| No Thank You | |
| SKU | NOTHANKYOU |
| Weight (in lbs) | 120.000000 |
For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
