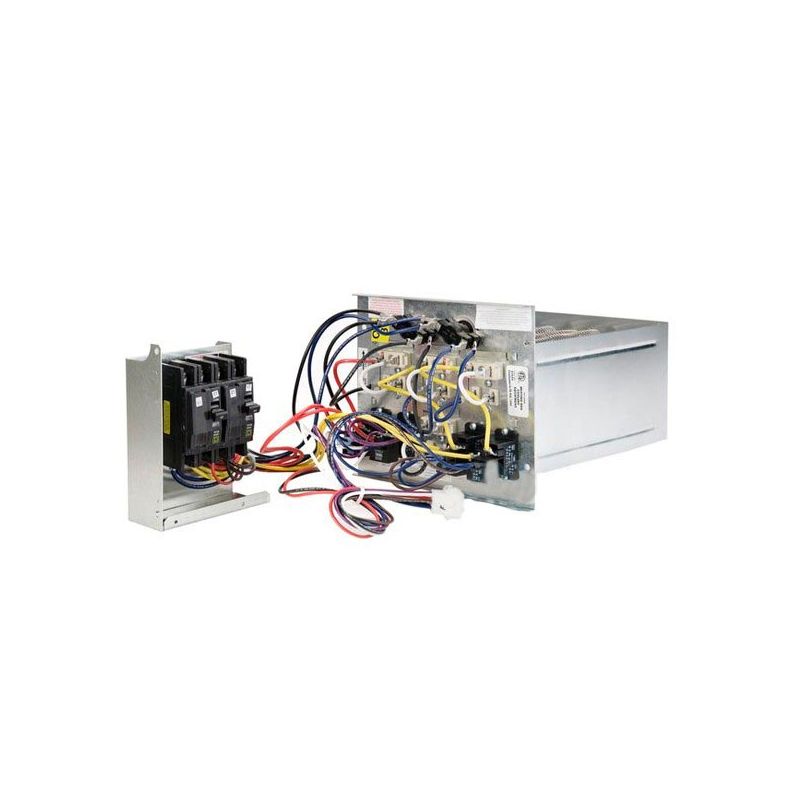

19 Kilowatt 64,800 BTU Goodman Heater Coil

By

Goodman

Out of stock
Model

HKSC19CB

ID

581

This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.

Produces 64,800 BTUs of heat.

Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.

If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed.

Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.

Compatible With

  • Goodman ARPT36C14 Air Handlers
  • Goodman ARUF30C14 Air Handlers
  • Goodman ARUF36C14 Air Handlers
  • Goodman ARUF42C14 Air Handlers
  • Goodman ASPT36C14 Air Handlers
  • Goodman ASPT42C14 Air Handlers
  • Goodman ASPT48C14 Air Handlers
  • Goodman ASUF39C14 Air Handlers
  • Goodman ASUF49C14 Air Handlers
  • Goodman AVPTC36C14 Air Handlers
  • Goodman AVPTC48C14 Air Handlers
More Information
19 Kilowatt 64,800 BTU Goodman Heater Coil
SKUHKSC19CB
Weight (in lbs)9.000000
Brand/ManufacturerGoodman
Heating BTU64,800
Electric Heat19 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker SizeCircuit 1: 60 amps / Circuit 2: 50 amps
Min. Breaker SizeCircuit 1: 57 amps / Circuit 2: 50 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
You're reviewing:19 Kilowatt 64,800 BTU Goodman Heater Coil
Your Rating
Customer Questions
I need a heat cool that will fit a Lennox Forced air furnace with cooling unit
Yes, you can switch to an electric heat coil. Please give us a call at 888-295-3941and one of our agents can walk through your specific needs and help you find the best solution.
What's the right 19 kilowatt heat kit model for ARUF43C14?
The heat kit you want is model HKSC19CB. As of 12/12/22, we currently have the kit in stock and it can be shipped out shortly after being ordered. If you have any further questions, please call us and we will be happy to assist you.
Will this fit my model ARUF37C14AD air handler?
Yes, this will fit your air handler. If you have any further questions, please call us and we will be happy to assist you.
Will this fit an old 2010 Goodman Amana ARUF374316CA?
According to the install manual for the ARUF374316CA, this kit will not work. The kit you want is part of the HKR series of electric heat kits - The beginning of its model number will be that "HKR". If you have any further questions, please call us and we will be happy to assist you.
