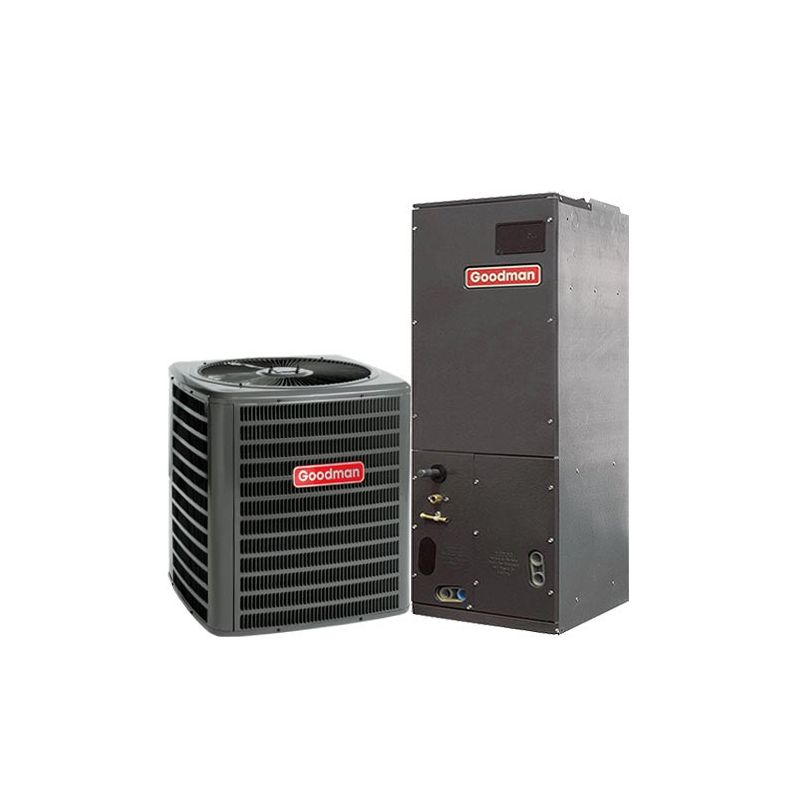

The Goodman GSZ140301 Heat Pump uses the chlorine-free refrigerant R-410A to help prevent damage to the Ozone Layer. This unit is equipped with sound-dampening features to provide operating sound levels are among the lowest in the heating and cooling industry.
The Goodman ASPT37C14 Multi-Position Air Handler with EEM (Energy-Saving) Motor is suitable for use with R-410A refrigerant and may be installed in a variety of locations. This air handler features a SmartFrame sub-structure that adds lateral stability, mounting locations for internal components, and additional insulation retention.
The Goodman GSZ140301 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman’s equipment, the GSZ140301 is manufactured with high-quality materials to provide a superior comfort in your home.
The Goodman GSZ140301 heat pump has a capacity of 2.5 tons. In an ideal climate, this tonnage will normally cover up to a medium-sized house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit’s overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.
At 14 SEER, the GSZ140301 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER ratings. If you are replacing an existing heat pump, in most cases this SEER rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.
The GSZ140301 condenser comes with Goodman’s standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
The Goodman GSZ140301 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.
The Goodman GSZ140301 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn’t have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.
With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GSZ140301 heat pump has some of the lowest sound outputs on a single stage unit on the market today.
The Goodman ASPT37C14 air handler is designed with an efficient, energy-saving EEM motor and durable cabinet with multiple features that provide an easy installation. With this model, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
The Goodman ASPT37C14 air handler is rated for an output of 3 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.
The ASPT37C14 comes with Goodman’s standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.
With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the Goodman ASPT37C14 air handler is durable in design, making it a reliable solution for your home.
The Goodman ASPT37C14 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there is both a top and a side panel to access vital areas on the air handler.
The ASPT37C14 air handler lives up to Goodman’s comfort expectations with its multi-speed EEM motor, which provides a more precise and efficient temperature control.
The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.
Produces 51,150 BTUs of heat.
Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.
If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed.
Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.
This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.
Produces 64,800 BTUs of heat.
Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.
If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed.
Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.
Goodman 2.5 Ton 14 SEER Heat Pump | |
---|---|
SKU | GSZ140301 |
Weight (in lbs) | 198.000000 |
Brand/Manufacturer | Goodman |
Replaces | GSZ140311 |
Cooling BTU | 30,000 |
Heating BTU | 30,000 |
Decibel Level (dBA) | 74 |
Energy Star | Yes |
Refrigerant | R410A |
SEER (Efficiency) | 14 |
Condenser Stages | Single Stage |
Compressor Type | Scroll |
Liquid Valve Size | 3/8" |
Suction Valve Size | 3/4" |
Electrical | 208 / 230 V. 1 Phase 60 Hz |
Max Breaker Size | 30 amps |
Min. Breaker Size | 18.7 amps |
Tonnage | 2.5 Ton |
Valve Type | Sweat |
Height | 38.25" |
Width | 29" |
Depth | 29" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
3 Ton Multi-Positional Goodman Air Handler | |
SKU | ASPT37C14 |
Weight (in lbs) | 160.000000 |
Brand/Manufacturer | Goodman |
Blower Motor | Multi Speed - EEM |
Maximum CFM | 1,470 |
Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 19 Kilowatts |
Refrigerant | R410A |
Filter Size | 19.5" x 20" |
Liquid Line | 3/8" |
Suction Line | 7/8" |
Electrical | 208/240 V, 1 Phase, 60 Hz |
Max Breaker Size | 15 amps |
Tonnage | 3 Ton |
Fuel Type | Electric |
Height | 53 7/16" |
Width | 21" |
Depth | 21" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
5 Kilowatt 16,200 BTU Goodman Heater Coil | |
SKU | HKSC05XC |
Weight (in lbs) | 8.000000 |
Brand/Manufacturer | Goodman |
Heating BTU | 16,200 |
Electric Heat | 5 Kilowatts |
Electrical | 208 / 230 / 240 Volts / 1 Phase |
Phase | Single Phase |
Max Breaker Size | 35 amps |
Min. Breaker Size | 32 amps |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
8 Kilowatt 23,800 BTU Goodman Heater Coil | |
SKU | HKSC08XC |
Weight (in lbs) | 9.000000 |
Brand/Manufacturer | Goodman |
Heating BTU | 23,800 |
Electric Heat | 8 Kilowatts |
Electrical | 208 / 230 / 240 Volts / 1 Phase |
Phase | Single Phase |
Max Breaker Size | 50 amps |
Min. Breaker Size | 48 amps |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
10 Kilowatt 34,100 BTU Goodman Heater Coil | |
SKU | HKSC10XC |
Weight (in lbs) | 9.000000 |
Brand/Manufacturer | Goodman |
Heating BTU | 34,100 |
Electric Heat | 10 Kilowatts |
Electrical | 208 / 230 / 240 Volts / 1 Phase |
Phase | Single Phase |
Max Breaker Size | 60 amps |
Min. Breaker Size | 57 amps |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
15 Kilowatt 51,150 BTU Goodman Heater Coil | |
SKU | HKSC15XB |
Weight (in lbs) | 9.000000 |
Brand/Manufacturer | Goodman |
Heating BTU | 51,150 |
Electric Heat | 15 Kilowatts |
Electrical | 208 / 230 / 240 Volts / 1 Phase |
Phase | Single Phase |
Max Breaker Size | Circuit 1: 60 amps / Circuit 2: 25 amps |
Min. Breaker Size | Circuit 1: 57 amps / Circuit 2: 25 amps |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
19 Kilowatt 64,800 BTU Goodman Heater Coil | |
SKU | HKSC19CB |
Weight (in lbs) | 9.000000 |
Brand/Manufacturer | Goodman |
Heating BTU | 64,800 |
Electric Heat | 19 Kilowatts |
Electrical | 208 / 230 / 240 Volts / 1 Phase |
Phase | Single Phase |
Max Breaker Size | Circuit 1: 60 amps / Circuit 2: 50 amps |
Min. Breaker Size | Circuit 1: 57 amps / Circuit 2: 50 amps |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set | |
SKU | LS38343830 |
Weight (in lbs) | 35.000000 |
Brand/Manufacturer | Online Supply |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Suction Line Insulation Thickness | 3/4" |
Length | 30 feet |
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set | |
SKU | LS38343850 |
Weight (in lbs) | 22.000000 |
Brand/Manufacturer | Online Supply |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Suction Line Insulation Thickness | 3/4" |
Length | 50 feet |
