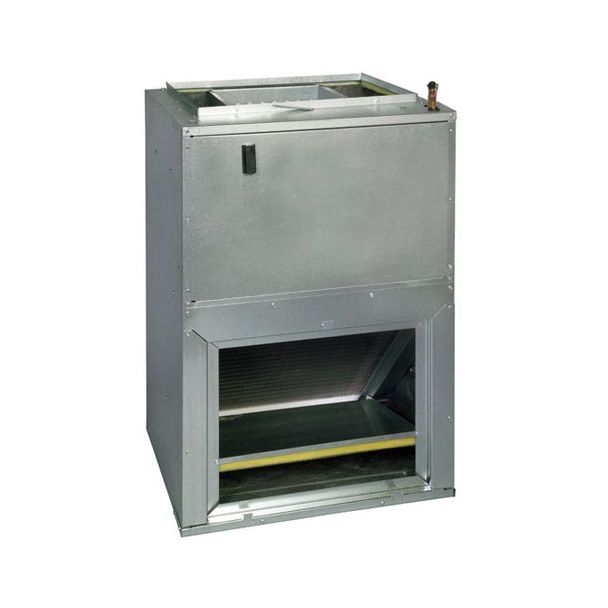

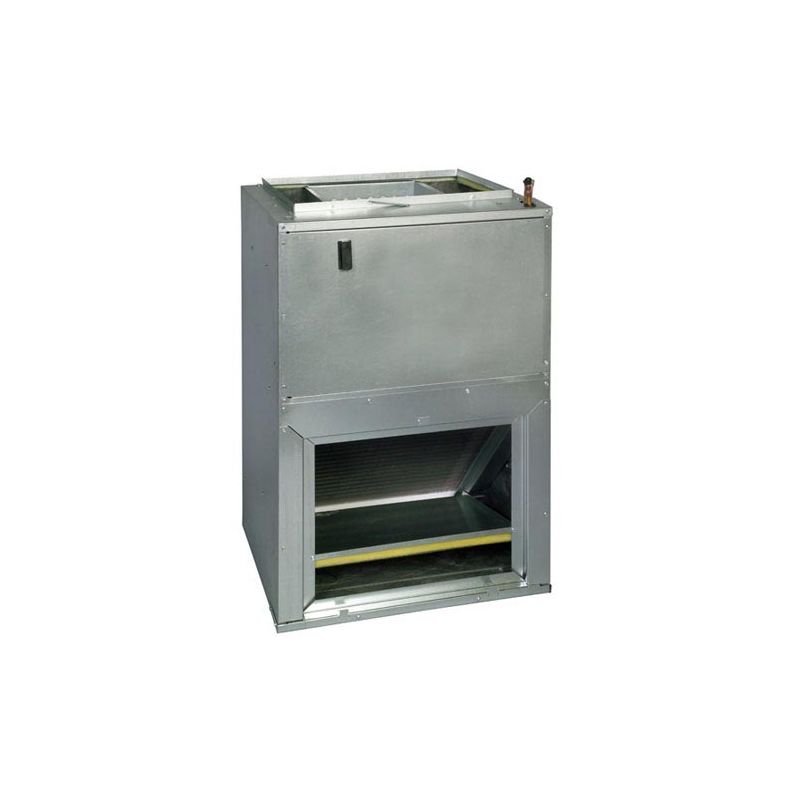

2.5 Ton Wall Mounted Goodman Air Handler w/ 8kW Heat

Goodman 2.5 Ton Wall Mounted Air Handler w/ 8kW Heat
2.5 Ton Wall Mounted Goodman Air Handler w/ 8kW Heat
By

Goodman

In stock
Model

AWSF30LU1608

ID

135344

Be the first to review this product
ONLY 1 LEFT!
$914.00

Free Shipping
Product Features
  • Can be installed vertically or wall-mounted orientation
  • Well-suited for small to medium homes in various climates
  • Certified for use with R410A refrigerant
  • Optional electric heat kits up to 8kW available

The Goodman AWSF Air Conditioner Air Handler is designed to be vertically wall or stud mounted. This Air Conditioner Air Handler is housed in a fully insulated, galvanized-steel cabinet. The Goodman Air Conditioning and Heating company have become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

  • Suitable for use with refrigerants R-410A
  • Equipped with a check flowrater for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating and cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tube coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2½- and 3-ton units) – front return only
  • Small chassis (1½- and 2-ton units) – front or bottom return
  • Wall-hanging bracket provided
More Information
2.5 Ton Wall Mounted Goodman Air Handler w/ 8kW Heat
SKUAWSF30LU1608
Weight (in lbs)109.000000
Brand/ManufacturerGoodman
Cooling BTU30,000 BTU
Blower MotorMulti Speed Direct Drive Motor
Maximum CFM1,168
Horsepower0.5
Electric Heat8 Kilowatts
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Electrical208-230V Single Phase 60 Hz
Max Breaker Size40/45 Amps
Min. Breaker Size37.7/43 Amps
Tonnage2.5 Ton
Fuel TypeElectric
Height36"
Width24"
Depth21"
Warranty10 Years Parts with Online Registration
