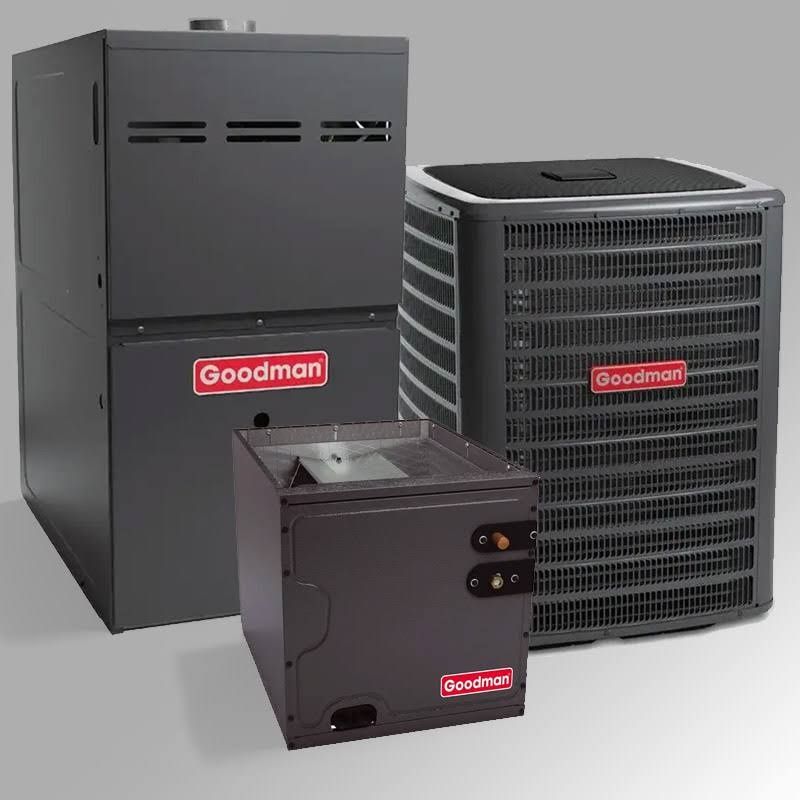

2 Ton 13 SEER 80% AFUE 60,000 BTU Goodman Gas Furnace and Air Conditioner System - Uplow
Model: GSX130241 / CAPF1824A6 / GMS80603AN
Low Price of:
$1,162.00
Details
The Goodman GMS8/GDS8 multi-position gas furnaces feature a patented aluminized steel tubular heat exchanger and high-efficiency hot surface ignition system. These furnaces are run-tested for heating or combination heating/cooling applications. With a heavy-gauge, reinforced, wrap-around insulated steel cabinet and durable baked enamel finish, these gas heaters can be installed in a utility room, closet, alcove, basement or attic. (Not intended for use in mobile homes.)
Furnace Features
- Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit.
- Corrosion-resistant, aluminized-steel tubular furnace heat exchanger
- Furnace is designed for multi-position installation - Goodman GMS8: upflow, horizontal right or left; Goodman GDS8: dedicated downflow
- Energy-saving, reliable hot surface ignition system with Goodman furnace patented adaptive learning algorithm to maximize igniter life
- Aluminized steel inshot gas furnace burners
- Energy-saving PSC, multi-speed, direct drive blower motor
- Quiet, corrosion-resistant induced draft furnace blower assembly
- Integrated Goodman furnace control with diagnostics
- Low voltage terminal blocks
- Multiple flame roll-out switches, blower door safety switch, outlet air-limit switch and pressure switch for proof of combustion air
- 40VA transformer for heating and air conditioning control service
- Combination redundant gas valve and regulator
- A rotating combustion air blower (Goodman GMS8) that provides the option of venting the furnace through the top, right-hand side or left-hand side
- Completely assembled, factory run-tested furnace for heating or combination heating/cooling application
- Furnace has heavy-gauge, reinforced, fully insulated steel cabinet with durable baked-enamel finish
- Attractive architectural gray paint finish
- Heater's foil-face insulation lines the heat exchanger compartment
- Coil and furnace fit flush for easy installation
- Convenient left or right connection for gas and electric service
- Bottom or side air inlet (Goodman GMS8)
- Removable, solid-bottom block off
- All “X” models comply with California NOx emissions standards
The Goodman GSX130241 Air Conditioner Condenser uses the chlorine-free refrigerant R-410A and features operating sound levels that are among the lowest in the heating and cooling industry. With its 13 SEER rating, The Goodman GSX130241 Air Conditioner Condenser will help reduce energy consumption throughout the life of the system. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
Please note that this product is regulated by DOE Efficiency Standards.
- R-410A chlorine-free refrigerant
- Factory-installed filter dryer
- Copper tube/enhanced aluminum fin coil
- Service valves with sweat connections and easy-access gauge ports
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
- Goodman brand louvered sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Baked-on powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
60,000 BTU 80% AFUE Upflow Single Stage Goodman Gas Furnace
The Goodman GMS80603AN gas furnace can be installed in either an upflow or horizontal configuration and features an aluminized steel tubular heat exchanger and high efficiency hot surface ignition system. These furnaces are run-tested for heating or combination heating and cooling applications. With its heavy-gauge, reinforced, wrap-around insulated steel cabinet and durable baked enamel finish, this gas furnace can be installed in a utility room, closet, alcove, basement or attic. Not intended for use in mobile homes.
The Goodman GMS80603AN furnace has a 80% AFUE rating which means that for every every $1.00 you spend, 80 cents goes towards heating your home.
This unit is not intended for purchase or install in California. For California please purchase a Low Nox furnace.
Furnace Features
- Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit.
- Corrosion-resistant, aluminized-steel tubular furnace heat exchanger
- Furnace is designed for upflow or horizontal installation
- Energy-saving, reliable hot surface ignition system with Goodman furnace patented adaptive learning algorithm to maximize igniter life
- Aluminized steel inshot gas furnace burners
- Energy-saving PSC, multi-speed, direct drive blower motor
- Quiet, corrosion-resistant induced draft furnace blower assembly
- Integrated Goodman furnace control with diagnostics
- Low voltage terminal blocks
- Multiple flame roll-out switches, blower door safety switch, outlet air-limit switch and pressure switch for proof of combustion air
- 40VA transformer for heating and air conditioning control service
- Combination redundant gas valve and regulator
- A rotating combustion air blower that provides the option of venting the furnace through the top, right-hand side or left-hand side
- Completely assembled, factory run-tested furnace for heating or combination heating/cooling application
- Furnace has heavy-gauge, reinforced, fully insulated steel cabinet with durable baked-enamel finish
- Attractive architectural gray paint finish
- Heater's foil-face insulation lines the heat exchanger compartment
- Coil and furnace fit flush for easy installation
- Convenient left or right connection for gas and electric service
- Bottom or side air inlet
- Removable, solid-bottom block off
To comply with efficiency requirements in California this unit will be automatically upgraded to the Low Nox Approved furnace when shipping to California
2 Ton 13 SEER Goodman Air Conditioner Condenser
The GSX130241 2 Ton Goodman air conditioner condenser is rated at 13 SEER and will help reduce energy consumption throughout the life of the system. This unit is equipped with sound-dampening features to provide operating sound levels are among the lowest in the heating and cooling industry. Using high-quality components,the Goodman GSX130241 air conditioner condenser is rated at 13 SEER and will help reduce energy consumption throughout the life of the system.
Please note that this product is regulated by DOE Efficiency Standards.
- R-410A chlorine-free refrigerant
- Factory-installed filter dryer
- Copper tube/enhanced aluminum fin coil
- Service valves with sweat connections and easy-access gauge ports
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
- Goodman brand louvered sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Baked-on powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
This unit (and all 13 SEER units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia
Click here to see the 14 SEER unit that is available in these states.
For more information about state efficiency requirements, please click here.
1.5 to 2 Ton 14" Width Goodman Vertical Evaporator Cased Coil
The Goodman CAPF1824A6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioning and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
- Suitable for use with R-410A and R-22 refrigerants
- Rust-resistant, thermoplastic drain pans feature a low water-retention design
- Check flowrater expansion device for heat pump or cooling-only applications
- Rifled aluminum tubing and louvered aluminum fin coils on the CAPF, CAUF, and CHPF coils
- AHRI Certified; ETL Listed
- Foil-face insulation
- Galvanized-steel, leather-grain finish
- Architectural Gray paint finish on CAPF and CHPF cased coils
- Split-seam front for easy access
- 17½”, 21”, and 24½” CAPF coils have two 1¾” adapter plates
60,000 BTU 80% AFUE Upflow Single Stage Goodman Gas Furnace
| sku | GMS80603AN |
|---|---|
| discontinued | Yes |
| product_banners | Limited Stock |
| manufacturer | Goodman |
| afue | 80% |
| heating_btu | 60,000 |
| blower_motor | Multi Speed - PSC |
| cfm | 1200 |
| configuration | Upflow/Horizontal |
| exhaust_pipe | Metal |
| flue_location | Top |
| flue_requirement | Metal |
| electrical | 120 V. 1 Phase 60 Hz |
| burner_stages | Single |
| fuel_type | Gas |
| height | 34.5" |
| width | 14" |
| depth | 28.75" |
| weight | 130.0000 |
| warranty | 10 Years with Online Registration |
| resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| safety_information |
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
PROPOSITION 65 WARNING |
2 Ton 13 SEER Goodman Air Conditioner Condenser
| sku | GSX130241 |
|---|---|
| manufacturer | Goodman |
| cooling_btu | 24,000 |
| decibel | 75 |
| refrigerant | R410A |
| seer | 13 |
| compressor_stage | Single Stage |
| compressor_type | Reciprocating |
| liquid_line | 3/8" |
| suction_line | 3/4" |
| liquid_valve_size | 3/8" |
| electrical | 208 / 230 V. 1 Phase 60 Hz |
| max_breaker_size | 15 amps |
| min_breaker_size | 10.3 amps |
| nominal_capacity | 2 Ton |
| valve_type | Sweat |
| height | 27.5" |
| width | 26" |
| depth | 26" |
| weight | 128.0000 |
| warranty | 10 Years with Online Registration |
| resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| safety_information | PROPOSITION 65 WARNING |
1.5 to 2 Ton 14" Width Goodman Vertical Evaporator Cased Coil
| sku | CAPF1824A6 |
|---|---|
| manufacturer | Goodman |
| configuration | Upflow / Downflow |
| refrigerant | R410A or R22 |
| liquid_line | 3/8" |
| suction_line | 3/4" |
| nominal_capacity | 1.5 Ton to 2 Ton |
| style | A-Coil |
| height | 18" |
| width | 14" |
| depth | 21" |
| weight | 35.0000 |
| warranty | 10 Years with Online Registration |
| resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| safety_information | PROPOSITION 65 WARNING |
