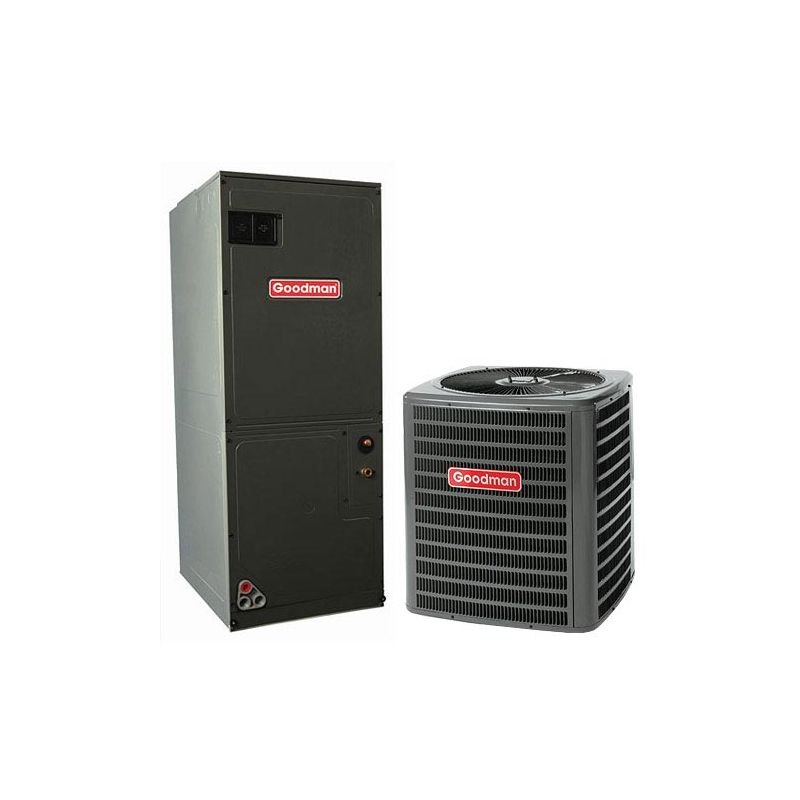

2 Ton 15 SEER Goodman Heat Pump Air Conditioner System

2 Ton 15 SEER Goodman Heat Pump Air Conditioner System

Required Fields *

By

Goodman

Out of stock

Model

SSZ160241 / ASPT30C14

ID

1565

The Goodman SSZ160241 16 SEER Heat Pump uses the environmentally friendly refrigerant R-410A and features energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. The SSZ160241 features a high-efficiency Copeland® scroll compressor and is designed for the consumer who desires superior comfort, quiet operation, and environmentally friendly performance.

The Goodman ASPT30C14 Multi-Position Air Handler with EEM (Energy-Saving) Motor is suitable for use with R-410A refrigerant and may be installed in a variety of locations. This air handler features a SmartFrame sub-structure that adds lateral stability, mounting locations for internal components, and additional insulation retention.

More Information
2.5 Ton Multi-Positional Goodman Air Handler
FeatureSpec
SKUASPT30C14
Weight (in lbs)118
Brand/ManufacturerGoodman
UPC663051518940
Blower MotorMulti Speed - EEM
Maximum CFM1,450
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 8 Kilowatts, 10 Kilowatts
RefrigerantR410A
Filter Size19.5" x 20"
Liquid Line3/8"
Suction Line7/8"
Electrical208/240 V, 1 Phase, 60 Hz
Max Breaker Size15 amps
Min. Breaker Size4 amps
Tonnage2.5 Ton
Fuel TypeElectric
Height49"
Width21"
Depth21"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Goodman 2 Ton 16 SEER Heat Pump
FeatureSpec
SKUSSZ160241
Weight (in lbs)208
Brand/ManufacturerGoodman
UPC689526850506
Cooling BTU24,000
Heating BTU24,000
Decibel Level (dBA)72
Energy StarNo
RefrigerantR410A
SEER1 (Efficiency)16
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208 / 230 V. 1 Phase 60 Hz
Max Breaker Size30 amps
Min. Breaker Size17.9 amps
Tonnage2 Ton
Valve TypeSweat
Height38.25"
Width29"
Depth29"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
5 Kilowatt 16,200 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC05XC
Weight (in lbs)8
Brand/ManufacturerGoodman
UPC650361147441
Heating BTU16,200
Electric Heat5 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size35 amps
Min. Breaker Size32 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
8 Kilowatt 23,800 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC08XC
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC650361147311
Heating BTU23,800
Electric Heat8 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size50 amps
Min. Breaker Size48 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
10 Kilowatt 34,100 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC10XC
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC650361147335
Heating BTU34,100
Electric Heat10 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size60 amps
Min. Breaker Size57 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:2 Ton 15 SEER Goodman Heat Pump Air Conditioner System
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose a Goodman Product?
Why Choose Goodman?

For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
