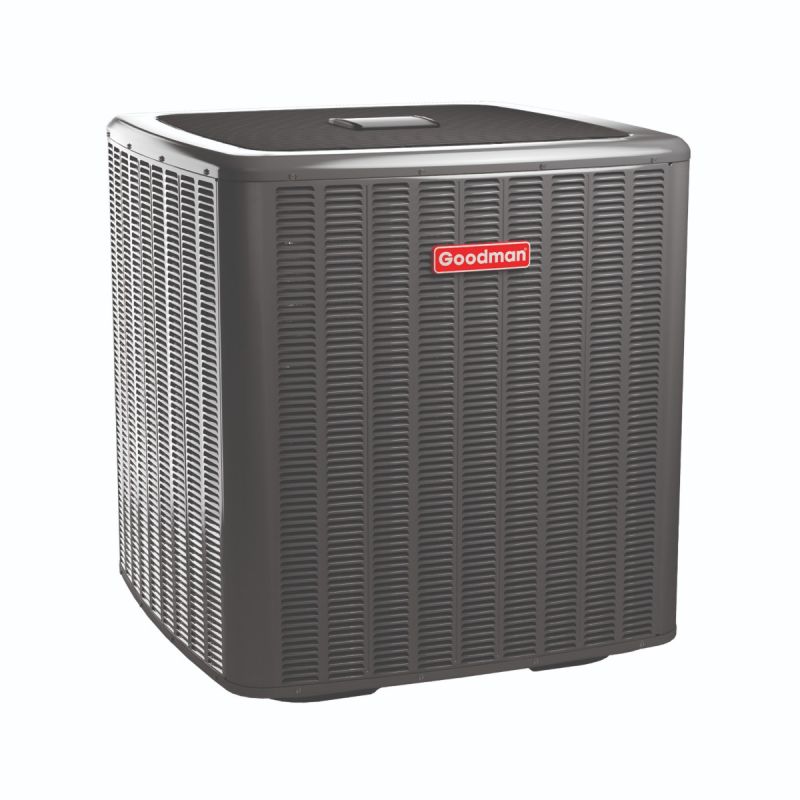

Goodman 2 Ton 20 SEER High Efficiency Heat Pump Condenser - R410A Inverter

Goodman 2 Ton 20 SEER High Efficiency Heat Pump Condenser - R410A Inverter
By

Goodman

Out of stock
Model

GVZC200241

ID

104612

Revolutionary ComfortBridge technology is factory-installed into select Goodman brand gas furnaces and air handlers to ensure that the entire system operates at peak, energy-efficient performance. Simply put, communications technology that is typically located in a thermostat was moved from the wall and securely placed into the HVAC equipment!

    Features

  • Variable-speed swing compressors
  • High-density compressor sound blanket
  • Integrated communicating ComfortBridgeâ„¢ Technology • Commissioning and diagnostics via indoor board Bluetooth with the CoolCloudâ„¢ phone and tablet application.
  • Goodman control algorithmic logic
  • In communicating mode, only two low voltage wires to outdoor unit required
  • Diagnostic indicator lights, seven-segment LED display, and fault code storage
  • Field-selectable boost mode increases compressor speed during unusually high loads
  • Quiet DC outdoor fan motor
  • Fully charged for 15’ of tubing length
  • Field-installed bi-flow filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer (in cooling mode)
  • Sweat connection service valves with easy access to gauge ports
  • AHRI Certified; ETL Listed

At Goodman, they believe in American dependability. Units are designed, engineered and assembled in the U.S.A.

More Information
Goodman 2 Ton 20 SEER High Efficiency Heat Pump Condenser - R410A Inverter
FeatureSpec
SKUGVZC200241
Weight (in lbs)217
Brand/ManufacturerGoodman
UPC663051604612
Cooling BTU23,800
Heating BTU23,800
Decibel Level (dBA)67.7 dB
Energy StarYes
RefrigerantR410A
SEER1 (Efficiency)20
Condenser StagesVariable Speed
Compressor TypeSwing
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208 / 230 V. 1 Phase 60 Hz
Max Breaker Size20 Amps
Min. Breaker Size15.2 Amps
Tonnage2 Ton
Valve TypeBall Valve
Size Range38" Wide & Up
Height38 1/4"
Width35 1/2"
Depth35 1/2"
WarrantyLifetime Compressor, 10 Years Unit Replacement, and 10 Years Parts with Online Registration
