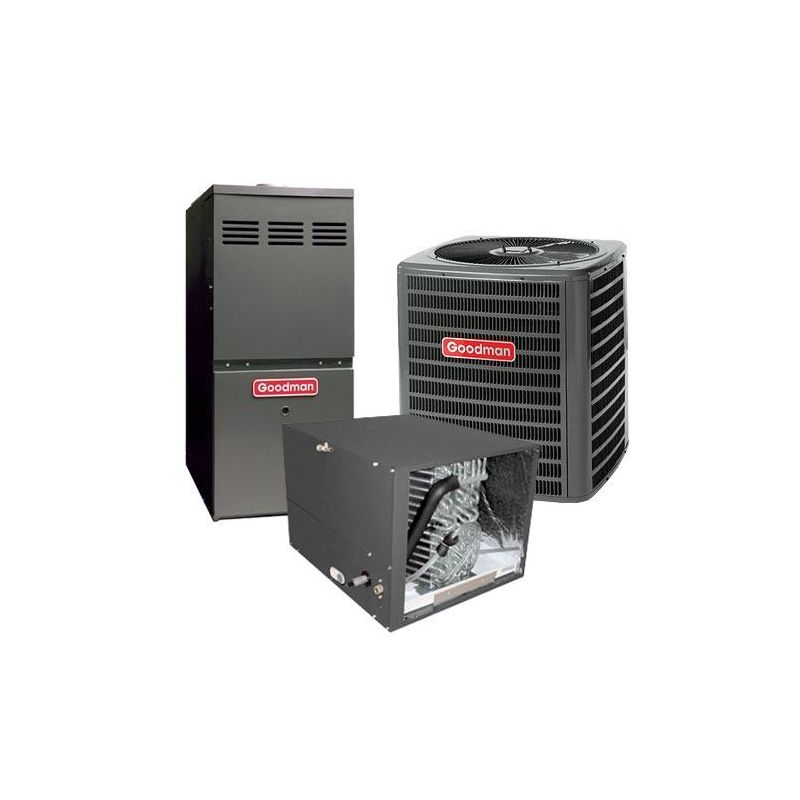

3 Ton 13 SEER 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal

The Goodman GMS8/GDS8 multi-position gas furnaces feature a patented aluminized steel tubular heat exchanger and high-efficiency hot surface ignition system. These furnaces are run-tested for heating or combination heating/cooling applications. With a heavy-gauge, reinforced, wrap-around insulated steel cabinet and durable baked enamel finish, these gas heaters can be installed in a utility room, closet, alcove, basement or attic. (Not intended for use in mobile homes.)

Furnace Features

• Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit.
• Corrosion-resistant, aluminized-steel tubular furnace heat exchanger
• Furnace is designed for multi-position installation - Goodman GMS8: upflow, horizontal right or left; Goodman GDS8: dedicated downflow
• Energy-saving, reliable hot surface ignition system with Goodman furnace patented adaptive learning algorithm to maximize igniter life
• Aluminized steel inshot gas furnace burners
• Energy-saving PSC, multi-speed, direct drive blower motor
• Quiet, corrosion-resistant induced draft furnace blower assembly
• Integrated Goodman furnace control with diagnostics
• Low voltage terminal blocks
• Multiple flame roll-out switches, blower door safety switch, outlet air-limit switch and pressure switch for proof of combustion air
• 40VA transformer for heating and air conditioning control service
• Combination redundant gas valve and regulator
• A rotating combustion air blower (Goodman GMS8) that provides the option of venting the furnace through the top, right-hand side or left-hand side
• Completely assembled, factory run-tested furnace for heating or combination heating/cooling application
• Furnace has heavy-gauge, reinforced, fully insulated steel cabinet with durable baked-enamel finish
• Attractive architectural gray paint finish
• Heater's foil-face insulation lines the heat exchanger compartment
• Coil and furnace fit flush for easy installation
• Convenient left or right connection for gas and electric service
• Bottom or side air inlet (Goodman GMS8)
• Removable, solid-bottom block off
• All “X” models comply with California NOx emissions standards

The Goodman® GSX14 14 SEER Central Air Conditioner uses the environmentally friendly refrigerant R-410A and features operating sound levels that are among the best in the heating and air conditioning industry. R-410A is chlorine-free to help prevent damage to the ozone layer. The GSX14 central air conditioner features a high-efficiency Copeland® scroll compressor and is designed for the consumer who desires superior comfort, quiet operation, and environmentally friendly cooling performance.

This central air unit can be 14 or 15 SEER depending on which indoor unit it is paired with. If it is installed with the manufacturer-recommended evaporator coil, variable speed furnace, variable speed air handler, or variable speed modular blower, and also sometimes a thermostatic expansion valve (TXV), it is a 15 SEER system (see Accessories tab above for actual products compatible with this central air conditioner, or the Documents tab above for Goodman's spec sheet details). A 15 SEER central air conditioning system will reduce your electric bill approximately 7% more than a 14 SEER system.

Some models of the Goodman condensers include an orifice (also called "flow rater" or "piston") in a small bag taped to the side of the condenser. If the condenser you purchase includes this orifice, you will need to replace the orifice already inside the evaporator coil or air handler you purchase with this orifice included with the condenser. Doing so makes the condenser and evaporator coil compatible. You can viewthis step-by-step guide to see how to easily change the orifice.

Please note that this equipment comes precharged with R-410A liquid refrigerant, and by Federal law cannot be released to the atmosphere. You can purchase this equipment without being certified, and if you are mechanically inclined you can perform about 90% of the equipment installation yourself. However, you must have a professional heating/cooling contractor do the final part of the installation which requires managing the refrigerant.

Central Air Conditioner's Standard Features

• Energy-efficient Copeland® scroll compressor
• Factory-installed filter drier
• Copper tube/aluminum fin coil
• Service valves with sweat connections and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed

Cabinet Features

• Goodman® brand louvered sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
