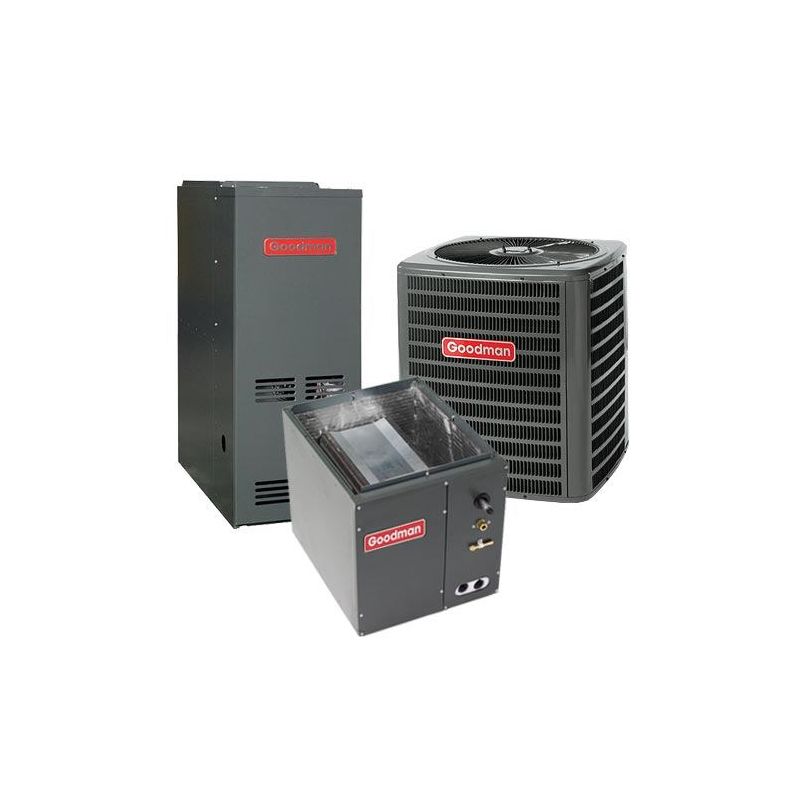

3 Ton 14 SEER 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Downflow

The Goodman® GDH8 80% AFUE Two-Stage (Convertible), Multi-Speed, Dedicated Downflow (blows air into ducts located below the furnace) Gas Furnace features a patented aluminized-steel tubular heat exchanger and durable Silicon Nitride Hot Surface Ignition system. This furnace is run-tested for heating or combination heating/cooling applications. With a heavy-gauge, reinforced, insulated steel cabinet and durable baked enamel finish, this gas heater can be installed in a variety of locations.


Standard Furnace Features

• Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit.
• Goodman Patented TuffTube™ dual-diameter tubular furnace heat exchanger with lifetime limited warranty plus 10-year furnace replacement limited warranty (with online registration)
• Furnaces' two-stage gas valve with revolutionary new Dual$aver control technology allows installer to turn on two-stage operation with the flip of a dipswitch
• Silicon Nitride furnace igniter with patented adaptive learning routine for maximum igniter life Energy-saving, quiet four-speed direct-drive circulator blower motor means less furnace maintenance
• Integrated electronic furnace control board with self-diagnostics, low-voltage terminal block, and separate terminals for electronic air cleaner and 24-volt humidifiers
• Goodman furnace control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
• Low constant fan mode allows the homeowner to activate the lowest available heating speed to circulate air quietly and efficiently throughout the home during the off cycle
• Self-adjusting feature automatically adjusts furnace to high or low stage based on outside temperature without outdoor temperature sensor
• Quiet single-speed, induced-draft blower
• All “X” models comply with California NOx emissions standards

The Goodman GSX130361 Air Conditioner Condenser uses the chlorine-free refrigerant R-410A and features operating sound levels that are among the lowest in the heating and cooling industry. With its 13 SEER rating, The Goodman GSX130361 Air Conditioner Condenser will help reduce energy consumption throughout the life of the system. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

Please note that this product is regulated by DOE Efficiency Standards

• R-410A chlorine-free refrigerant
• Factory-installed filter dryer
• Copper tube/enhanced aluminum fin coil
• Service valves with sweat connections and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed
• Goodman brand louvered sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Baked-on powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
