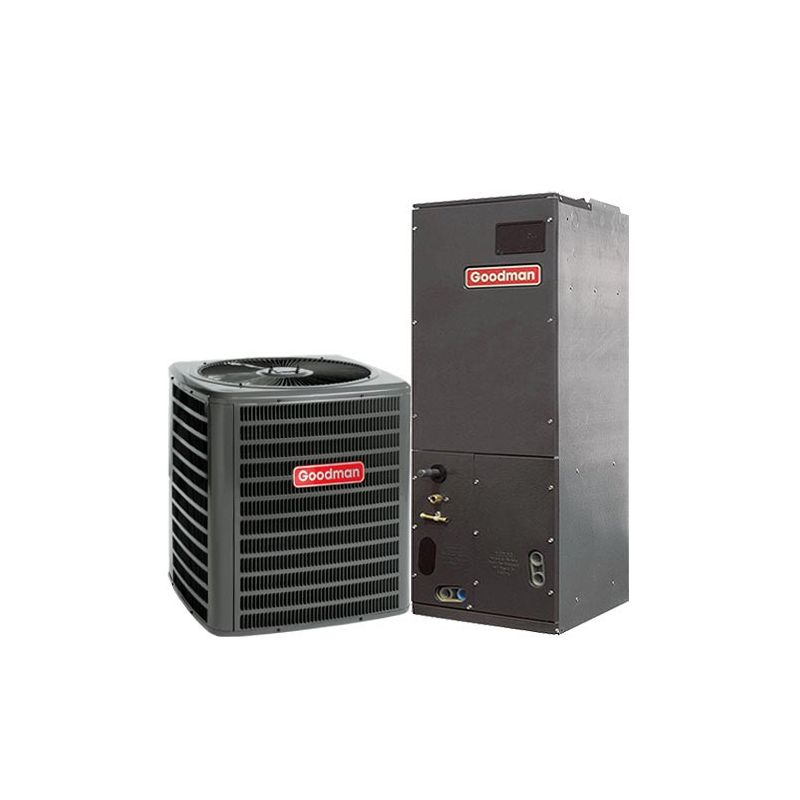

4 Ton 15 SEER Goodman Heat Pump Air Conditioner System

4 Ton 15 SEER Goodman Heat Pump Air Conditioner System

Required Fields *

Customer reviews
Rating:
5 out of 5
Out of stock
By

Goodman

Out of stock

Model

SSZ140481 / ASPT48D14

ID

1569

The Goodman® SSZ14 14 SEER Heat Pump uses the environmentally friendly refrigerant R-410A and features operating sound levels that are among the best in the heating and cooling industry. R-410A is chlorine-free to help prevent damage to the ozone layer. With its 14 SEER rating, the SSZ14 will help reduce energy consumption throughout the life of the system.

The Goodman ASPT48D14 Multi-Position Air Handler with EEM (Energy-Saving) Motor is suitable for use with R-410A refrigerant and may be installed in a variety of locations. This air handler features a SmartFrame sub-structure that adds lateral stability, mounting locations for internal components, and additional insulation retention.

More Information
Goodman 4 Ton 14 SEER Heat Pump
FeatureSpec
SKUSSZ140481
Weight (in lbs)300
Brand/ManufacturerGoodman
UPC689526850483
Cooling BTU48,000
Heating BTU48,000
Decibel Level (dBA)74
Energy StarNo
RefrigerantR410A
SEER1 (Efficiency)14
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Valve Size3/8"
Suction Valve Size7/8"
Electrical208 / 230 V. 1 Phase 60 Hz
Max Breaker Size45 amps
Min. Breaker Size26.4 amps
Tonnage4 Ton
Valve TypeSweat
Height34.25"
Width35.5"
Depth35.5"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
4 Ton Multi-Positional Goodman Air Handler - Open Box
FeatureSpec
SKUASPT49D14
Weight (in lbs)167
Brand/ManufacturerGoodman
UPC646341724108
Blower MotorMulti Speed - EEM
Maximum CFM2,225
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
RefrigerantR410A
Filter Size23" x 20"
Liquid Line3/8"
Suction Line7/8"
Electrical208/240 V, 1 Phase, 60 Hz
Max Breaker Size15 amps
Min. Breaker Size8 amps
Tonnage4 Ton
Fuel TypeElectric
Height58"
Width24.5"
Depth21"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
5 Kilowatt 16,200 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC05XC
Weight (in lbs)8
Brand/ManufacturerGoodman
UPC650361147441
Heating BTU16,200
Electric Heat5 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size35 amps
Min. Breaker Size32 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
8 Kilowatt 23,800 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC08XC
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC650361147311
Heating BTU23,800
Electric Heat8 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size50 amps
Min. Breaker Size48 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
10 Kilowatt 34,100 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC10XC
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC650361147335
Heating BTU34,100
Electric Heat10 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size60 amps
Min. Breaker Size57 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
15 Kilowatt 51,150 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC15XB
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC650361148288
Heating BTU51,150
Electric Heat15 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker SizeCircuit 1: 60 amps / Circuit 2: 25 amps
Min. Breaker SizeCircuit 1: 57 amps / Circuit 2: 25 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
20 Kilowatt 68,200 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC20DB
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC663051509979
Heating BTU68,200
Electric Heat20 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker SizeCircuit 1: 60 amps / Circuit 2: 50 amps
Min. Breaker SizeCircuit 1: 57 amps / Circuit 2: 50 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Very Helpful
    Service
    100%
    Quality
    100%
    Price
    100%
    Ordered an hvac system. It was shipped promptly, but the shipper held on to it for over a week. Had to call them to find it. Once they finally sent it, it arrived bent.

    HVACDirect was very helpful. Once I sent them pictures, they shipped me a new one asap. Have no complaints. My experience was good as it could be with your company. Thanks

    Review by

    Posted on

Customer Questions
No Questions
Did you find what you were looking for?
Why Choose a Goodman Product?
Why Choose Goodman?

For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
