Noritz NCC199CDV Pro Commercial Tankless Water Heater Buying Guide

A hot water issue can quickly become a business issue. Kitchens need it for washing dishes and cleanup. Hotels and apartment buildings rely on it for guest comfort. Salons, gyms, healthcare offices, and manufacturing facilities may use it throughout the workday.

The Noritz NCC199CDV Pro is a commercial condensing tankless water heater designed for that kind of demand. This guide focuses on what it offers, how it benefits a business, and what to consider before ordering.

What Is the Noritz NCC199CDV Pro?

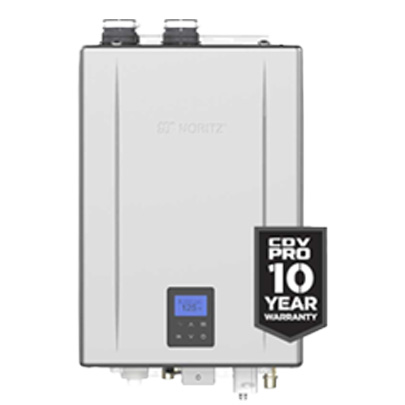

The NCC199CDV Pro is a wall-mounted commercial tankless water heater that heats water as fixtures and equipment call for it. Instead of storing and reheating a fixed supply, the unit fires when water begins flowing and adjusts its output to match demand.

This can free up mechanical-room floor space and reduce energy used to maintain a large tank. It also eliminates the traditional tank recovery period. A properly sized system can continue producing hot water as long as demand stays within its capacity.

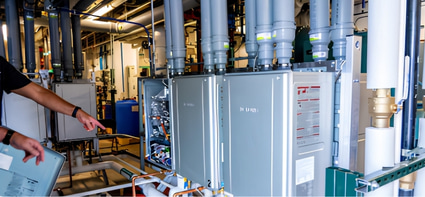

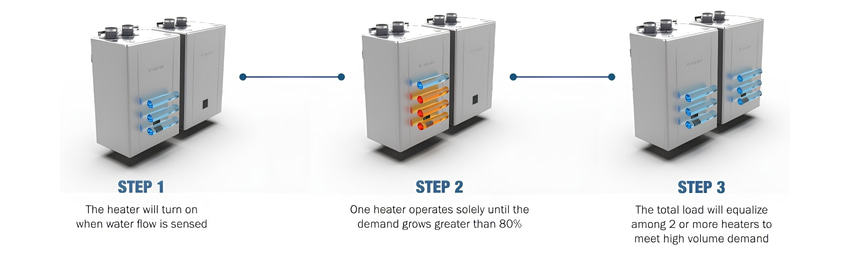

For larger facilities, several units can operate together. Additional heaters come on as demand rises, and the workload is distributed across the connected system. When spare capacity is included in the design, one heater may be serviced while the others continue supporting the building.

Why Choose the NCC199CDV Pro for a Business?

Commercial buyers need more than a large BTU number. The system must meet peak demand, fit the building, remain manageable to service, and control operating costs.

• Continuous Hot Water: The unit keeps producing hot water without waiting for a storage tank to refill and reheat, provided demand remains within the system's available capacity.
• Compact Footprint: Its wall-mounted design leaves floor space open for storage, equipment, or easier access through the mechanical room.
• Responsive Performance: The fully modulating burner adjusts its firing rate from 12,800 to 199,900 BTU. This helps maintain stable outlet temperatures while avoiding unnecessary fuel use during periods of lighter demand.
• Greater Efficiency: The ENERGY STAR-certified 0.98 UEF condensing design captures additional heat from combustion gases rather than allowing it to escape through the vent. For businesses that use hot water throughout the day, that can reduce wasted energy and help control utility costs.

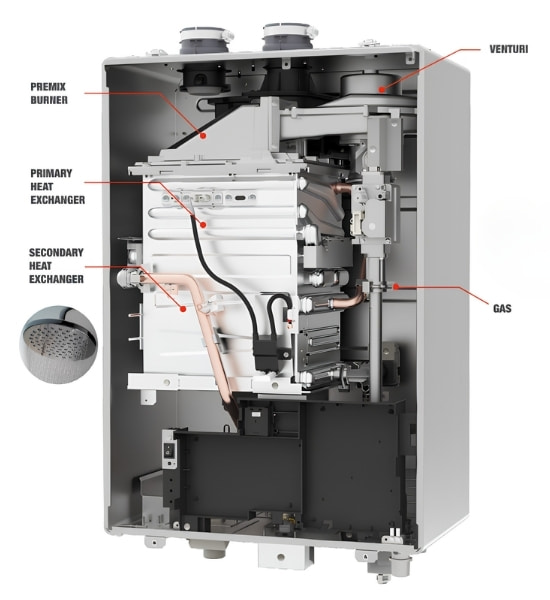

• Durable Heat Exchangers: Dual stainless steel heat exchangers provide corrosion resistance and reliable heat transfer for applications where the equipment may run more often than a typical residential water heater.
• Scalable Capacity: One unit may serve a qualifying light-commercial application. Larger facilities can connect multiple heaters to increase output without switching to an entirely different water-heating platform.
• Commercial Temperature Options: Temperature settings range from 100°F to 150°F in 5°F increments, with additional 160°F, 170°F, and 185°F settings for approved applications.
• Natural Gas or Propane: The model ships configured for natural gas and includes components for field conversion to propane.
• Commercial Warranty Coverage: Qualifying installations receive 10 years of heat exchanger coverage, five years on parts, and one year of reasonable labor coverage.

Together, these features give businesses more control over both day-to-day performance and long-term operating costs. The system can be sized around current peak demand, expanded as the facility grows, and configured with additional units to help maintain hot water during scheduled service. That flexibility makes the NCC199CDV Pro a practical choice for operations where sanitation, customer comfort, and productivity depend on a reliable hot water supply.

Noritz NCC199CDV Pro Specifications

* Do not treat 11.1 GPM as the output every building will receive. That rating is based on a 35°F temperature rise. Colder groundwater or hotter outlet settings require more heat per gallon, lowering the available flow.

What Is New on the NCC199CDV Pro?

The NCC199CDV Pro adds practical upgrades that make a commercial hot water system easier to monitor, manage, and service. For business owners, that can mean quicker troubleshooting, fewer operational disruptions, and better visibility into equipment that may support sanitation, customer comfort, or daily production.

Built-In Display

The front-mounted display shows the water temperature, operating status, and active error codes without requiring the cabinet to be opened. Staff can quickly confirm that the heater is running as expected, while service technicians have useful information available as soon as they arrive. This can reduce diagnostic time and help get the system back to normal operation faster.

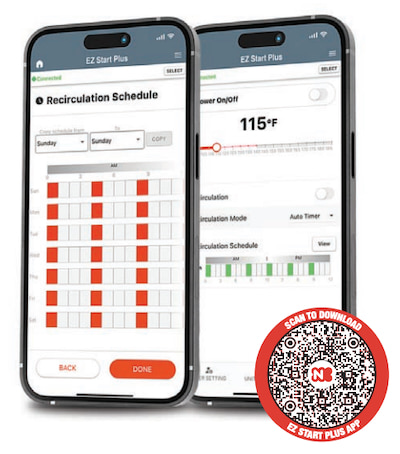

Bluetooth and EZ Start Plus Connectivity

Built-in Bluetooth provides local access through the Noritz EZ Start Plus app and compatible service tools. From a nearby mobile device, business owners or authorized service professionals can check system status, review error information, adjust permitted temperature settings, manage timers, and complete supported setup tasks.

Having this information in one place makes routine system checks more convenient. It can also help owners provide technicians with clearer information before a service visit, reducing guesswork and potentially avoiding unnecessary downtime.

Easier Component Access

The updated flangeless cover uses snap locks instead of a more time-consuming fastener arrangement. Technicians can reach internal components more easily during inspections, maintenance, or repairs.

That may seem like a small design change, but faster access can shorten service appointments and reduce the amount of time equipment is unavailable. It also makes routine maintenance easier to complete before minor concerns turn into larger operating problems.

Advanced Diagnostics and Safety Monitoring

Built-in diagnostic capabilities help identify operating problems and provide error information through the display. The system also includes safety monitoring designed to respond to concerns such as ignition problems, overheating, venting issues, and freezing conditions.

These protections do not replace regular maintenance, but they can help technicians locate problems faster and reduce guesswork during a service visit.

Greater Multi-Unit Capability

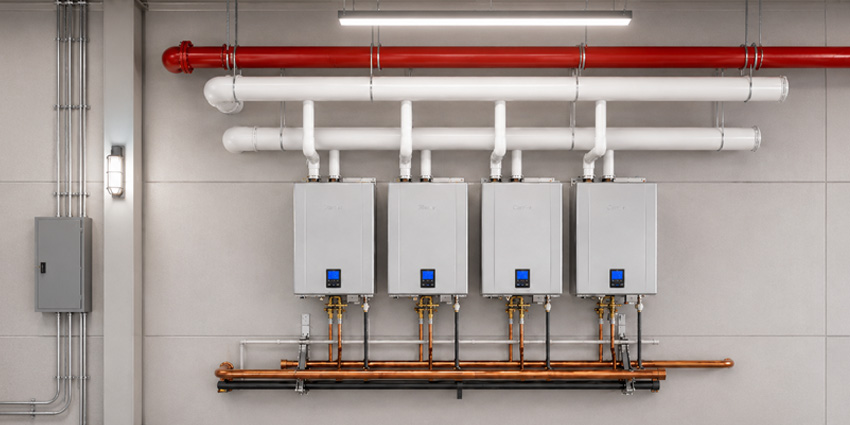

Up to eight NCC199CDV Pro units (the older unit only connects up to six) can be linked through Quick Connect, allowing the system to increase output as a facility's hot water demand grows. The model is also approved for common venting of up to 12 compatible units, which can simplify the vent layout in larger installations.

For owners planning an expansion, this scalability provides more flexibility than replacing the entire hot water system later. A multi-unit design can also provide redundancy, allowing the remaining heaters to continue supporting demand when one unit is taken offline for scheduled service.

Built-in Bluetooth provides local access through the Noritz EZ Start Plus app and compatible service tools. From a nearby mobile device, business owners or authorized service professionals can check system status, review error information, adjust permitted temperature settings, manage timers, and complete supported setup tasks.

Having this information in one place makes routine system checks more convenient. It can also help owners provide technicians with clearer information before a service visit, reducing guesswork and potentially avoiding unnecessary downtime.

How Do You Size an NCC199CDV Pro System?

Step 1: Calculate the Required Temperature Rise

Commercial sizing starts with the highest realistic hot water demand, not the building's average daily use. The goal is to determine how many gallons per minute the property may need at once, then compare that demand with the NCC199CDV Pro's output at the project's actual temperature rise.

Temperature rise is the difference between the coldest incoming water temperature and the required hot water temperature.

• Required outlet temperature – incoming water temperature = temperature rise

For example:

• 120°F – 50°F = 70°F temperature rise

This calculation matters because the NCC199CDV Pro's maximum 11.1 GPM rating applies at only a 30°F temperature rise. As the required rise increases, the unit must use more heating capacity for each gallon of water, reducing the available flow rate.

At approximately a 70°F temperature rise, one NCC199CDV Pro produces about 5.6 GPM rather than 11.1 GPM.

Step 2: Calculate Peak Simultaneous Demand

List the fixtures and equipment likely to use hot water during the busiest realistic period. Depending on the property, this may include showers, lavatories, pre-rinse sprayers, washing machines, mop sinks, dishwashers, or process-water equipment.

Multiply each fixture's flow rate by the number expected to operate at the same time:

• Fixture flow rate × simultaneous fixture count = fixture demand

Then add the results:

• Total peak demand = combined simultaneous fixture demand

For example, assume a hotel may have the following fixtures operating at once:

This does not mean every fixture in the building should be added together. Include only the fixtures reasonably expected to operate during the same peak-demand period.

For appliances that use a fixed amount of water per cycle, use the manufacturer's hot water requirement and recovery time rather than assuming a standard faucet flow rate.

Step 3: Compare Demand with Actual Unit Output

Once the temperature rise and peak demand are known, divide the required flow by the output of one NCC199CDV Pro at that temperature rise.

• Peak simultaneous demand ÷ unit output at the required rise = estimated unit count

Using the example above:

• 13.0 GPM ÷ 5.6 GPM per unit = 2.32 units

Because a partial water heater cannot be installed, round up to the next whole unit:

• Preliminary requirement: 3 NCC199CDV Pro units

This calculation is more accurate than dividing demand by the maximum 11.1 GPM rating because it reflects the colder incoming water and higher heating load.

Step 4: Account for Additional System Load

The basic unit-count calculation establishes the starting point, but the final system may require additional capacity. The designer should also consider:

For critical commercial applications, the system may be designed using N+1 redundancy. This means installing one more unit than the minimum required so the property can continue receiving hot water when one heater is offline.

In the example above, three units may satisfy the calculated load. A project requiring full redundancy could need four units, depending on how much demand must still be supported during maintenance.

Step 5: Verify the Estimate with the Noritz Calculator

After completing the manual calculation, use the Noritz Commercial Sizing Calculator to verify the preliminary recommendation. Enter the application, fuel type, installation location, ZIP code, set-point temperature, groundwater temperature, elevation, and fixture quantities.

The calculator provides a useful equipment recommendation, but it should be treated as a confirmation tool rather than a substitute for understanding the load. Final sizing should be reviewed by a qualified commercial installer or engineer who can account for gas supply, venting, recirculation, piping, pressure loss, storage requirements, redundancy, and local codes.

What Installation and Venting Options Are Available?

The NCC199CDV Pro can be installed indoors or outdoors with the proper Noritz components. Its compact cabinet offers placement flexibility, but the gas, venting, water, electrical, and drainage requirements still need professional planning.

A licensed professional should verify combustion air, equivalent vent length, termination clearances, gas-line capacity, electrical service, condensate drainage, water pressure, water quality, and local codes before installation.

What Businesses Can Use the NCC199CDV Pro?

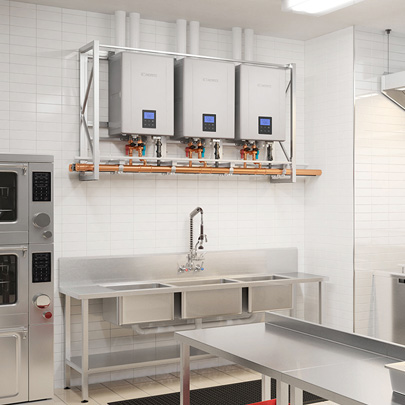

The NCC199CDV Pro can serve a wide range of businesses that rely on hot water for sanitation, customer comfort, tenant needs, or daily production. Its compact design may work well for smaller commercial properties, while its multi-unit capability allows the same platform to support larger facilities with heavier or less predictable demand.

Suitability still depends on a professional load calculation. The model may fit one business as a single unit and require a multi-unit design for another.

Shop the Noritz NCC199CDV Pro at HVACDirect.com

The NCC199CDV Pro combines high-efficiency operation, compact installation, scalable capacity, and updated controls. More importantly, it can be planned around the way a business actually uses hot water, whether demand stays steady or rises sharply at certain times.

HVACDirect.com carries the 199,900 BTU NCC199CDV Pro with compatible venting, recirculation, and isolation-valve accessories. Before ordering, have a qualified professional confirm the unit count and installation requirements. Proper sizing protects more than water temperature. It helps protect sanitation, customer service, employee productivity, and daily revenue.

Noritz NCC199CDV Pro FAQ

Can one NCC199CDV Pro supply an entire commercial building?

It depends on peak simultaneous flow and temperature rise. One unit may work for a qualifying light-commercial application, while higher-demand facilities may need multiple units.

Can the NCC199CDV Pro use propane?

Yes. It is supplied for natural gas and includes components for field conversion to propane. A qualified professional must complete the conversion.

Does the NCC199CDV Pro include a recirculation pump?

No. It has a dedicated recirculation return connection, but the RPK-EXT external pump is sold separately.

How many NCC199CDV Pro units can be connected?

Up to eight units can be Quick Connected. Noritz also approves common venting for up to 12 compatible units.

What maintenance does it need?

Typical maintenance includes flushing or descaling, cleaning filters, inspecting the burner and venting, checking condensate drainage, and reviewing error information. Water quality and operating hours affect service frequency.

What warranty comes with the NCC199CDV Pro?

Qualifying commercial installations receive 10 years of heat exchanger coverage, five years on parts, and one year of reasonable labor coverage.
