Key Takeaways
- Hybrid Solar Power = Lower Bills: Stealth Solar Mini Split systems run on solar, grid, or both, automatically optimizing energy use for daytime savings and year-round comfort.
- Two Models, High Efficiency: Choose 12,000 BTU (22.5 SEER2) or 24,000 BTU (21.0 SEER2) with heating to 5°F and cooling to 131°F—ideal for small to large rooms with quiet operation.
- Simple Install & Smart Controls: Pre-vac line set streamlines installation; add 3–7 solar panels when ready and manage performance via the Wi-Fi Solar Air Con app with real-time energy monitoring.
Article Contents
Solar mini splits are changing the game for homeowners who want to lower their energy bills while reducing their environmental impact. These innovative systems can run on solar power, regular electricity, or both at the same time—automatically switching between power sources to maximize your savings.
If you're tired of high cooling and heating costs, curious about solar energy, or looking for a more sustainable way to keep your home comfortable, this guide covers everything you need to know about Stealth Solar Mini Split systems.
What Is the Stealth Solar Mini Split System?
The Stealth Solar Mini Split is a ductless heating and cooling system designed to work with solar panels. Unlike traditional mini splits that only run on electricity, this "solar ready" system can harness free energy from the sun while keeping the option to use regular power when needed. It will even automatically manage where you're pulling power from for you to maximize your savings without any manual intervention. Don’t have solar panels yet? That’s not a problem either – the Stealth Solar Mini Split can run on just power from the grid like other traditional mini split systems. Using its solar panel capabilities is optional.
Solar Mini Splits vs. Traditional Mini Splits – Key Advantages
- Dual power sources that automatically switch between solar and electricity
- Built-in solar controller eliminates need for separate equipment
- Wi-Fi enabled with real-time power monitoring through Solar Aircon app

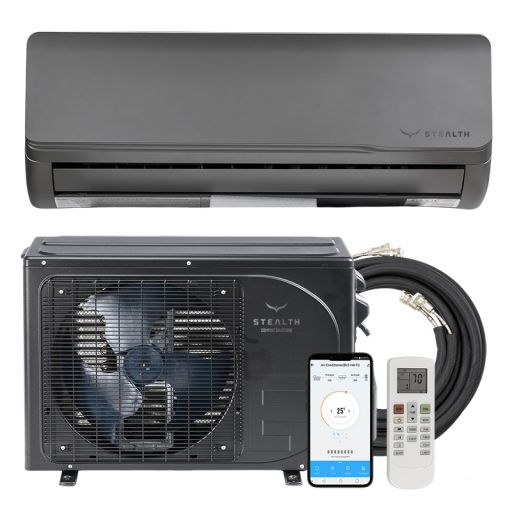

- Wall-mounted indoor air handler
- Outdoor condenser with integrated solar controller
- Pre-vacuumed refrigerant line set (no vacuum pump needed)
- WiFi-enabled remote control with mount
- Solar panel connectors (MC-4 compatible)
- All installation hardware and accessories (plastic wrap, drain elbow, plasticene, insulation, wall cap, screws with anchors, tool kit)
Important Note:Solar panels are sold separately and should be installed by a qualified professional.
Why Choose Solar Mini Splits?
Save Money on Energy Bills
Switching to solar-powered cooling can cut energy costs significantly—often by half or more during sunny daytime hours. By producing your own electricity, you can avoid expensive and increasing electricity pricing rates. Federal tax credits can cover up to 30% of the initial cost, and adding solar increases the long-term value of your home. Most homeowners achieve positive ROI within 5-10 years through energy savings.
Help the Environment
Solar cooling reduces reliance on fossil fuels, lowering your carbon footprint with every hour of operation. Using clean, renewable power keeps harmful emissions out of the air, and modern refrigerants like R32 offer much lower environmental impact than older types. On average, each solar-powered hour of cooling offsets the energy needed to burn about a pound of coal.
Gain Energy Independence
With solar support, your system can keep running when the grid is strained or even during daylight power outages. By generating your own electricity, you become less dependent on utility companies and better protected against rising energy costs. This reliability is especially valuable in rural areas or regions where power interruptions are common.
Heat and Cool Spaces Outside Your Home That Don’t Have Power
Solar mini splits are especially useful for spaces outside your main home that don’t have a power source. Think about a detached garage, shed, workshop, mancave, or she-shed—places where running electrical lines would normally be expensive or impractical. With solar panels powering the system, you can enjoy reliable heating and cooling in these off-grid spaces without using any electricity. It’s a cost-effective way to turn unused structures into comfortable, year-round living or working areas.
Stealth Solar Mini Split Models & Specifications

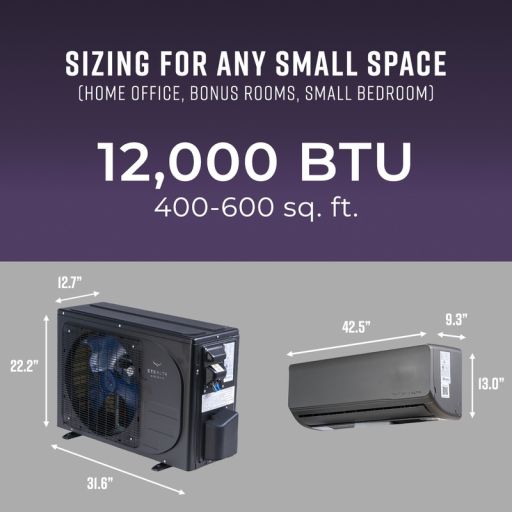

12,000 BTU Stealth Solar Mini Split
The 12K model is perfect for targeted climate control in individual rooms.
Coverage Area and Power Requirements
This compact powerhouse efficiently conditions smaller spaces while keeping energy consumption low.
- Effectively heats and cools up to 600 square feet
- Ideal for small bedrooms, home offices, bonus rooms, or small apartments
- Maximum power consumption: 1,700 watts
Solar Mini Split Efficiency Ratings (SEER2 & HSPF2)
Efficiency ratings tell you how much cooling or heating you get for each dollar of electricity used—higher numbers mean lower operating costs and smaller energy bills.
- 22.5 SEER2 cooling efficiency (exceeds ENERGY STAR)
- 9.7 HSPF2 heating efficiency
Performance in Extreme Temperatures
This system handles extreme weather conditions that would challenge many traditional air conditioners.
- Cools in outdoor temperatures up to 131°F
- Heats in outdoor temperatures down to 5°F
- Dehumidifies 2.65 pints per hour
Noise Levels and Quiet Operation
The Stealth Solar Mini Split is whisper-quiet, not getting any louder than that of people talking at its highest speed.
- As quiet as 29 dBA at low speed (quieter than a whisper, comparable to a ticking clock)
- Maximum 41 dBA at highest speed (quieter than a normal conversation)

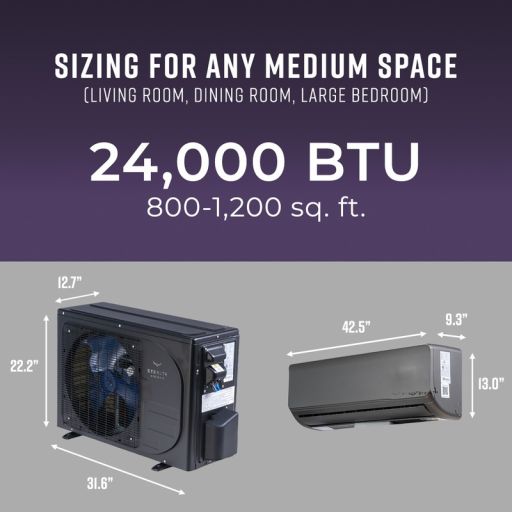

24,000 BTU Stealth Solar Mini Split
The 24K model delivers heating and cooling power for medium-sized spaces.
Coverage Area and Power Requirements
This high-capacity unit provides whole-room comfort for your home's largest spaces.
- Effectively heats and cools up to 1,500 square feet
- Ideal for living rooms, bedrooms, dining rooms, or potentially small homes
- Maximum power consumption: 3,500 watts
Solar Mini Split Efficiency Ratings (SEER2 & HSPF2)
Higher efficiency means the unit delivers more comfort per dollar spent on electricity, saving you money month after month.
- 21.0 SEER2 cooling efficiency (exceeds ENERGY STAR)
- 10.0 HSPF2 heating efficiency
Performance in Extreme Temperatures
The 24K model delivers powerful performance across the same extreme temperature range.
- Cools in outdoor temperatures up to 131°F
- Heats in outdoor temperatures down to 5°F
- Dehumidifies 4.5 pints per hour
Noise Levels and Quiet Operation
Quiet operation ensures the system doesn't disrupt conversations, TV watching, or sleep.
- As quiet as 39 dBA at low speed (comparable to a library or soft refrigerator hum)
- Maximum 50 dBA at highest speed (quieter than a normal conversation)
Shared Features of Stealth Solar Mini Splits
- 6-year compressor warranty and 4-year parts warranty (requires online registration)
- Inverter technology for precise comfort
- 3 Functions and 6 Modes for complete control
- Six fan speeds including turbo mode
- WiFi-enabled Solar Air Con app with real-time energy monitoring
- Can be installed without the need for ductwork
- Includes Wide Maximum Power Point Tracking (MPPT) to track and utilize maximum power output from solar panels
| Feature | 12,000 BTU Model | 24,000 BTU Model |
|---|---|---|
| Coverage Area | Up to 600 sq. ft. | Up to 1,500 sq. ft. |
| Maximum Power Consumption | 1,700 watts | 3,500 watts |
| SEER2 Rating (Cooling) | 22.5 | 21.0 |
| HSPF2 Rating (Heating) | 9.7 | 10.0 |
| Dehumidification | 2.65 pints/hour | 4.5 pints/hour |
| Noise Level (Low–High) | 29–41 dBA | 39–50 dBA |
| Cooling Range | Up to 131°F outdoor temp | Up to 131°F outdoor temp |
| Heating Range | Down to 5°F outdoor temp | Down to 5°F outdoor temp |
| Warranty | 6-Year Compressor | 4-Year Parts | 6-Year Compressor | 4-Year Parts |
| Smart Controls | WiFi-enabled Solar Air Con app with real-time energy monitoring | WiFi-enabled Solar Air Con app with real-time energy monitoring |
How the Solar Power System Works
The Stealth Solar Mini Split automatically manages three power modes to maximize your savings without any manual intervention. If you don’t have solar panels yet, that’s not an issue either. This mini split can run on just electricity like other traditional mini splits.
- 100% Solar Mode: When the sun is shining strong, the system runs entirely on free solar power. This typically happens from late morning through mid-afternoon on sunny days—giving you 4 to 6 hours of completely free heating or cooling.
- 100% Electric Mode: At night or during heavy cloud cover, the system seamlessly switches to regular grid power. You won't notice any difference in performance or comfort.
- Hybrid Mode: This system can pull power from both solar and electricity. For example, if your solar panels are producing 1,200 watts but the system needs 1,500 watts, it automatically draws 1,200 from solar and only 300 from the grid.
Critical Reminder: Solar panels are NOT included with your purchase and must be bought separately. A qualified solar installer will help size your array based on your location, roof conditions, and system capacity.
Which Climates Are Best for Solar Mini Splits?
Solar mini splits work throughout the United States, but your location and local weather patterns significantly affect how much you'll save.
Regional Solar Mini Split Performance
- Southern U.S. (Best Performance): States like Arizona, California, Texas, and Florida offer ideal conditions with abundant year-round sunshine, providing maximum solar contribution when cooling demand peaks.
- Central & Mid-Atlantic U.S. (Excellent Performance): Four-season climates with balanced heating and cooling needs. Spring through fall provides strong solar contribution, while winter sees reduced but still meaningful solar generation.
- Northern U.S. (Good Performance): Excellent summer solar cooling. Winter solar contribution decreases due to shorter days and snow coverage, but high efficiency keeps costs manageable year-round.
Performance in Sunny vs Cloudy Conditions
- Sunny vs. Cloudy Days: Clear days provide 4-6 hours of pure solar operation, while cloudy days reduce solar output to 20-40% of peak generation. The system automatically balances between solar and grid power, so you never notice performance differences—only savings differences.
South-facing roof sections with minimal shading provide the best results. Properties with heavy tree cover or predominantly north-facing roofs may not be good solar candidates regardless of climate.
Pros and Cons of Stealth Solar Mini Splits
Pros of Stealth Solar Mini Splits
- Cuts costs by potentially avoiding rising electricity rates, being eligible for tax credits and rebates, and reducing monthly electricity bills
- Reduces carbon footprint with renewable energy and R32 refrigerant
- Operates in temperatures from 5°F to 131°F with quiet 29–39 dBA performance
- Install easily with no ductwork, Wi-Fi control, and zone-specific comfort
- Dependable operation with solar backup for power outages
- Backed by a 6-year compressor and 4-year parts warranty
Cons of Solar Mini Splits
- Cost more upfront than standard systems because of required solar panels and solar technology
- You will have to buy the solar panels separately
- Solar output varies by location, season, and available sun exposure
Solar HVAC Installation Considerations
Pre-Vacuumed Line Set for Easy Installation
Traditional mini splits require specialized vacuum pumps and professional installation, adding hundreds in costs. The Stealth Solar Mini Split eliminates this complexity with a factory pre-vacuumed line set that's already filled with R32 refrigerant, sealed under vacuum, and equipped with quick-connect fittings. Simply route the line through your wall and screw the connectors onto both units—no special tools needed.

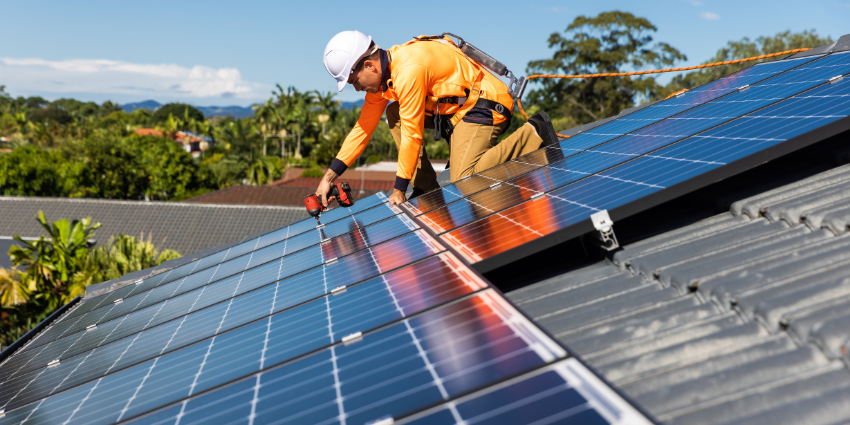

Solar Panel Requirements for Solar Mini Splits
Solar panels must be purchased separately. Solar panels cost vary based on wattage and brand and require proper roof or ground space with permits. Professional installation is recommended for installing solar panels and connecting them to the unit.
Wi-Fi Control & Energy Monitoring
The Solar Air Con app provides real-time energy tracking with live wattage displays and color-coded graphs (green for solar, orange for electric). Control temperature remotely, switch between modes (cooling, heating, dehumidifying, fan), adjust all six fan speeds, and set schedules through your phone. Works with Alexa and Google Assistant for voice control. Receive error notifications, filter reminders, and maintenance alerts to maximize solar usage and minimize costs.
Stealth Solar Mini Split Systems Frequently Asked Questions
Solar mini splits use solar panels to convert sunlight into electricity, which powers the system’s compressor and fans. That electricity runs the air conditioner/heat pump, delivering both heating and cooling while reducing dependence on the grid.
No. The Stealth Solar Mini Split can operate on solar power alone, grid electricity alone, or a hybrid of both. This flexibility ensures consistent comfort even when sunlight is limited.
They work best in regions with longer, sunnier days. Areas with high solar availability maximize system efficiency and reduce energy costs the most.
Yes. Stealth solar mini splits are designed to operate efficiently in both hot and cold climates. Even during winter, they can pull heat from the outside air to warm your home, though solar efficiency depends on daylight hours and panel exposure. This system can operate in temperatures down to 5°F.
With proper installation and maintenance, solar mini splits typically last 15–20 years, similar to standard high-quality inverter mini split systems. Solar panels themselves often carry warranties of 20–25 years, providing long-term savings and reliable performance.
Both models require between 3–7 solar panels if used in solar mode. The 12,000 BTU Stealth Solar Mini Split uses approximately 1,700 watts, while the 24,000 BTU model uses about 3,500 watts.
Shop Stealth Solar Mini Splits at HVACDirect.com
The Stealth Solar Mini Split is great for homeowners wanting to reduce energy bills, who live in locations with good solar potential, care about environmental impact, desire energy independence, need ductless heating and cooling, and are willing to invest upfront for long-term savings. Shop Stealth Solar Mini Splits at HVACDirect.com and take the first step toward sustainable, cost-effective home comfort.
Questions about sizing, installation, or solar requirements? Our HVAC experts are here to help you find the perfect solution for your home.
