24,000 BTU 21 SEER Stealth Solar Ready Single Zone Wall Mount Mini Split System w/ 16ft Line Set - R32 | 230V

24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V
24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V 24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V - Medium Space 24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V - What's included 24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V - Solar Ready 24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V - Heating and Cooling 24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V - Auto Adjusts Power Supply 24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V - Top-Tier Warranty 24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V - track on your phone 24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V - 39 dBa 24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V - functions and modes S-24Z-ACDC230 S-24W-ACDC230 EL1838-3 HW-600 87762 87762 / EL1838-3 87762 / EL1838-3 87762 / EL1838-3 MSK001
SAVE $1,588.53

Required Fields *

By

Stealth

In stock

Model

S-24W-ACDC230 / S-24Z-ACDC230

ID

207739

Be the first to review this product
5 Questions Answered
In Stock - 16 Ready to Ship
Was $3,288.52
Your Low Price $1,699.99

Free Shipping
Product Features
  • Solar Ready Hybrid System
  • AC/DC Hybrid Power Inputs
  • Heating & Cooling Capacity
  • Includes pre-vacuumed 16.4 ft refrigerant line set
  • Energy Star Certified
  • 6 Year Limited Warranty
Customize 24,000 BTU 21 SEER Stealth Solar Ready Single Zone Wall Mount Mini Split System w/ 16ft Line Set - R32 | 230V
24,000 BTU Stealth Solar Single Zone Heat Pump Condenser - R32 | 230V
24,000 BTU Stealth Solar Single Zone Heat Pump Condenser - R32 | 230V
24,000 BTU Stealth Solar Single Zone Heat Pump Condenser - R32 | 230V   + $1,049.99
24,000 BTU Stealth Solar Wall Mount Single Zone Air Handler - R32 | 230V
24,000 BTU Stealth Solar Wall Mount Single Zone Air Handler - R32 | 230V
24,000 BTU Stealth Solar Wall Mount Single Zone Air Handler - R32 | 230V   + $650.00
E Lite Equipment Pad 18" x 38" x 3"
Installation Kit for Condensers - Accessory Set
24,000 BTU 20.8 SEER Stealth Solar Single Zone Wall Mount Mini Split System - R32 | 230V

$1,699.99

24,000 BTU Stealth Solar-Ready Wall-Mount Mini-Split System (R32 – 230V)

Note this unit is Solar Ready, but does not require use of Solar for Operation.

Solar Panels Not Included

The Stealth Solar-Ready Hybrid 24,000 BTU mini-split is designed for powerful, energy-efficient climate control while supporting both grid and direct solar inputs. It seamlessly switches between AC and DC, allowing professional installers to offer solar-integrated comfort without compromising performance.

Solar-Ready, Grid-Optional Operation

  • Hybrid AC/DC input (208–240 VAC & 90–380 VDC) accepts solar power and grid power simultaneously
  • Automatically prioritizes solar input during daylight hours
  • MC4-compatible solar terminals—connect PV array directly to the outdoor unit
  • Built-in AC power limiter (adjustable up to 2250 W AC) controls grid usage
  • Recommended solar input between 1600–2400 W allows daytime off-grid capability

High-Efficiency Heating & Cooling

  • 24,000 BTU cooling and 26,000 BTU heating capacity
  • SEER2 rating of 21 / HSPF2 rating of 9.6 for excellent seasonal efficiency
  • COP of 11.82 Btu/W under optimal conditions
  • Operates in outdoor temperatures from 5°F to 131°F(14 °F to 136 °F)
  • Eco-friendly R32 refrigerant with reduced environmental impact

Installer-Focused Design

  • Includes pre-vacuumed 16.4 ft refrigerant line set, ready for professional connection
  • Quick-connect MC4 solar inputs simplify PV integration
  • Compact outdoor unit (approx. 132 lb) accommodates versatile mounting
  • Indoor unit designed for whisper-quiet operation (39–50 dB(A)) with modern styling
  • Maximum line-set length: 82 ft; elevation difference: up to 32 ft

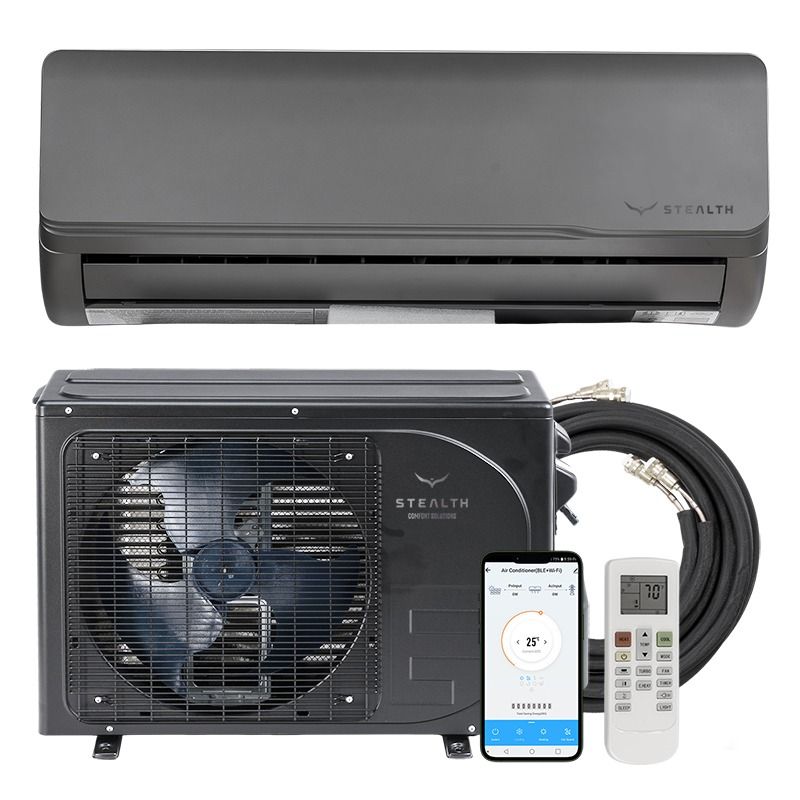

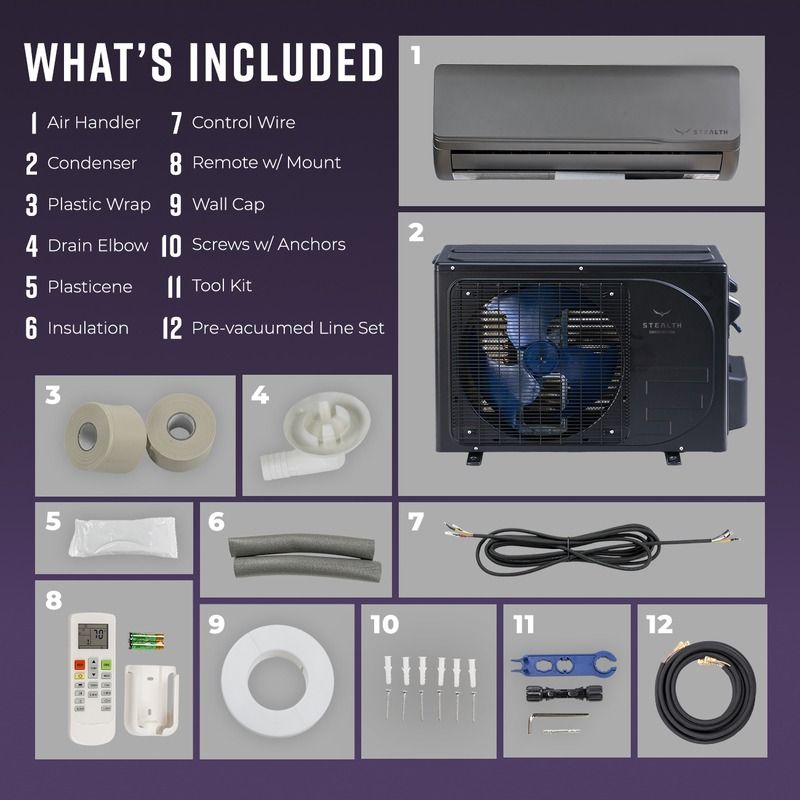

What’s Included

  • Indoor air handler
  • Outdoor condenser unit
  • 16.4 ft refrigerant line set and interconnect wiring
  • Wall mounting bracket and accessory kit

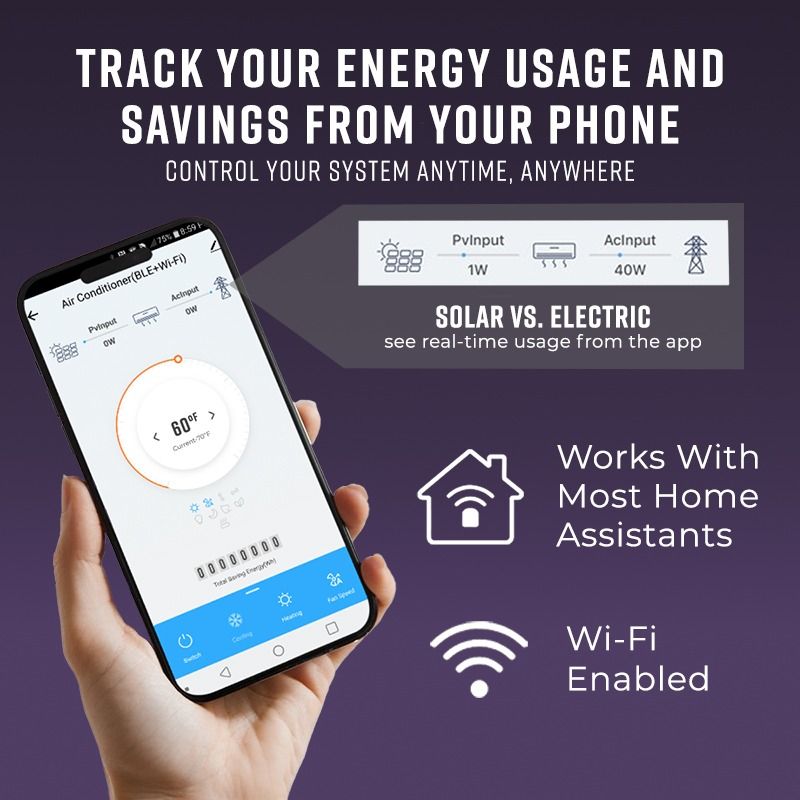

  • WiFi Ready
  • LCD remote control

Warranty

  • 6-Year Limited Warranty on compressor and 4-Year on parts with Online Registration

Ideal For

  • Residential or light-commercial spaces up to ~1,350 sq ft
  • Properties integrating solar PV to offset grid usage
  • Installations prioritizing energy efficiency and flexible power sourcing
More Information
24,000 BTU Stealth Solar Single Zone Heat Pump Condenser - R32 | 230V
FeatureSpec
SKUS-24Z-ACDC230
Weight114.640000
AHRI Certificate Number208650754
ManufacturerStealth
Product FeaturesWiFi, Solar Ready
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 98'
Additional InformationMinimum Line Set Length: 10'
Additional InformationDrain: 5/8"
HSPF10
Cooling BTU24,000
Heating BTU24,000
Maximum CFM1940 CFM
Decibel Level (dBA)58 dB(A)
Energy StarYes
RefrigerantR32
SEER18-20
EER11.7
Compressor TypeRotary
Liquid Line1/4"
Suction Line1/2"
Electrical208-230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size20 Amps
Min. Breaker Size16.33 Amps
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating5F - 86F
Min/Max Outdoor Temp for Cooling32F - 131F
Zone CompatibilitySingle Zone
Height27.56"
Width35.43"
Depth13.27"
Warranty6 year compressor, 4 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

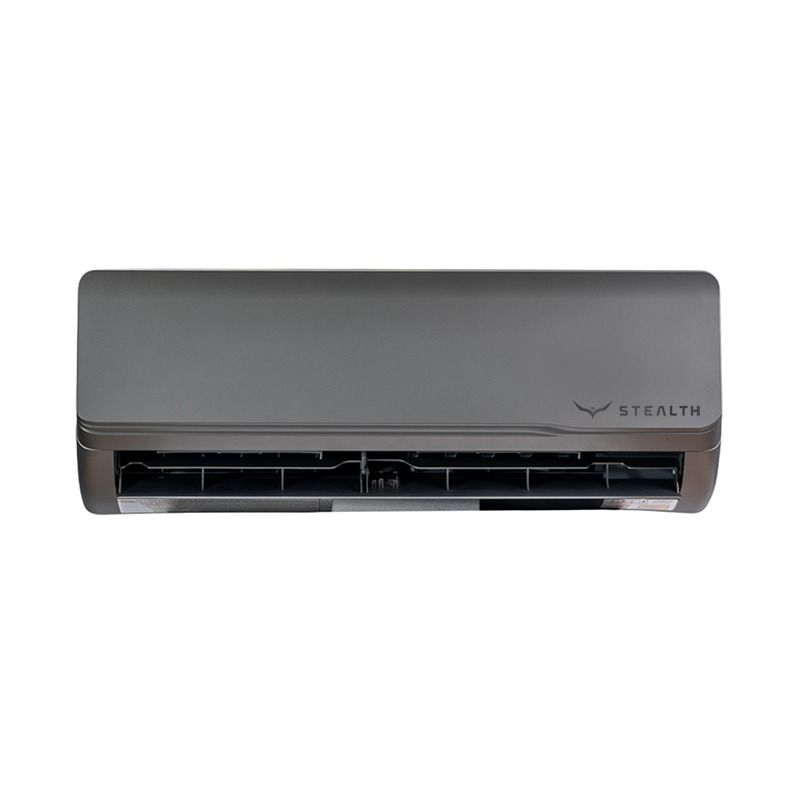

24,000 BTU Stealth Solar Wall Mount Single Zone Air Handler - R32 | 230V
FeatureSpec
SKUS-24W-ACDC230
Weight38.580000
ManufacturerStealth
ControllerWireless Included
Product FeaturesWiFi, Solar Ready
Additional InformationDrain: 5/8"
Cooling BTU24,000
Heating BTU24,000
Maximum CFM430-700 CFM
Decibel Level (dBA)Indoor Unit: 39-50 dB(A)
RefrigerantR32
SEER18-20
EER11.7
Liquid Line1/4"
Suction Line1/2"
Electrical208-230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height12.99"
Width42.51"
Depth9.33"
Warranty6 year compressor, 4 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
FeatureSpec
SKUHW-600
Weight9.200000
ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
FeatureSpec
SKU87762
Weight5.000000
ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
FeatureSpec
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
FeatureSpec
SKUEL1838-3
Weight16.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:24,000 BTU 21 SEER Stealth Solar Ready Single Zone Wall Mount Mini Split System w/ 16ft Line Set - R32 | 230V
Your Rating
Customer Questions
What happens if this breaks down?
HVACDirect.com gives you lifetime tech support. Many common problems can be solved with a phone call to us. HVACDirect.com is an authorized dealer of ACiQ, therefore equipment we sell carries the full manufacturer's warranty. The warranty applies to all parts. You have to register the products online in order to extend the warranty to the full 10 years, otherwise the term is 5 years. If a part fails under warranty, you will not pay anything for the replacement part. Should a part fail under warranty, the first step is to have a professional confirm what part needs to be replaced. Then, contact us at customerservice@hvacdirect.com or by calling and asking for customer service.
Read More
What happens if it arrives damaged?
If you are present during drop-off and you see obvious signs of damage or rough handling in transit - please ask the driver to wait while you inspect the equipment. If it is damaged badly enough that you believe it can not function, you have the right to refuse the damaged portion of the shipment. If you discover the damage after the driver has left, take photos of the damage and send them to customerservice@hvacdirect.com. Please refer to your order number in the email. This starts the process and one of our representatives will be in touch with you promptly.
Read More
What are Pre-Vacuumed Line Sets?
Pre-vacuumed line sets simplify your install by eliminating the need to pull a vacuum on the system before releasing refrigerant. This reduces install time as well as providing a more self install option.
Read More
Can I extend or use longer line sets with this system?

   Yes, however you will need to make a minor change to the wall mount unit as well understand that any other line sets you use will require you to pull a vacuum on the system before releasing refrigerant.

Read More
Who makes Stealth?

   Stealth mini splits are engineered and produced by one of the most advanced HVAC manufacturers in the world. This global company is known for its innovation in high-efficiency HVAC systems and supplies equipment to many of the most recognized brands in the industry. With cutting-edge manufacturing facilities and rigorous quality control, they deliver systems with exceptional performance and reliability. Stealth is built to the same demanding standards, offering premium features at a fraction of the cost of name-brand alternatives.

Read More
