LG High-Efficiency Electric Inverter Heat Pump Water Heater | 80 Gallon | 94 FHR | 3.90 UEF | 10-Year Warranty | APHWC801M

High-Efficiency Inverter Heat Pump Water Heating for Exceptional Energy Savings

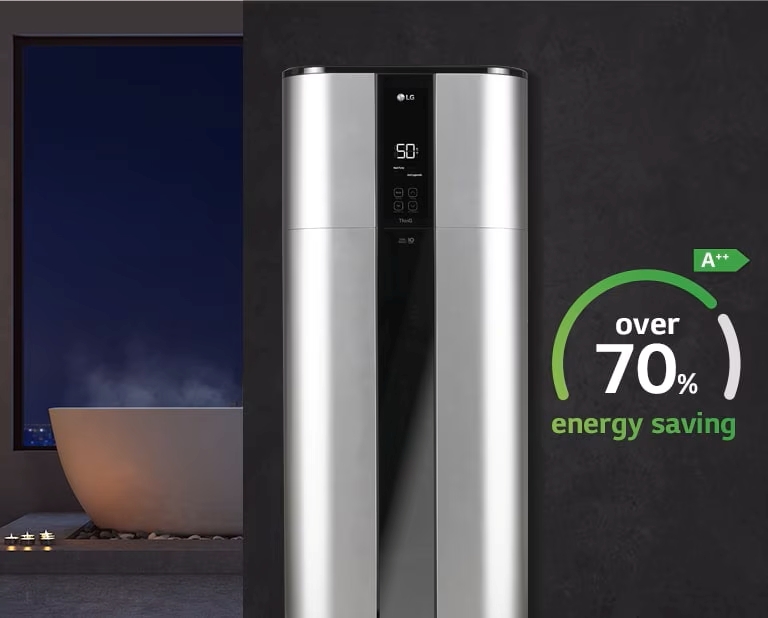

Upgrade your home’s hot water system with the LG 80-Gallon High-Efficiency Inverter Electric Heat Pump Water Heater (Model APHWC801M), engineered to deliver continuous hot water comfort while drastically cutting energy consumption. Featuring an advanced Inverter Twin Rotary Compressor and dual back-up heating elements, this high-capacity unit achieves an extraordinary Uniform Energy Factor of 3.9 UEF, drastically reducing annual electrical consumption to just 1,272 kWh/year. Designed in a sleek square-shaped silver cabinet, the APHWC801M provides an ample 72-gallon rated storage volume and a impressive First Hour Rating (FHR) of 94 gallons, making it the ideal solution for high-demand residential households.

Built for whisper-quiet performance and long-term durability, this premium heat pump water heater operates at noise levels as low as 42 dBA in Auto mode. It combines built-in LG ThinQ™ Wi-Fi smart control with dual energy sources—a heat pump plus upper and lower 5 kW heating elements—ensuring redundant, reliable operation even under heavy water demand or extreme ambient conditions.

Key Benefits

• Ultra-High Efficiency (3.9 UEF) – Uses advanced inverter compressor technology to deliver maximum energy savings, consuming only 1,272 kWh/year.
• High-Capacity Hot Water Delivery – Features an 80-gallon nominal capacity (72-gal rated storage volume) with an extraordinary 94-gallon First Hour Rating (FHR) and a 22.7 GPH recovery rate at a 90°F rise.
• Inverter Twin Rotary Compressor – Continuously modulates heating output with an electronic expansion valve (EEV) to optimize performance across varying ambient temperatures.
• Dual Energy Heat Sources with Redundancy – Combines the heat pump module with dual 5 kW back-up electric heating elements, allowing back-up operation if a single component requires service.
• Built-In LG ThinQ™ Wi-Fi Smart Controls – Remotely manage operation modes, adjust hot water setpoints, set custom schedules, and monitor energy usage via the LG ThinQ app.
• Whisper-Quiet Operation – Operates at an ultra-quiet 42 dBA in Auto mode and 45 dBA in Turbo mode, preserving a peaceful home environment.
• Corrosion-Resistant Enamel Tank & Anode Rod – Protected by heavy-duty foam insulation (1.6 to 2.4 in.), an internal enamel tank coating, and a protective anode rod to ensure long water tank service life.
• Wide Ambient Operating Range – Operates in heat pump mode across outdoor/ambient air temperatures ranging from 23°F to 120°F.
• ENERGY STAR® Certified & cCSAus Listed – Certified to exceed stringent DOE efficiency requirements and North American safety standards.

Designed for High-Demand Residential Applications

With an 80-gallon nominal capacity and a First Hour Rating of 94 gallons, the LG APHWC801M effortlessly satisfies the simultaneous hot water needs of large families and multi-bath homes. An integrated water temperature sensor continuously tracks water draw to automatically optimize heating cycles and maximize efficiency.

Built-in Demand Response technology helps satisfy state requirements for qualifying installations in Colorado, Washington, Oregon, and New York

Intelligent LG ThinQ™ & Digital Control Display

The sleek front panel features a clear digital display with 4-button intuitive control (Mode, Set, Up, Down). Integrated LG ThinQ™ Wi-Fi lets homeowners monitor water temperature and switch between operating modes from anywhere:

• Auto Mode – Intelligently balances heat pump and element usage for optimal efficiency and quick comfort.
• Heat Pump Mode – Maximizes energy savings by utilizing only the inverter heat pump for water heating.
• Turbo Mode – Runs the heat pump and heating elements simultaneously for maximum hot water recovery.
• Vacation Mode – Lowers setpoints while away to conserve energy during extended trips.

Built for Quiet, Durable Performance

An innovative brushless DC fan motor and propeller design deliver smooth airflow while maintaining whisper-quiet sound levels between 42 dBA and 45 dBA. The high-density foam insulation (1.6~2.4 in.) minimizes standby heat loss, while side-located 3/4" NPT water connections streamline plumbing routing.

Warranty

The LG APHWC801M Heat Pump Water Heater is backed by LG’s comprehensive residential warranty program, offering trusted quality and support from a world leader in HVAC and appliance engineering.

What’s Included

• LG 80-Gallon Inverter Electric Heat Pump Water Heater (APHWC801M)
• Pre-Installed Primary Anode Rod
• Temperature & Pressure (T&P) Relief Valve (3/4" NPT)
• Drain Valve (3/4" NPT)
• Owner's Manual & Installation Guide

Requirements & Considerations

• Electrical Requirements – Requires a dedicated 208-230V / 60 Hz / 1-Phase power supply with a Minimum Circuit Ampacity (MCA) of 30.1A and Maximum Overcurrent Protection (MOP) of 30.0A breaker size.
• Upper & Lower Heating Elements – Rated at 3.8 kW @ 208V or 5.0 kW @ 240V.
• Water Connections – Side-mounted 3/4" female or male NPT inlet and outlet pipe thread connections.
• Drain Hose Connection – Accommodates 3/4" or 1/2" male/female pipe thread condensate drain line.
• Working Pressure Ratings – Maximum working water tank pressure of 150 psi; design system pressure of 290 psi (High Side) / 130.5 psi (Low Side).
• Dimensions & Clearance – Net unit dimensions measure 22-27/32" W x 79-1/16" H x 22-29/32" D. Ensure adequate room volume or optional duct adapter (PHDCLA0) installation for proper airflow.
