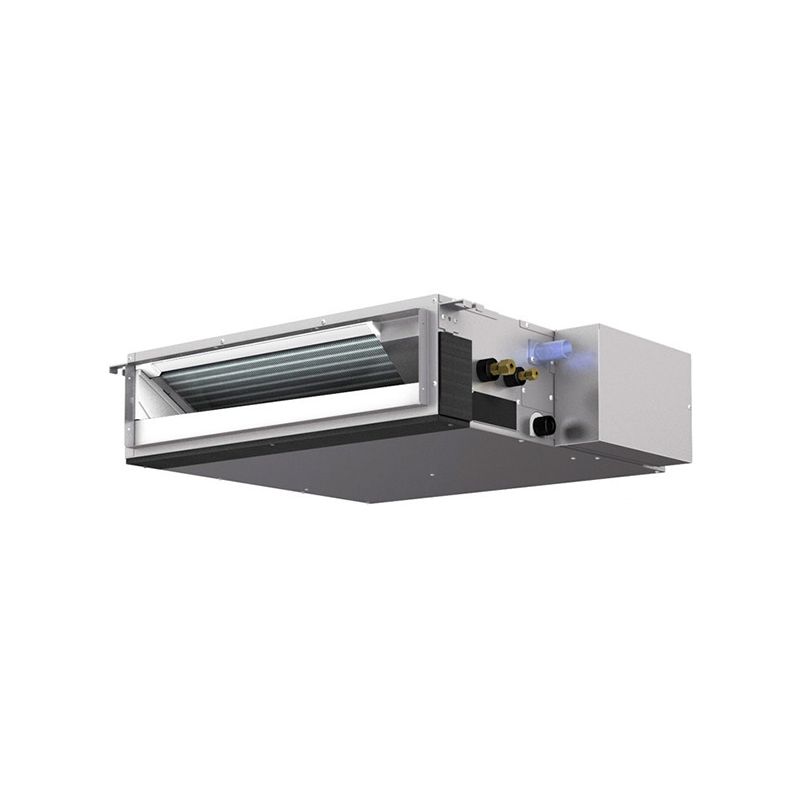

18,000 BTU Mitsubishi Concealed Duct Air Handler-R410A

18,000 BTU Mitsubishi Concealed Duct Air Handler-R410A
By

Mitsubishi

Out of stock
Model

PEAD-A18AA7

ID

13547

Please note that in order to function, this air handler must be installed with a condenser, controller, and other installation equipment, also available for purchase.

  • Can normally cover up to a medium-sized room in average conditions
  • 18,000 BTU slim ducted air handler
  • Designed for both small ductwork runs and airflow directly into a room
  • .4 gallon per hour dehumidification rate

The Mitsubishi PEAD-A18AA7 is a slim ducted air handler designed to fit in tighter spaces, such as crawl spaces. The unit can be installed with ductwork runs and branching off into a couple smaller rooms, or the unit can blow air directly into a room. All of the features of the PEAD-A18AA7 provide enhanced comfort to your home in a convenient form factor.

More Information
18,000 BTU Mitsubishi Concealed Duct Air Handler-R410A
FeatureSpec
SKUPEAD-A18AA7
Weight (in lbs)62
Brand/ManufacturerMitsubishi
UPC795934783487
ControllerNot Included
Additional InformationDrain: 1-1/4" PVC
Cooling BTU18,000 BTU
Heating BTU19,000 BTU
Maximum CFM384-600 CFM
Decibel Level (dBA)30-37
Energy StarNo
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height9-7/8"
Width35-7/16"
Depth28-7/8"
Warranty10 Years with Online Registration
