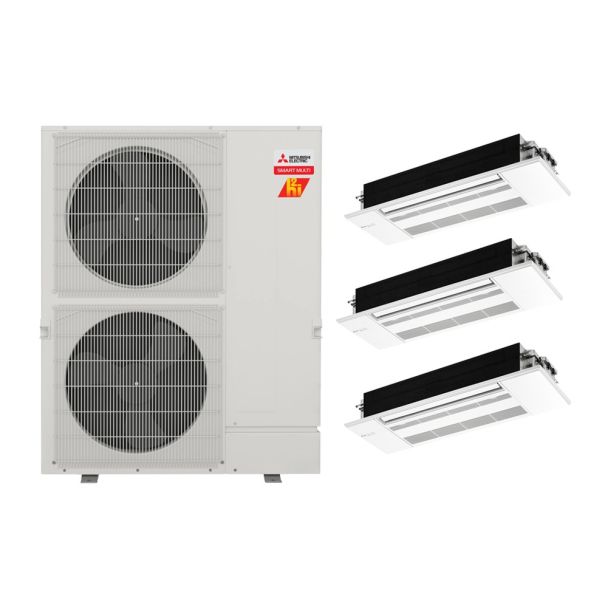

42,000 BTU 19 SEER Mitsubishi Tri Zone Mini Split H2i Hyper Heat Pump System 12+18+18-R410A

OVERVIEW

With its enhanced operation features, the Mitsubishi MLZ-KP12NA ceiling cassette air handler provides superior heating and cooling to your room when paired with a compatible condenser, living up to Mitsubishi’s industry-leading comfort standards.

QUICK FACTS

• Designed to be able to heat and cool a medium room (in an average climate)
• 12,000 BTU
• Quiet operation
• Dry mode setting

At 12,000 BTU BTU, the Mitsubishi MLZ-KP12NA air handler is suitable for up to a small room in ideal climates. Please note that in order for this air handler to function, a compatible condenser is required.

The MLZ-KP12NA air handler has a small form factor, allowing it to fit between standard 16” joists, and with a depth of only 7-1/2”, accommodating your needs for almost any room. As a ceiling cassette, the unit can be installed in locations where wall or floor mounted units are not practical or desired. Please note that for all installations, a ceiling cassette grill is required, available at an additional cost.

Intelligent Comfort

The Mitsubishi MLZ-KP12NA brings quiet operation to enhanced comfort. With its multiple operating modes and multiple fan speeds, the MLZ-KP12NA air handler will heat and cool your room with ease and adjust the temperature more precisely to keep you comfortable.

Compatible Condensers

• Single Zone: SUZ-KA12NA2, SUZ-KA12NAHZ
• Multi Zone: MXZ-2C20NA2, MXZ-3C24NA2, MXZ-3C30NA2, MXZ-4C36NA2, MXZ-5C42NA2, MXZ-8C48NA, MXZ-8C60NA, MXZ-2C20NAHZ2, MXZ-3C24NAHZ2, MXZ-3C30NAHZ2, MXZ-4C36NAHZ, MXZ-5C42NAHZ, MXZ-8C48NAHZ

Please note that in order to function, this air handler must be installed with a condenser, controller, and other installation equipment, also available for purchase.

OVERVIEW

With its enhanced operation features, the Mitsubishi MLZ-KP18NA ceiling cassette air handler provides superior heating and cooling to your room when paired with a compatible condenser, living up to Mitsubishi’s industry-leading comfort standards.

QUICK FACTS

• Designed to be able to heat and cool a medium room (in an average climate)
• 18,000 BTU
• Quiet operation
• Dry mode setting

At 18,000 BTU BTU, the Mitsubishi MLZ-KP18NA air handler is suitable for up to a small room in ideal climates. Please note that in order for this air handler to function, a compatible condenser is required.

The MLZ-KP18NA air handler has a small form factor, allowing it to fit between standard 16” joists, and with a depth of only 7-1/2”, accommodating your needs for almost any room. As a ceiling cassette, the unit can be installed in locations where wall or floor mounted units are not practical or desired. Please note that for all installations, a ceiling cassette grill is required, available at an additional cost.

Intelligent Comfort

The Mitsubishi MLZ-KP18NA brings quiet operation to enhanced comfort. With its multiple operating modes and multiple fan speeds, the MLZ-KP18NA air handler will heat and cool your room with ease and adjust the temperature more precisely to keep you comfortable.

Compatible Condensers

• Single Zone: SUZ-KA18NA2, SUZ-KA18NAHZ
• Multi Zone: MXZ-3C24NA2, MXZ-3C30NA2, MXZ-4C36NA2, MXZ-5C42NA2, MXZ-8C48NA, MXZ-8C60NA, MXZ-3C24NAHZ2, MXZ-3C30NAHZ2, MXZ-4C36NAHZ, MXZ-5C42NAHZ, MXZ-8C48NAHZ

Please note that in order to function, this air handler must be installed with a condenser, controller, and other installation equipment, also available for purchase.

The Mitsubishi MLP-444W is one of the grille options required to complete a KP cassette installation.

Features:

• Allows for direct service of unit from below.
• Overlaps a 1.5' x 4' area to hide the ceiling cassette body in a drop ceiling or recessed between 16" on center joists.

Compatible Indoor Units:

Ceiling Cassette

• KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA

OVERVIEW

The Mitsubishi MXZ-SM42NAMHZ-U1 is a heat pump condenser designed to be used in multi zone system setups. As one air handler is needed per room that you are trying to heat and cool, multiple single zone condensers can take up a lot of space in your yard, making a multi zone unit more practical in many applications. With its integrated drain pan heater allowing it to heat down to -13°F, the MXZ-SM42NAMHZ-U1 will keep you warm even through the coldest months of the year.

FEATURES

• 42,000 BTU multi zone heat pump condenser
• Variable speed Inverter-driven compressor with quiet operation features
• Requires a branch box
• Hyper Heat technology, supporting enhanced comfort down to -13°F

42,000 BTU

The Mitsubishi MXZ-SM42NAMHZ-U1 is rated to handle a total of 42,000 BTU, which generally should be the same or greater than the total BTU count across all air handlers that this unit is paired with. In some instances, a certified pairing will have a higher BTU count total than this condenser’s rating. This is intentional, as the condenser can easily handle more, however anything higher than this rating can potentially lower the speed that the unit can heat and cool, as well as limit the functional outputs of each air handler if they are all running at the same time.

Warranty

Mitsubishi offers a 5 year parts and 7 year compressor warranty on all of its products. When the unit is registered online through the manufacturer after an installation that follows your state and local codes, the warranty is upgraded to a 10 year parts and compressor warranty.

The Mitsubishi MXZ-SM42NAMHZ-U1 is designed with only one set of line set ports, allowing it to support a higher BTU output than units with multiple sets. As such, at least one branch box is required for this unit to function to allow it to connect to multiple air handlers. Along with branch boxes, this condenser requires air handlers, controllers, and other basic installation equipment to function, all of which are available at an additional cost.

With its variable speed compressor, the MXZ-SM42NAMHZ-U1 can provide more precise adjustments to the covered spaces with the right air handlers. This also slightly improves electrical efficiency by ramping the compressor up and down based on the unit’s air handlers’ needs, as well as providing a more stable temperature output from the connected air handlers to provide superior comfort.

For ease of control, many air handlers that are compatible with the MXZ-SM42NAMHZ-U1 can use any Mitsubishi-brand thermostat or adapter. The most convenient to control—the Kumo cloud WiFi adapter, found here—allows each air handler to be accessed from anywhere that you have Internet. Please note that in most applications, you will need one thermostat or adapter per indoor air handler that you want to be able to control with it.

This product requires the use of a branch box in order to function as needed. Branch boxes are sold separately.

This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.

Features:

• Insulated
• Flared Line Ends
• Heavy Duty Refrigerant Lines
