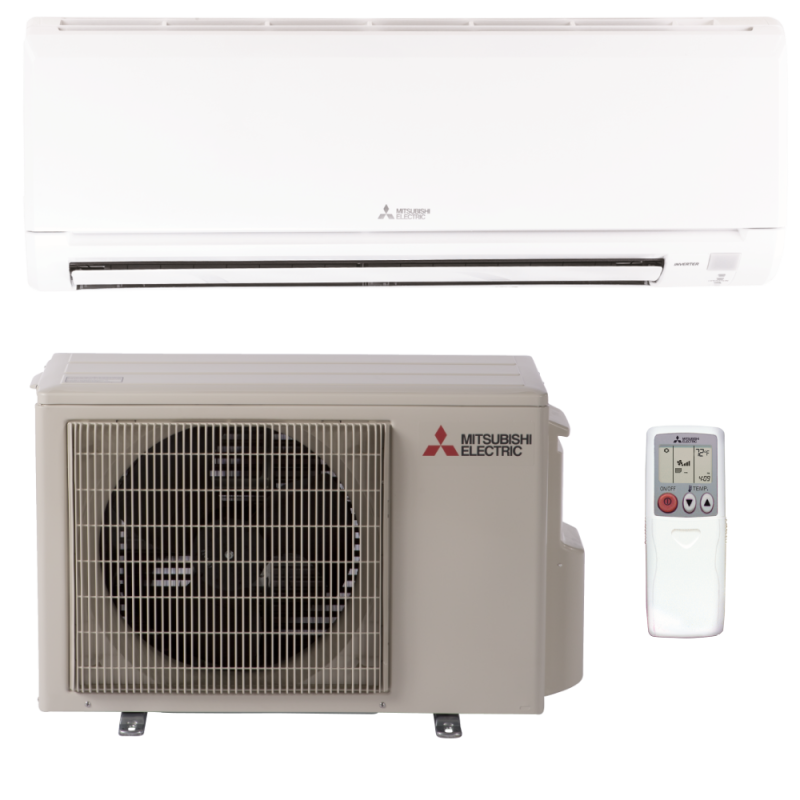

9,000 BTU 24.6 SEER Wall Mounted Mitsubishi Mini Split GS Single Zone Heat Pump - MZ-GL09NA

9,000 BTU 24.6 SEER Wall Mounted Mitsubishi Mini Split GS Single Zone Heat Pump - MZ-GL09NA
Customer reviews
Rating:
5 out of 5
Out of stock
By

Mitsubishi

Out of stock
Model

MSZ-GL09NA / MUZ-GL09NA

ID

2870

OVERVIEW

With its superior technology, Mitsubishi is considered one of the top brands of mini split on the market today. The MSZ-GL09NA / MUZ-GL09NA single-zone mini split lives up to Mitsubishi’s superior expectations, providing you superior comfort with a high efficiency.

QUICK FACTS

  • Designed to be able to heat and cool a small room (in an ideal climate)
  • 9,000 BTU, 24.6 SEER
  • 230v electrical
  • Energy Star certified
  • Dry mode operation
9,000 BTU, 24.6 SEER

At 9,000 BTU, the MSZ-GL09NA / MUZ-GL09NA is generally suitable to heat and cool a small room in many climates. With a 24.6 SEER rating, the unit has a superior electrical efficiency than most central systems and is Energy Star certified. This efficiency combination makes it able to be installed across all mainland US states. Moreover, Mitsubishi’s special Econo Cool mode adjusts the cooling points on the air handler and sweeping vanes, improving both efficiency while providing faster temperature changes.

Warranty

The MSZ-GL09NA / MUZ-GL09NA comes with Mitsubishi’s standard 5 year parts and 7 year compressor warranty out of the box, and when the installation follows your state and local codes and you register the unit online through the manufacturer, it becomes a 10 year parts and compressor warranty.

Durability and Reliability

The Mitsubishi MSZ-GS09NA / MUZ-GS09NA single-zone mini split has a Blue Fin condenser design, making it resistant to wind, dust, salt, and rust to exponentially extend its lifespan. The unit functions down to -4°F, allowing you to be able to rely on the unit when you need it most.

Superior Comfort

The Mitsubishi brand offers superior comfort to its customers, offering the MSZ-GS09NA / MUZ-GS09NA with its top-brand enhancements. The unit is a hot-start model, meaning that the unit will not blow cold air into the room if it calls for heat, waiting for the heat exchanger to be ready to heat prior to operation. The unit also offers a dry mode, providing an enhanced dehumidification over other brands.

Intelligent for Ease

Mitsubishi’s MSZ-GL09NA / MUZ-GL09NA mini split uses its Smart Set technology to provide a consistent temperature by variating airflow, direction, and air temperature output. When paired with the Kumo Cloud or one of the Cielo thermostats, the unit can connect to the Internet and you can control it from anywhere in the world that you have Internet access. The MSZ-GL09NA / MUZ-GL09NA’s air handler also uses its own air to heat itself up, quickly and efficiently providing heat to your home so that you are comfortable faster.

Health in Mind

Mitsubishi does not stop at a superior comfort; it is also concerned with the health of whomever uses the unit. The MSZ-GL09NA / MUZ-GL09NA single-zone mini split provides an advanced filtration system, combining deodorization, anti-allergen, and microbial break-down functions all in one, enhanced filtration system.

More Information
9,000 BTU 24.6 SEER Wall Mounted Mitsubishi Mini Split GS Single Zone Heat Pump - MZ-GL09NA
FeatureSpec
SKUMSZ-GL09NA / MUZ-GL09NA
Refrigerant ChargePre-Charged For: 25'
Weight (in lbs)114
AHRI Certificate Number202680594
Brand/ManufacturerMitsubishi
UPC795934769085
ControllerWireless Included
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 65'
Additional InformationDrain: 5/8"
Cooling BTU9,000 BTU
Heating BTU10,900 BTU
Maximum CFM109-406 CFM
Decibel Level (dBA)Indoor Unit: 19-43 | Outdoor Unit: 48-50
Energy StarYes
RefrigerantR410A
HSPF12.8
SEER2 (Efficiency)24.6
EER15.4
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size15
Min. Breaker Size9
Amperage Requirement15
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-4°-75°
Min/Max Outdoor Temp for Cooling14°-115°
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
HeightIndoor Unit: 11-5/8" | Outdoor Unit: 21-5/8"
WidthIndoor Unit: 31-7/16" | Outdoor Unit: 31-1/2"
DepthIndoor Unit: 9-1/8" | Outdoor Unit: 11-1/4"
Additional InfoIndoor Unit Weight: 22 lbs | Outdoor Unit Weight: 81 lbs
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Flawless product
    Quality
    100%
    Service
    100%
    Price
    100%
    The instructions having some steps that were not necessary, but installation was very straightforward. I have had the unit for almost 4 years and it has worked flawlessly.

    Review by

    Posted on

  2. Great service and pricing
    Quality
    100%
    Service
    100%
    Price
    100%
    I bought this unit to replace a window unit. I will not be installing it for 6-8 weeks as I need windows replaced in room first. After it is done I'll give a review at that time. One of the parts that was ordered did not come in. One call and it is being ship to me. No hassle. Was taken care of and I love the service so far. Akacia was a pleasure to work with.

    Review by

    Posted on

  3. Marie
    Quality
    100%
    Price
    100%
    Service
    100%
    I am very pleased with your service, easy ordering process and the product. The delivery was sooner than expected, the driver called ahead of time to make sure I was there to meet him and the product was very well packaged. I had a DIY brand (MrCool) that didn’t last 2 years, so much of the set up was already in place. The Mitsubishi that I purchased from you was easy to install and runs perfectly. It has a better warranty than the MrCool but I expect to feel the value in the long run when this unit lasts much longer.

    I am building another home and will put in 3 units in that house. I will surely reach out to you when the time comes to order.

    Ii means a lot to me, especially in this day/age, that you reached out to check on my satisfaction.

    Review by

    Posted on

  4. Will use again in the future
    Quality
    100%
    Price
    100%
    Service
    100%
    Exactly what I ordered for a great price and fast easy shipping

    Review by

    Posted on

  5. Love it
    Quality
    100%
    Price
    100%
    Service
    100%
    Fantastic unit, it runs great and have had no problems thus far

    Review by

    Posted on

Customer Questions
Does the Mitsubishi Model MSZ-GL09NA have Freon in it?
The outdoor condenser comes pre-charged from the factory with a minimal amount of R410A refrigerant. For more assistance, please give us a call at 1-888-376-5487.
Is this the right size for a 24x16 room?
Generally, a 9,000 BTU will be a bit too small as it is best suitable for rooms around 250 sqft. For a 24x16 room, ~400sqft, a 12,000 BTU unit will be an excellent choice as it can properly service a room up in the 500sqft range. Below is a link to our Mitsubishi 12,000 BTU wall mounted mini-splits. However, sizing has many determining factors such as geographical location, insulation quality, etc... so please keep those in mind as well. If you have any further questions or would like addition assistance please feel free to give us a call! Thank you. https://hvacdirect.com/ductless-mini-splits/single-zone-ductless-mini-splits/filter/12000-btu-1-ton-btu-tonnage/mitsubishi/wall-mounted.html
What voltage does this unit run off
This system is rated for 230v electrical. If you have any further questions please feel free to give us a call! Thanks.
What are the dimensions of the wall mounted unit?
Hello! Thank you for contacting HVACDirect.com! The dimensions of the wall mounted air handler are as follows (WxDxH): 31-7/16" x 9-1/8" x 11-5/8". Please contact us at 1-888-901-5460 for more information!
