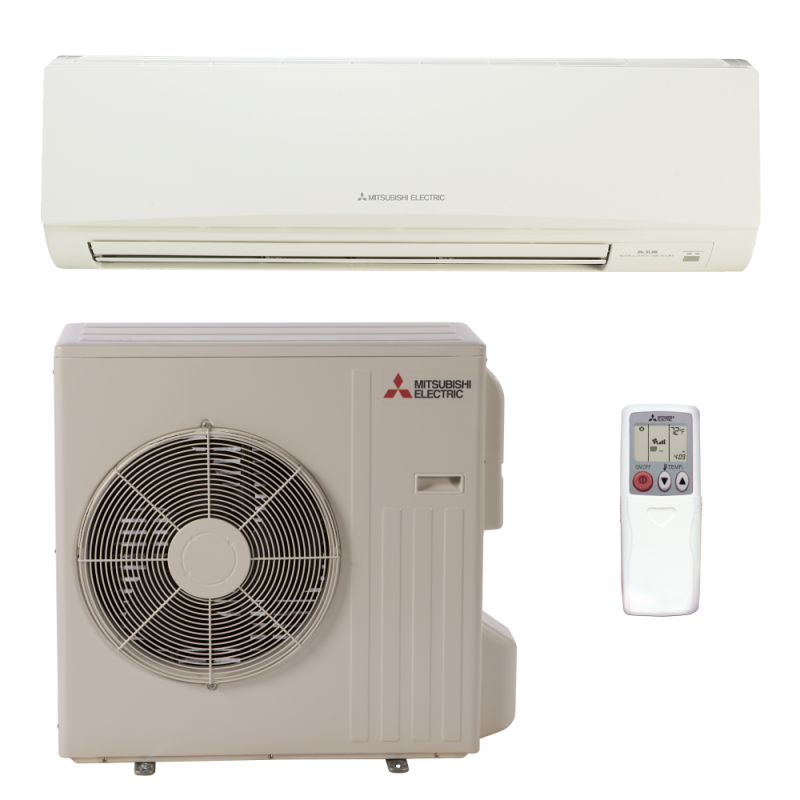

36,000 BTU 16.2 SEER Wall Mounted Mitsubishi Mini Split Single Zone Heat Pump - MSZ-GS36NA-R410A

36,000 BTU 16.2 SEER Wall Mounted Mitsubishi Mini Split Single Zone Heat Pump - MSZ-GS36NA-R410A
By

Mitsubishi

Out of stock
Model

MSZ-GS36NA / MUZ-GS36NA

ID

8964

OVERVIEW

With its superior technology, Mitsubishi is considered one of the top brands of mini split on the market today. The MSZ-D36NA-8 / MUZ-D36NA-1 single-zone mini split lives up to Mitsubishi’s superior expectations, providing you superior comfort with a high efficiency.

QUICK FACTS

  • Designed to be able to heat and cool a large room (in an ideal climate)
  • 36,000 BTU, 16.2 SEER
  • Dry mode operation
36,000 BTU, 16.2 SEER

At 36,000 BTU, the MSZ-GS36NA & MUZ-GS36NA is generally suitable to heat and cool a large room in many climates. With a 16.2 SEER rating, the unit has a superior electrical efficiency than most central systems. This efficiency combination makes it able to be installed across all mainland US states. Moreover, Mitsubishi’s special Econo Cool mode adjusts the cooling points on the air handler and sweeping vanes, improving both efficiency while providing faster temperature changes.

Warranty

The MSZ-GS36NA & MUZ-GS36NA comes with Mitsubishi’s standard 5 year parts and 7 year compressor warranty out of the box, and when the installation follows your state and local codes and you register the unit online through the manufacturer, it becomes a 10 year parts and compressor warranty.

Durability and Reliability

The Mitsubishi MSZ-GS36NA & MUZ-GS36NA single-zone mini split has a Blue Fin condenser design, making it resistant to wind, dust, salt, and rust to exponentially extend its lifespan. The unit functions down to -4°F, allowing you to be able to rely on the unit when you need it most.

Superior Comfort

The Mitsubishi brand offers superior comfort to its customers, offering the MSZ-D36NA-8 / MUZ-D36NA-1 with its top-brand enhancements. The unit is a hot-start model, meaning that the unit will not blow cold air into the room if it calls for heat, waiting for the heat exchanger to be ready to heat prior to operation. The unit also offers a dry mode, providing an enhanced dehumidification over other brands.

Intelligent for Ease

Mitsubishi’s MSZ-GS36NA & MUZ-GS36NA mini split uses its Smart Set technology to provide a consistent temperature by variating airflow, direction, and air temperature output. When paired with the Kumo Cloud or one of the Cielo thermostats, the unit can connect to the Internet and you can control it from anywhere in the world that you have Internet access. The MSZ-GS36NA & MUZ-GS36NA’s air handler also uses its own air to heat itself up, quickly and efficiently providing heat to your home so that you are comfortable faster.

Health in Mind

Mitsubishi does not stop at a superior comfort; it is also concerned with the health of whomever uses the unit. The MSZ-GS36NA & MUZ-GS36NA single-zone mini split provides an advanced filtration system, combining deodorization, anti-allergen, and microbial break-down functions all in one, enhanced filtration system.

More Information
36,000 BTU 16.2 SEER Wall Mounted Mitsubishi Mini Split Single Zone Heat Pump - MSZ-GS36NA-R410A
FeatureSpec
SKUMSZ-GS36NA / MUZ-GS36NA
Refrigerant ChargePre-Charged For: 25'
Weight (in lbs)195
Brand/ManufacturerMitsubishi
UPC795934783111
ControllerWireless Included
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 100'
Additional InformationDrain: 5/8"
Cooling BTU33,200 BTU
Heating BTU35,200 BTU
Maximum CFM350-887 CFM
Decibel Level (dBA)Indoor Unit: 32-51 | Outdoor Unit: 56
Energy StarYes
RefrigerantR410A
CapacityDehumidification Rate: 1.41 gal/hr
HSPF10
SEER1 (Efficiency)16-17
EER8.8
Liquid Line1/4"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size25
Min. Breaker Size21
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-4°-75°
Min/Max Outdoor Temp for Cooling14°-115°
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:36,000 BTU 16.2 SEER Wall Mounted Mitsubishi Mini Split Single Zone Heat Pump - MSZ-GS36NA-R410A
Your Rating
Customer Questions
What is the max-min current draw (in amps) for the 3 ton unit?
This unit has a maximum of 25 amps and a minimum of 21 amps. For more assistance, please give us a call at 1-888-377-2850.
