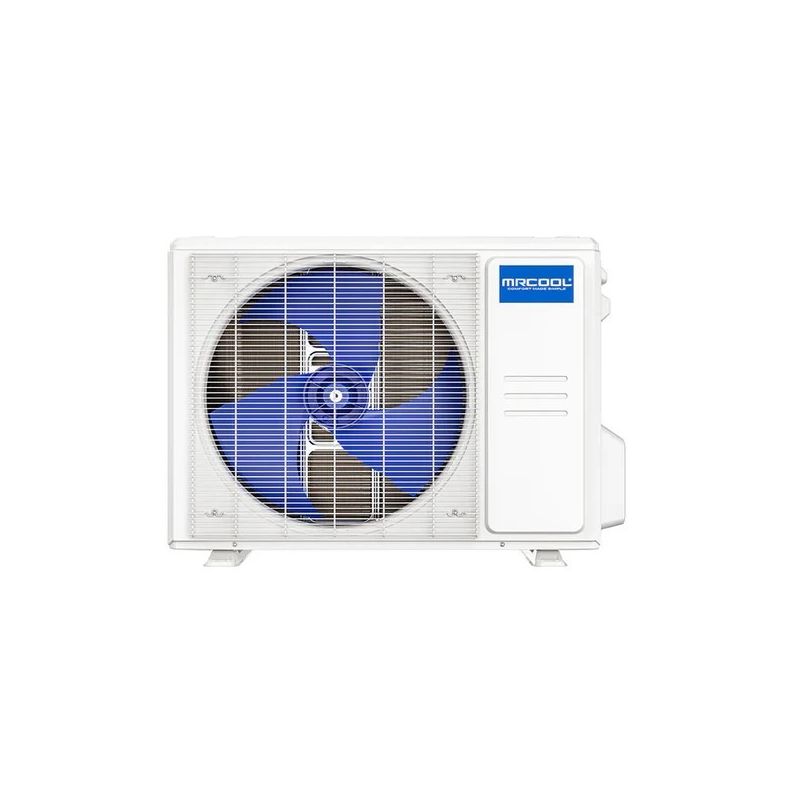

MRCOOL 36,000 BTU DIY 5th Generation Single Zone Mini Split Heat Pump Condenser - R454B | 230V

SAVE $622.00
Customer reviews
Rating:
4.6 out of 5
In Stock - 47 Ready to Ship
Free Shipping
By

MRCOOL

In stock
Model

DIY-36-HP-C-230D25-O

ID

198384

Was $3,110.00 Your Low Price Special Price $2,488.00

  • Easy DIY installation
  • Gold Fin Condenser
  • Includes features such as timer mode
  • AHRI certified
  • Wi-Fi Enabled
  • R-454B refrigerant
The 5th Generation MRCOOL DIY 36k BTU 18 SEER Ductless Heat Pump Single Zone Mini Split Condenser makes it easy to stay comfortable year-round. Designed for straightforward installation, this system requires no special tools or professional expertise, making it a great choice for spaces between 1,000-1,500 sq. ft. Installation is hassle-free thanks to the pre-charged 25-foot QuickConnect line set, which comes filled with R-454B refrigerant, eliminating the need for vacuuming. The DIYPRO cable adds extra durability, replacing traditional electrical conduit to safeguard against weather, animals, and yardwork damage. Multiple control options let you adjust settings with ease. Use the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. If you live near the coast, the Gold Fin Condenser offers excellent corrosion resistance, ensuring long-lasting performance. This system includes features that enhance both comfort and efficiency. The Timer function helps manage energy use, while Auto mode keeps your space at your preferred temperature without manual adjustments. After a power outage, the system automatically restores its previous settings. Plus, the anti-mildew function prevents excess condensation buildup inside the air handler. Designed for reliability, the 5th Generation MRCOOL DIY Mini Split comes with an industry-leading limited lifetime warranty, along with a 7-year compressor and 5-year parts warranty. With innovative technology, easy setup, and long-term dependability, this system delivers efficient climate control without the stress.
More Information
MRCOOL 36,000 BTU DIY 5th Generation Single Zone Mini Split Heat Pump Condenser - R454B | 230V
FeatureSpec
SKUDIY-36-HP-C-230D25-O
Refrigerant Charge6.86 lbs (Pre-Charged for 25ft Line Set)
Weight (in lbs)152.12
AHRI Certificate Number216032548
Brand/ManufacturerMRCOOL
UPC840255586986
Cooling BTU36,000 BTU
Heating BTU36,000 BTU
Decibel Level (dBA)60.5 dBA
Energy StarYes
RefrigerantR454B
HSPF28.5
SEER2 (Efficiency)18
EER28.5
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V | 1 Phase | 60Hz
Max Breaker Size35 Amps
Min. Breaker Size33 Amps
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-13°F - 75°F
Min/Max Outdoor Temp for Cooling-13°F - 122°F
Zone CompatibilitySingle Zone
Height31.89"
Width37.24"
Depth16.14"
Warranty7 Year Compressor / 5 Years Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Great unit
    Quality
    100%
    Service
    100%
    Price
    80%
    Replaced an older loud unit with this one for my shop and it works great. The auto fan speed function is perfect as it speeds up and slows down depending on conditions. When I test drive a car and pull back in shop of course you lose your cool air but then bring in a hot car and this unit will speed up and take care of business in a matter of a few minutes. We used to dread having to open shop door for any reason as it would take hours to cool it down again. Not anymore I highly recommend, especially to diy guys like myself. Installed in about 2hrs total.

    Review by

    Posted on

  2. Great unit
    Quality
    100%
    Service
    100%
    Price
    80%
    The outside unit is surprisingly quiet. Everything went together as expected.

    Review by

    Posted on
