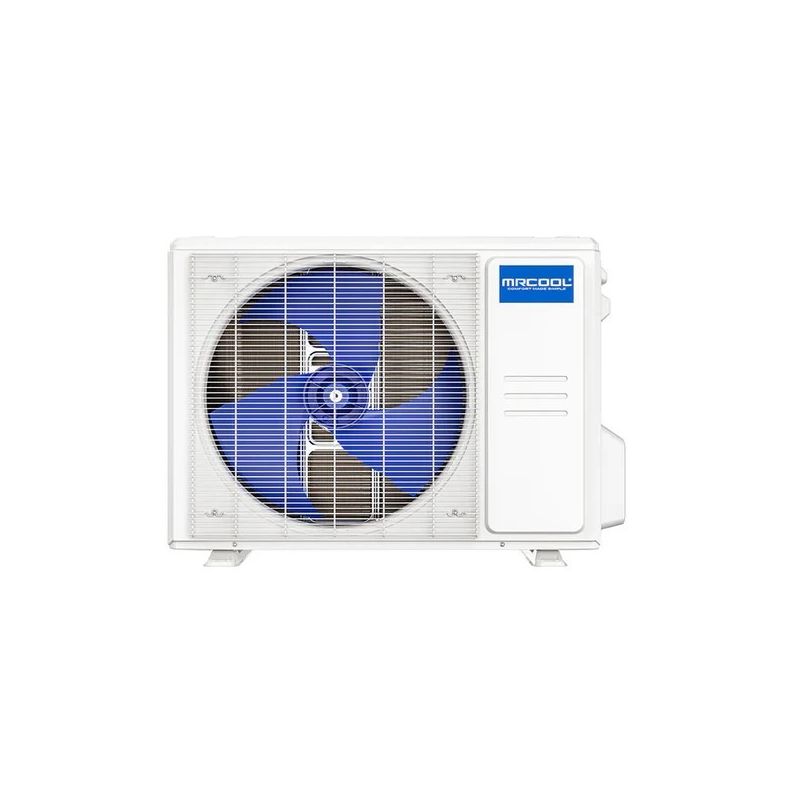

MRCOOL 9,000 BTU DIY 5th Generation Single Zone Mini Split Heat Pump Condenser - R454B | 115V

SAVE $396.00
In Stock - 11 Ready to Ship
Free Shipping
By

MRCOOL

In stock
Model

DIY-09-HP-C-115D25-O

ID

198388

Was $1,980.00 Your Low Price Special Price $1,584.00

  • Easy DIY installation
  • Gold Fin Condenser
  • Includes features such as timer mode
  • AHRI certified
  • Wi-Fi Enabled
  • R-454B refrigerant
Installing an HVAC system yourself might seem impossible, but the 5th Generation MRCOOL DIY 9k BTU 23.6 SEER2 Ductless Heat Pump Single Zone Mini-Split Condenser is designed for exactly that. With no special tools or experience required, this system can heat or cool spaces between up to 350 sq. ft. The pre-charged 25-foot QuickConnect line set makes installation safe, simple, and cost-effective. Pre-filled with R-454B refrigerant, it eliminates the need for vacuuming. The included DIYPRO cable replaces the need for electrical conduit, offering added durability against weather, animals, and yardwork tools. You can control the system using the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. For coastal homes, the Gold Fin Condenser provides superior corrosion resistance, ensuring long-lasting performance. This system offers multiple modes and features to enhance comfort and efficiency. The Timer function helps reduce energy use, while Auto mode maintains your set temperature effortlessly. After a power outage, the system automatically restores previous settings. The anti-mildew function prevents mold by reducing excess condensation in the air handler. Backed by an industry-leading warranty, the 5th Generation MRCOOL DIY 9k BTU 23.6 SEER2 Ductless Heat Pump Single Zone Mini-Split Condenser now includes a limited lifetime warranty, along with a 7-year compressor and 5-year parts warranty. With innovative technology, easy installation, and reliable performance, this system is built to deliver comfort and peace of mind.
More Information
MRCOOL 9,000 BTU DIY 5th Generation Single Zone Mini Split Heat Pump Condenser - R454B | 115V
FeatureSpec
SKUDIY-09-HP-C-115D25-O
Refrigerant Charge1.90 lbs (Pre-Charged for 25ft Line Set)
Weight (in lbs)83.11
AHRI Certificate Number216032543
Brand/ManufacturerMRCOOL
UPC840255586948
Cooling BTU9,000 BTU
Heating BTU10,000 BTU
Decibel Level (dBA)54 dBA
Energy StarYes
RefrigerantR454B
HSPF211.50
SEER2 (Efficiency)23.6
EER214
Liquid Line1/4"
Suction Line3/8"
Electrical115V | 1 Phase | 60Hz
Max Breaker Size20 Amps
Min. Breaker Size18 Amps
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-13°F - 75°F
Min/Max Outdoor Temp for Cooling-13°F - 122°F
Zone CompatibilitySingle Zone
Height21.85"
Width30.12"
Depth11.93"
Warranty7 Year Compressor / 5 Years Part Warranty with Online Registration
