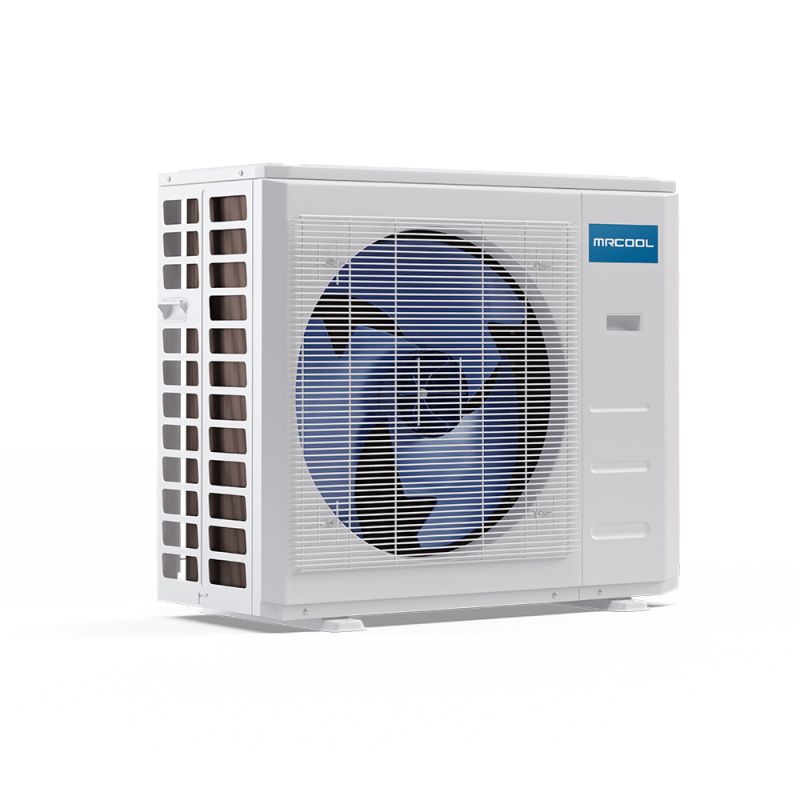

MRCOOL DIY 27,000 BTU Multi-Zone Heat Pump Condenser

By

MRCOOL

Model

DIY-MULTI3-27HP230

ID

79744

Availability: In Stock - Ready to Ship

Authorized MRCOOL Dealer

AHRI Certified

AHRI Number:205572571

Suggested Retail $2,125.00 Your Low Price Special Price $1,700.00

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

OVERVIEW

Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-MULTI3-27HP230 condenser for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-MULTI3-27HP230.

Please note that in order to function you must purchase MRCOOL precharged line sets for each indoor air handler, and other installation equipment, available at an additional cost.

FEATURES

  • 27,000 BTU multi zone DIY heat pump condenser
  • Direct-from-manufacturer customer technical support available for all MRCOOL DIY units
  • 100% sealed and pre-charged system when installed with the right accessories
  • Provides efficient heating down to -4°F
  • Provides efficient cooling down to 5°F
  • Energy Star certified
27,000 BTU

With a rated output of 27,000 BTU, the MRCOOL DIY-MULTI3-27HP230 condenser can easily handle as many as 3 indoor air handlers up to this rated capacity.

Warranty

MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.

A DIY Installation Built to Last

When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-MULTI3-27HP230 is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.

Product Specifications

More Information
MRCOOL DIY 27,000 BTU Multi-Zone Heat Pump Condenser
SKUDIY-MULTI3-27HP230
Weight (in lbs)145.000000
AHRI Certificate Number205572571
Brand/ManufacturerMRCOOL
Cooling BTU27,000 BTU
Heating BTU27,000 BTU
RefrigerantR410A
Electrical230 V. 1 Phase 60 Hz
BTU/Tonnage27,000 BTU/2.25 Ton
Mini-Split TypeWall Mounted
Height31-9/10"
Width37-1/4"
Depth16-1/5"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

Reviews

Write Your Own Review
You're reviewing:MRCOOL DIY 27,000 BTU Multi-Zone Heat Pump Condenser
Your Rating

Questions and Answers

Customer Questions
Attic installation
We would not recommend it. This is really a question to reach out to Mr Cool's design team directly. It's not a option of approved condenser loactions. Mr Cool can be reached at 270-366-0457.
What size breaker needed for compressor unit?
This unit has a minimum circuit ampacity of 21 and a max fuse of 35. The power supply is 208-230V/60Hz/1Ph. For more assistance, please give us a call at 1-888-376-7450.
Where are they manufactured?
MRCOOL is based out of Kentucky however most of their mini-splits are manufactured in China.
