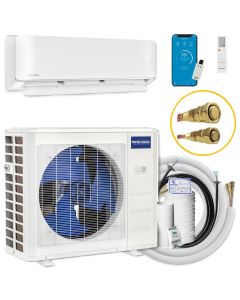

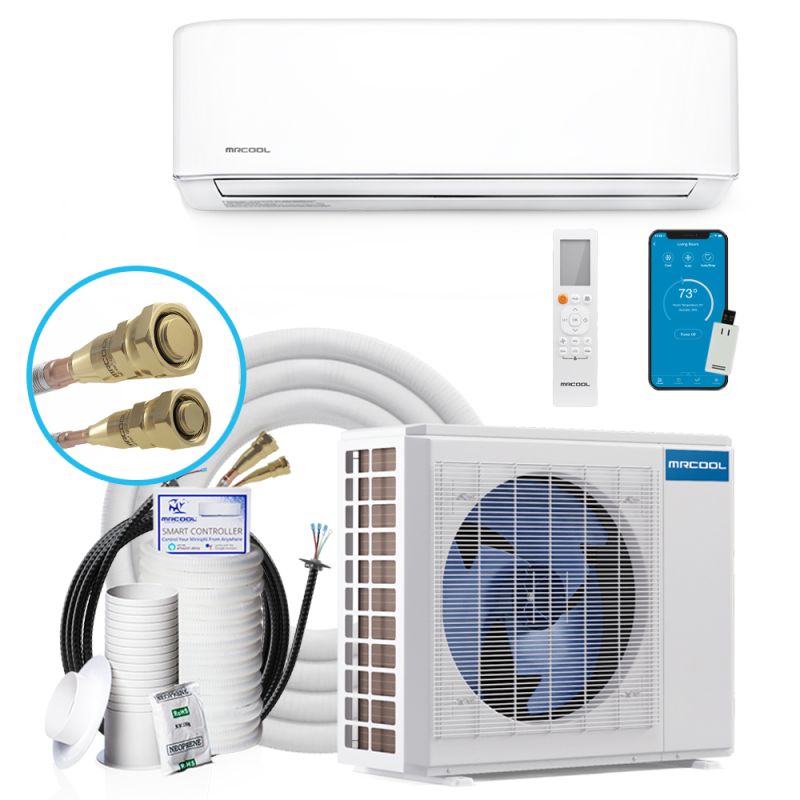

MRCOOL DIY 36,000 BTU 16 SEER Ductless Mini Split AC and Heat Pump with Wireless-Enabled Smart Controller

Skip to the end of the images gallery

SAVE $299.06

Skip to the beginning of the images gallery

MRCOOL

In stock

Model

DIY-36-HP-C-230C25 / DIY-36-HP-WMAH-230C25

22045

Rating:

700% of 100

(7) Write a Review

8 Questions Answered

Availability: In Stock - Ready to Ship

Authorized MRCOOL Dealer

AHRI Number:208552793

Suggested Retail $3,187.06 Your Low Price Special Price $2,888.00

Brand/Manufacturer

BTU/Tonnage

Mini Split Type

SEER (Efficiency)

Do-It-Yourself Installation
Heating & Cooling
Ductless Solution
Perfect for a 1,500-2,00 sq ft Room
Single Zone/Room Condenser
Wi-Fi & Smartphone App Capabilities

Free Shipping

Accessories for this product

Description

Do you want a powerful and efficient heating and cooling system that is easy to install? Then the ideal product for you is the new MRCOOL 3rd gen DIY ductless mini split heat pump with enhanced WiFi. Designed to make setup quick and easy, the MRCOOL DIY is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment. The 36,000 BTU unit is 16 SEER and designed to efficiently heat and cool a single 1500 Sq. Ft. room. The new SmartHVAC app is compatible with Amazon Alexa and Google Assistant. You can control your DIY anywhere with your Apple or Android smart device and an Internet connection. When it comes to doing it yourself, the MRCOOL DIY is your best option. This unit is shipped in two boxes.

Features

SmartHVAC app with WiFi control - compatible with Amazon Alexa and Google Assistant; control your DIY anywhere with your Apple or Android smart device and an Internet connection
Easy DIY installation: pre-charged R-410A 25 ft quick connect line; no special tools, equipment, or training required
Precharged 25 ft Quick Connect Line sets for easy setup
Variable-speed DC inverter compressor technology for energy efficiency
Low ambient cooling down to 5°F, ideal for year-round applications like server rooms and greenhouses
Leakage detection alerts for low coolant to prevent compressor damage
Auto restart after a power outage
Corrosion-resistant gold fin condenser, suitable for coastal environments
Sleep mode to maximize comfort during night sleep with gradual temperature adjustments
7-year compressor warranty and 5-year parts warranty
Follow Me feature: keeps temperature near the remote’s location for enhanced comfort
Auto mode adjusts between cooling and heating as needed
Dehumidifying operation in DRY mode to reduce room humidity
Louver position memory recalls last horizontal louver position
Four-speed oscillation
Remote included

Advantages

Two-way drainage connections for flexible installation
Easy installation, unlike other ductless heat pumps
Quick electrical connections for convenience
Temperature compensation technology ensures comfort in all weather conditions
Refrigerant leakage detection for efficient operation
Precharged line sets simplify amateur installation

Product Specifications

More Information
MRCOOL DIY 36,000 BTU 16 SEER Ductless Mini Split AC and Heat Pump with Wireless-Enabled Smart Controller
SKU	DIY-36-HP-C-230C25 / DIY-36-HP-WMAH-230C25
Refrigerant Charge	119.9
Weight (in lbs)	252.430000
AHRI Certificate Number	208552793
Brand/Manufacturer	MRCOOL
Product Features	Quick Connect, WiFi
Additional Information	install this innovative ductless system easily
Additional Information	The system constantly monitors interior air temperature
Additional Information	Precharged 410 Quick Connect Line sets.
Additional Information	Sleep Mode easy to program to save money
Additional Information	Horizontal louver will automatically keep the last position
Cooling BTU	36,000 BTU
Heating BTU	36,000 BTU
Decibel Level (dBA)	52
Energy Star	No
Refrigerant	R410A
SEER1 (Efficiency)	18
SEER2 (Efficiency)	18
EER	8.7
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	35 Amps
Min. Breaker Size	28 Amps
BTU/Tonnage	36,000 BTU/3 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	Indoor Unit: 14.25" \| Outdoor Unit: 31.89"
Width	Indoor Unit: 49.57" \| Outdoor Unit: 37.24"
Depth	Indoor Unit: 11.10" \| Outdoor Unit:16.14"
Additional Info	Indoor Unit Weight: 41.01 lbs \| Outdoor Unit Weight: 150.35 lbs
Warranty	7 Years Compressor and 5 Years Parts Limited Warranty with Online Registration
Resources	Brochure Installation Manual Specification Sheet Owner Manual Remote Manual Technical Manual Service Manual Warranty AHRI Cert Energy Guide You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews 7

Questions and Answers

Customer Questions

I am interested in the DIY-36-HP-230B25 unit, but I need more than 25' of line set. What are my options?

We have options available for installations requiring line sets longer than 25 feet, but installing the longer line set is not as simple as installing the standard 25 foot line. Give us a call and our professionals will go over each potential option and guide you in the right direction.

Can I buy a shorter lineset

25 ft is the shortest line set size offered for these units because of the lines being precharged.

Does the power from the indoor unit come from the outdoor unit or does it need an additional power source?

The indoor air handler unit is powered by the outdoor condenser. For more assistance, please give us a call at 1-888-377-2850.

Good for a garage?

Yes, MRCOOL DIY ductless mini splits are an excellent solution for heating and cooling a garage. This system is easy to install and efficient to run. To determine if 36,000 BTU is the right size for your garage, a good rule of thumb is that 36,000 BTU will usually cover up to about 1,800 sq. ft. However, the climate zone, number of windows and insulation quality can affect this number. For instance, a garage in a severely cold or hot climate zone, with 10 windows and poor insulation will need a higher BTU output than a garage in a temperate climate zone with two windows and quality insulation. For more information on sizing, please reference our Sizing Guide.

Does it come with the drain line or do I have to add it? Can I use 1" PVC for the drain line?

A drain line will be required for the indoor unit to transport condensation away from the unit. This condensate drain line is not included with this system, but can be purchased additionally as an accessory. You will need a drain line that is specifically designed for this purpose and unit. The condensate drain line is usually installed so that the equipment can be gravity drained right out of the back or the sides. However, if the condensate drain goes up against gravity a condensate pump is required to pump the condensation up and away until it reaches a drain or gravity takes over. Both the condensate drain line and the condensate pump can be found on the product page beside the product description. For further assistance, please give us a call.

What is seer?

All air conditioning and heat pump efficiency is measured by SEER. SEER stands for Seasonal Energy Efficiency Ratio. The higher the SEER rating, the more efficient your AC or heat pump system is and the less energy it consumes. If you have further questions, please gives us a call.

I have a very well insulated 2400sf shop can I use two of these to cool and heat it? Or what do you recommend?

Yes, two of these units would be a great solution for heating and cooling a 2,400 square foot work shop. If you have any further questions please feel free to give us a call! Thanks.

When you buy this unit does it come complete are do you need additional things to install

Yes, this MRCOOL DIY mini split system comes with all of the equipment necessary for installation. This allows you to install the unit yourself, with the only exception being the electrical work being done by a certified electrician. If you have any further questions please feel free to give us a call! Thanks.
