Today's Hours 8am - 11pm estMRCOOL 9,000 BTU DIY 5th Gen Easy Pro 20.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System w/ 16' Line Set – R454B | 115V
Required Fields *
By
MRCOOL
In stock
Model
EZPRO-09-HP-11516D-O
ID
198408
Was $2,413.85
Your Low Price $1,569.00
- Do-It-Yourself Installation
- Heating & Cooling
- Ductless Solution
- Perfect for a 250-400sq ft Room
- Wi-Fi & Smartphone App Capabilities
- Includes 16ft Line Set
People also viewed:
9,000 BTU Stealth DIYCOOL 20.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System w/ 16' Line Set– R454B | 115V
Was $2,246.14
Special Price $1,357.79
12,000 BTU Stealth DIYCOOL 19.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System w/ 16' Line Set– R454B | 115V
Was $2,369.22
Special Price $1,432.19
18,000 BTU Stealth DIYCOOL 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System w/ 16' Line Set– R454B | 230V
Was $2,842.59
Special Price $1,705.00
24,000 BTU Stealth DIYCOOL 18.9 SEER2 Single Zone Wall Mount Mini Split Heat Pump System w/ 16' Line Set– R454B | 230V
Was $3,153.83
Special Price $1,906.49

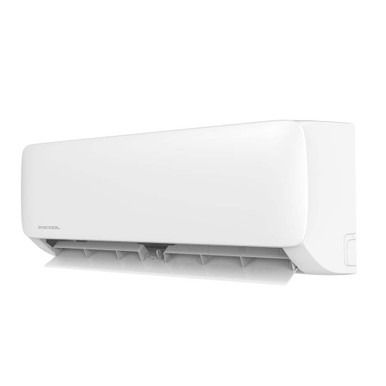

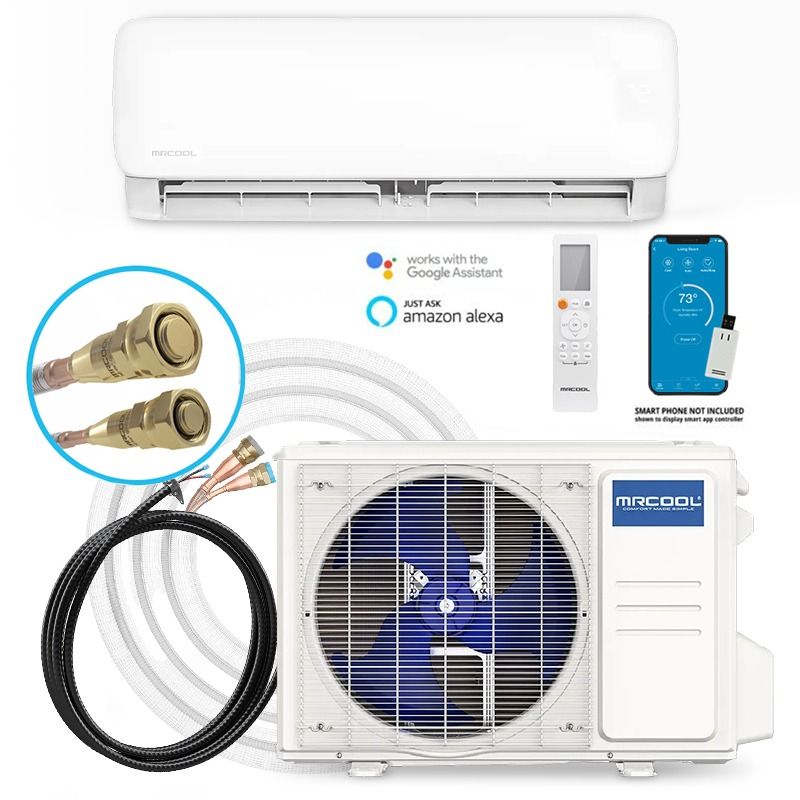

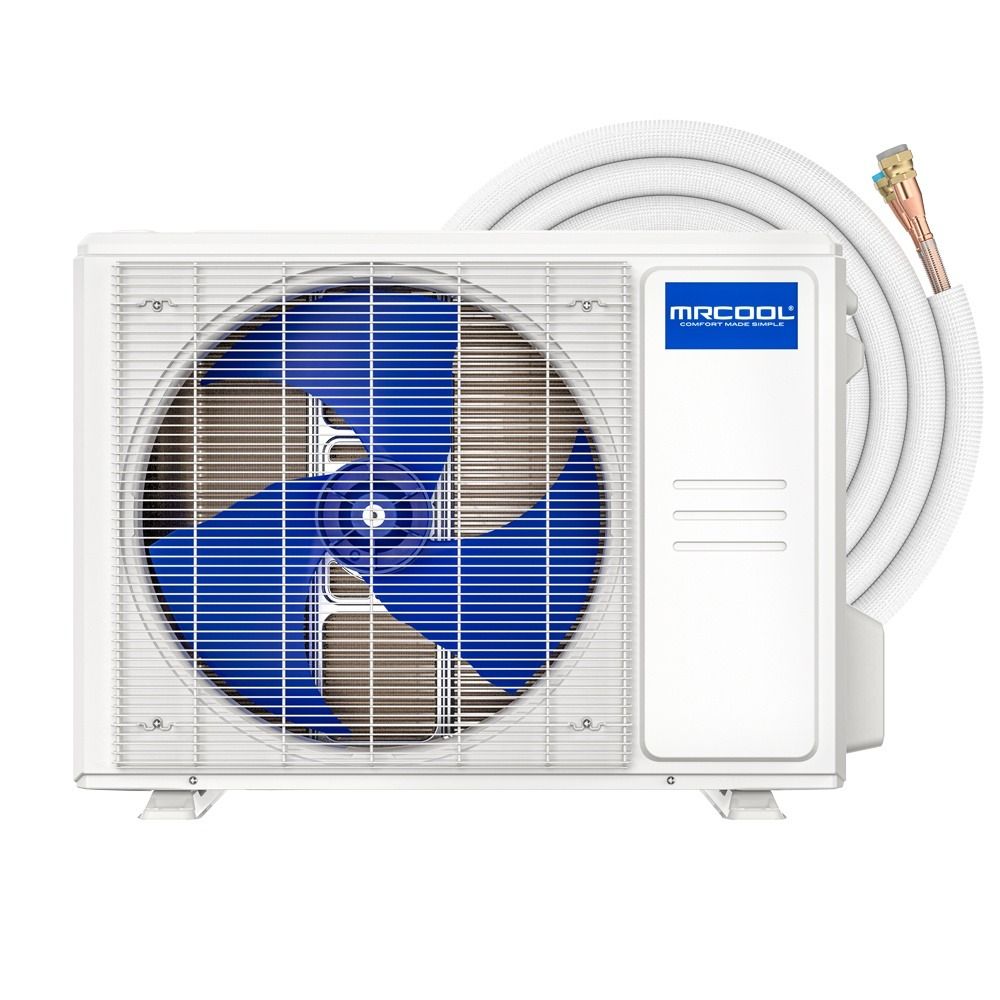

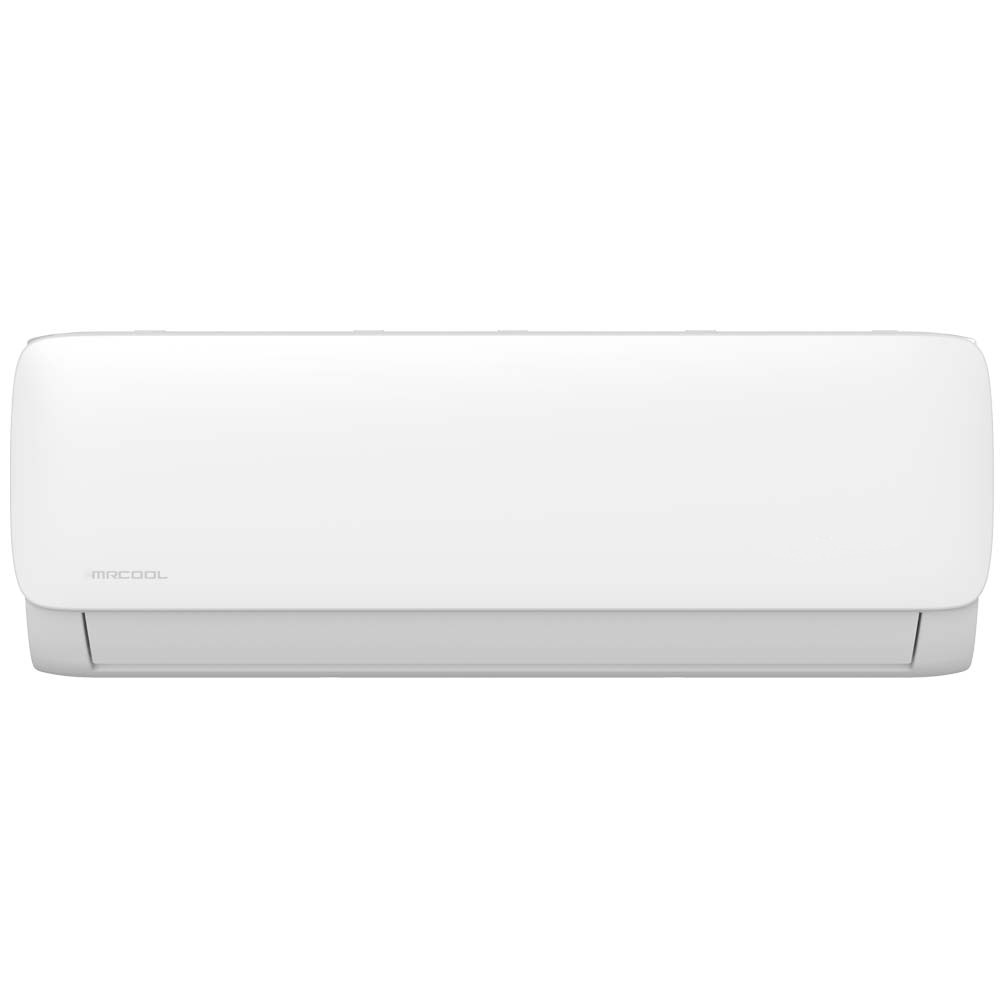

MRCOOL DIY 5th Gen Easy Pro 9K BTU Ductless Mini Split Heat Pump Complete System with 16ft Line Set 115V (Model: EZPRO-09-HP-11516D-O)
The MRCOOL DIY 5th Gen Easy Pro 9K BTU Ductless Mini Split Heat Pump System is a versatile and energy-efficient solution for heating and cooling spaces up to 400 square feet. Designed for easy installation without professional assistance, this system combines advanced features with user-friendly operation.
Key Features
- DIY Installation: Includes a 16-foot pre-charged Fast Connection® line set, allowing for quick and easy setup without special tools or equipment.
- Smart Controls: Equipped with the SmartHVAC WiFi Control Module, compatible with Amazon Alexa and Google Assistant, enabling remote operation via smartphone or voice commands.
- Energy Efficiency: Achieves a SEER2 rating of 20.2 and HSPF2-4 of 9.2, ensuring cost-effective performance year-round.
- Quiet Operation: Indoor unit operates as low as 18 dB(A), providing a peaceful environment.
- Durable Design: Features a Gold Fin® condenser coating for corrosion resistance, ideal for coastal and high-humidity areas.
- Low Ambient Cooling: Capable of cooling in outdoor temperatures as low as 5°F, suitable for server rooms and greenhouses.
- Additional Features: Includes Follow Me® function, Sleep Mode, Auto Mode, Timer Mode, and refrigerant leakage detection for enhanced comfort and safety.
Specifications
- Cooling Capacity: 9,000 BTU
- Heating Capacity: 10,000 BTU
- SEER2: 20.2
- HSPF2-4: 9.2
- Voltage: 115V, 1 Phase, 60 Hz
- Max Fuse Breaker: 20 A
- Min Circuit Ampacity: 17 A
- Refrigerant Type: R-454B
- Refrigerant Volume: 24.69 oz
- Indoor Noise Level: 18–43 dB(A)
- Outdoor Noise Level: 54 dB(A)
- Line Set Length: 16 ft (included), Max Length: 82 ft
- Liquid Line Size: 1/4 in
- Suction Line Size: 1/2 in
- Compressor Type: Rotary
- Indoor Unit Dimensions (W x D x H): 28.70 in x 7.87 in x 11.50 in
- Indoor Unit Weight: 17.64 lbs
- Outdoor Unit Dimensions (W x D x H): 28.35 in x 10.63 in x 19.49 in
- Outdoor Unit Weight: 54.45 lbs
Warranty
- Parts Warranty: 2 Years
- Compressor Warranty: 1 Year
The MRCOOL DIY 5th Gen Easy Pro 9K BTU Ductless Mini Split Heat Pump System offers a reliable and efficient solution for maintaining comfortable indoor temperatures, with the added convenience of easy installation and smart control features.
Top reviews
- Lacks longevityI bought one of these three years ago. Installed it myself, had an electrician hook up the electric. It was easy enough to install but I still had to exchange several emails with a technician because the valves needed tightened beyond the manual's description. Two and a half years later, the unit stopped functioning. $712 later, I had it recharged using dye to look for leaks. There are three in the inside wall unit. The HVAC people want to charge $2500 to replace the unit and set lines. Three leaks in the wall unit after three years...not a good look for MrCool...
Posted on
Customer Questions
Why Choose MRCOOL?
MRCOOL mini split systems combine innovative design with advanced manufacturing to deliver efficient, reliable comfort wherever you need it. Built with cutting-edge technology, these systems ensure optimal performance and flexibility for any space.
