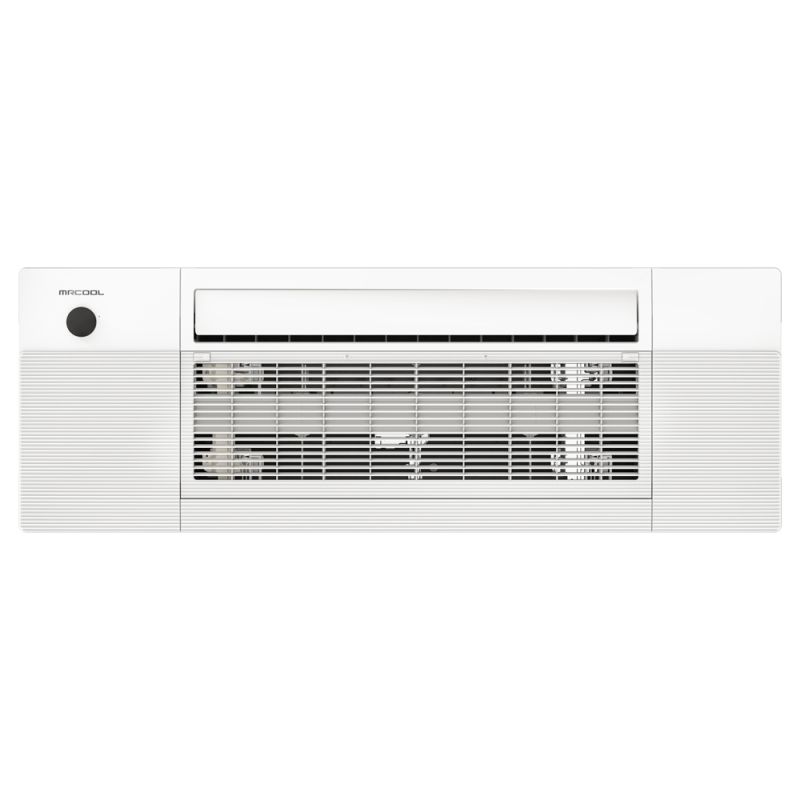

MRCOOL DIY 9,000 BTU Multi-Zone Ceiling Cassette Air Handler

By

MRCOOL

In stock
Model

DIYCASSETTE09HP-230C25

ID

132536

Availability: Limited Stock - Call for Availability

Authorized MRCOOL Dealer

Suggested Retail $1,384.71 Your Low Price Special Price $1,177.00

  • Do-It-Yourself Installation
  • Heating & Cooling
  • Ductless Solution
  • Multi-Zone Air Handler
  • Perfect for a 250-400 sq ft room
  • Wi-Fi & Smartphone App Capabilities
Accessories for this product
Customer Reviews
BBB Rating
Best Pricing

Description

The MRCOOL® DIY® Series 9k BTU Ceiling Cassette is perfect for any space and provide discreet and out of sight heating and cooling. It is available in multi-zone options and is easy to install, fitting between 16” ceiling joists. The cassette is designed to work with both current and future joist standards and can be recessed between all types of joists on 16 inch center, including pre-manufactured I-joists. Other ceiling cassettes have strict installation requirements in less ideal locations, but the MrCool® cassette doesn't require ductwork or wall space and is perfect for new constructions or retrofits. The cassette works with the MrCool® DIY® Quick Connect® line set which makes installation even easier since it is precharged with refrigerant, eliminating the need for vacuuming. The No-Vac® Coupler can be used to increase length. With advanced filtration, each cassette offers an Elevation function that lowers the filter panel for easy filter maintenance. Not only does this cassette feature quiet operation and multiple operating modes, but also provided is a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty, so you can feel confident in your investment.


Features:

  • Equipment should be installed by a qualified professional
  • 7 year compressor warranty and 5 year parts warranty
  • One House, One Solution. Multi-zone technology gives you flexibility and control whenever and wherever you want it.
  • R-410A environmentally friendly refrigerant
  • Sleep mode, louver position memory, gold fin anti-corrosion and auto restart functions

Product Specifications

More Information
MRCOOL DIY 9,000 BTU Multi-Zone Ceiling Cassette Air Handler
SKUDIYCASSETTE09HP-230C25
Weight (in lbs)23.800000
Brand/ManufacturerMRCOOL
Cooling BTU9000 BTU
Heating BTU9000 BTU
Decibel Level (dBA)42
RefrigerantR410A
Liquid Line1/4 in
Suction Line1/2 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15
Min. Breaker Size3
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeCeiling Cassette
Height8.98"
Width50.31"
Depth13.9"
Warranty5-year Parts/7-year Compressor/1-year Remote
